Zebra ZM400 Installation Instructions

Peel/Rewind Upgrade
Install the New Peel Assembly
16
79835L-001 B ZM400/ZM600 Installation Instruction 7/30/07
3. See Figure 15. Install the peel assembly with the pems to the rear and the opening in the
mounting slot to the top.
a. Insert the mounting slot opening over the two screws and lift up on the assembly.
b. Push the assembly back against the vertical surface of the platen assembly then down
so that the pems are resting on the horizontal surface of the platen housing.
4. Maintain a slight pressure downward on the peel assembly to keep the pems on the
horizontal surface, and tighten the mounting screws.

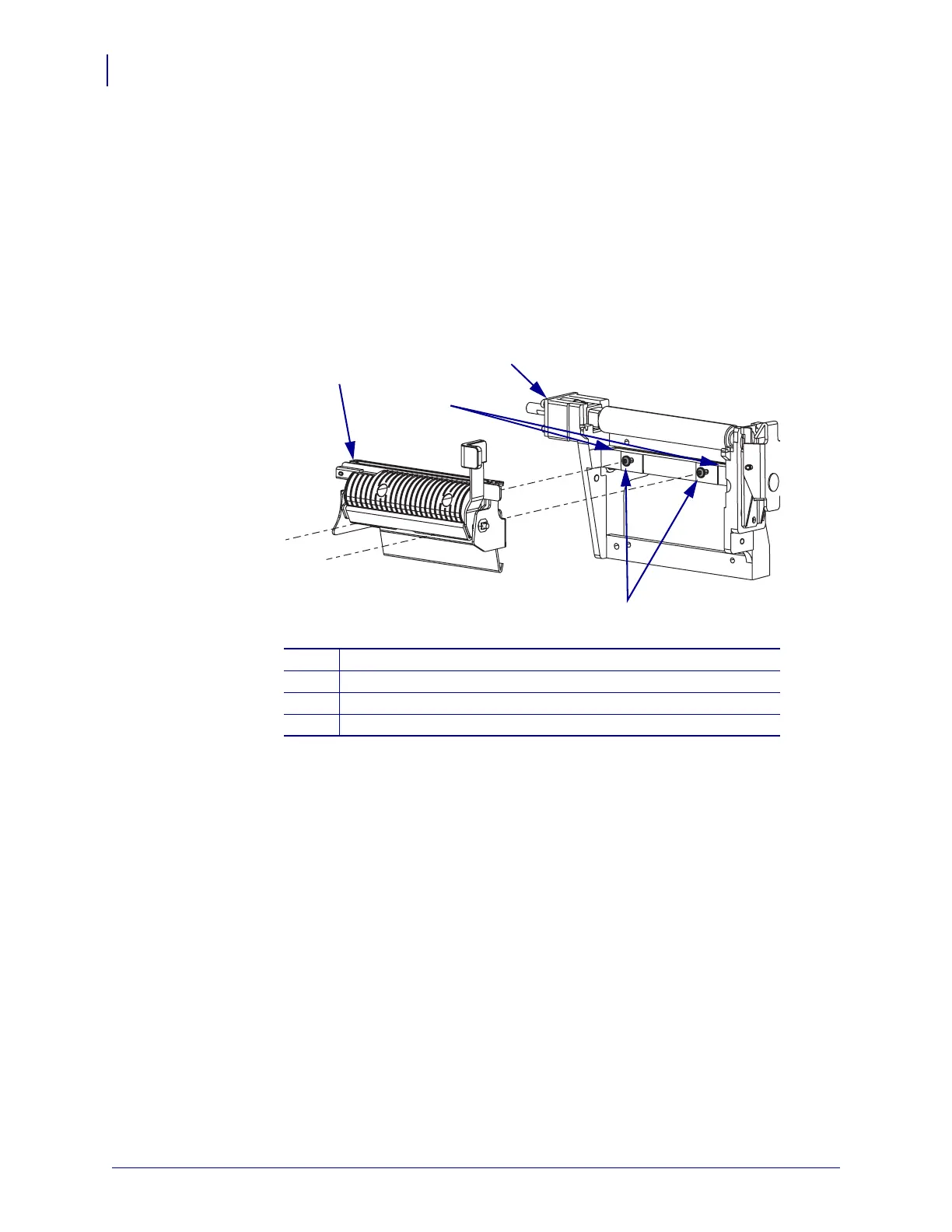

Figure 15 • Install the New Peel Assembly
1
Peel assembly
2
Platen housing
3
Mounting screws (2)
4
Rest pems here.
1
2
3
4
