11
Peel/Rewind Upgrade
Install the Rewind Spindle Assembly
7/30/07 ZM400/ZM600 Installation Instruction 79835L-001 B

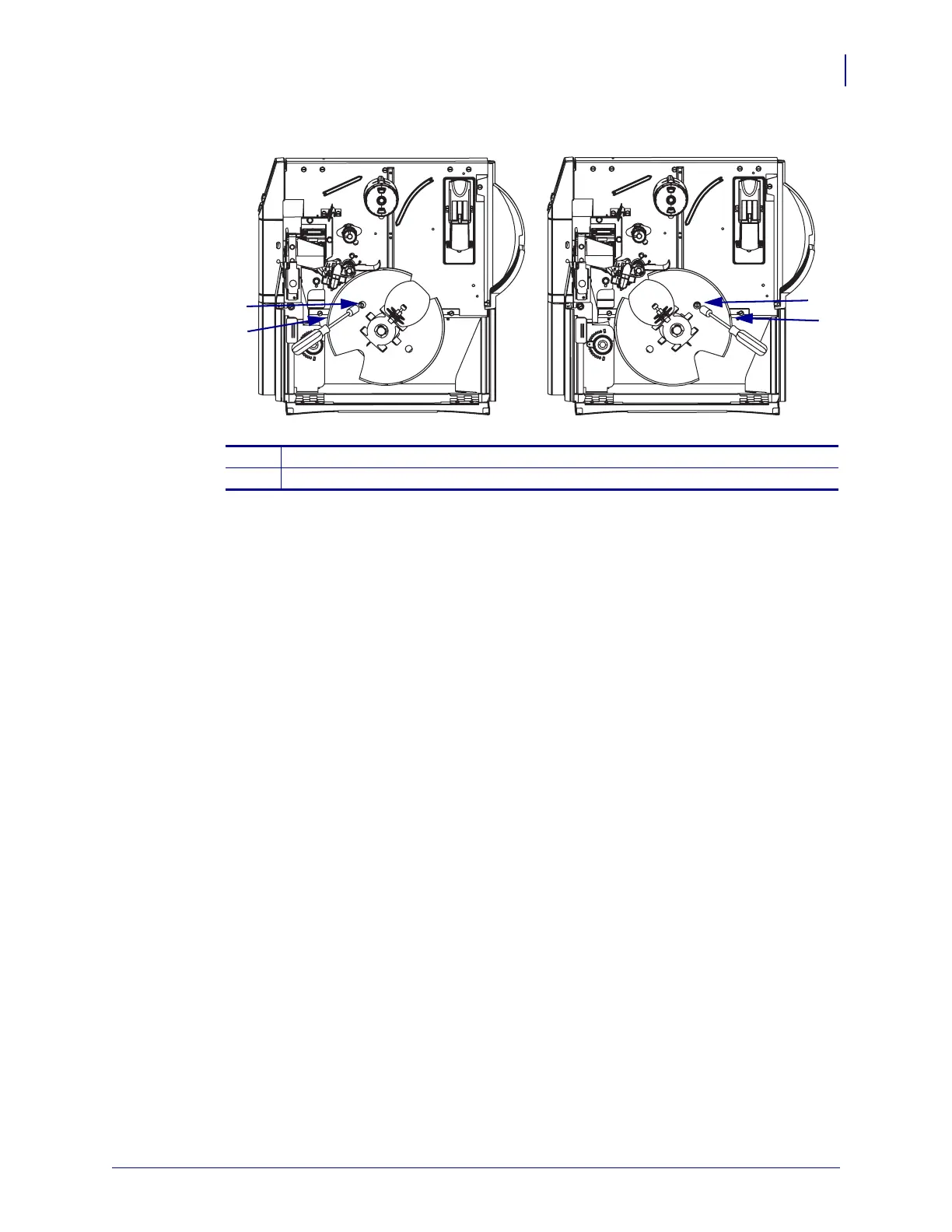

Figure 10 • Install the Motor and Spindle Assembly
6. Align the other access hole of the rewind back plate to the other mounting hole on the
rewind support plate.
7. Install the mounting screw and tighten.
8. Tighten the screw installed in step 5.
1
Access hole
2
Rewind back plate
1
1
2
2
To Next Page
