zebris Medical GmbH
FDM Technical Data and Operating Instructions
Page 15/54
Type
FDM-3
REF.-No.
01243030

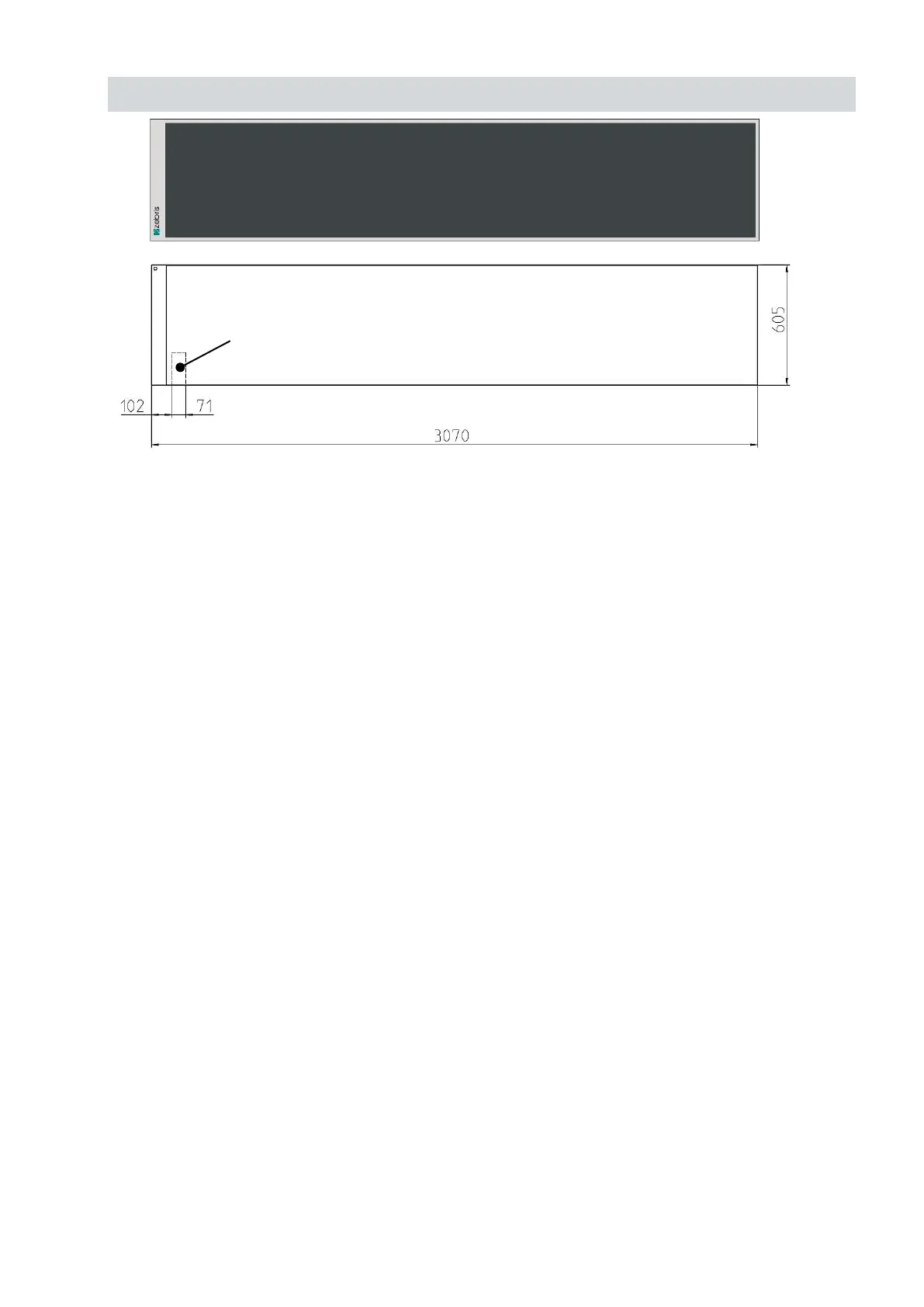

Outer dimensions
3070 x 605 x 21 mm (L x W x H)
Weight
approx. 35 kg
Measuring frequency
100 Hz
Number of sensors
64 x 352 / 22528
Sensor surface
2980 x 560 mm (L x W)
Resolution
1/3 “ resp. 1,4 sensors / cm²
Infrared interface
integrated
Connector box
at bottom side
