3.6.4 Infrared synchronization with zebris DAB- Bluetooth (EMG)
For synchronizing the FDM system with the zebris DAB-Bluetooth the optionally available
IR interface which will be integrated within the platform housing is required.
FDM platform and DAB-Bluetooth are synchronized automatically as soon as both devices
have been switched on and a measurement is started.

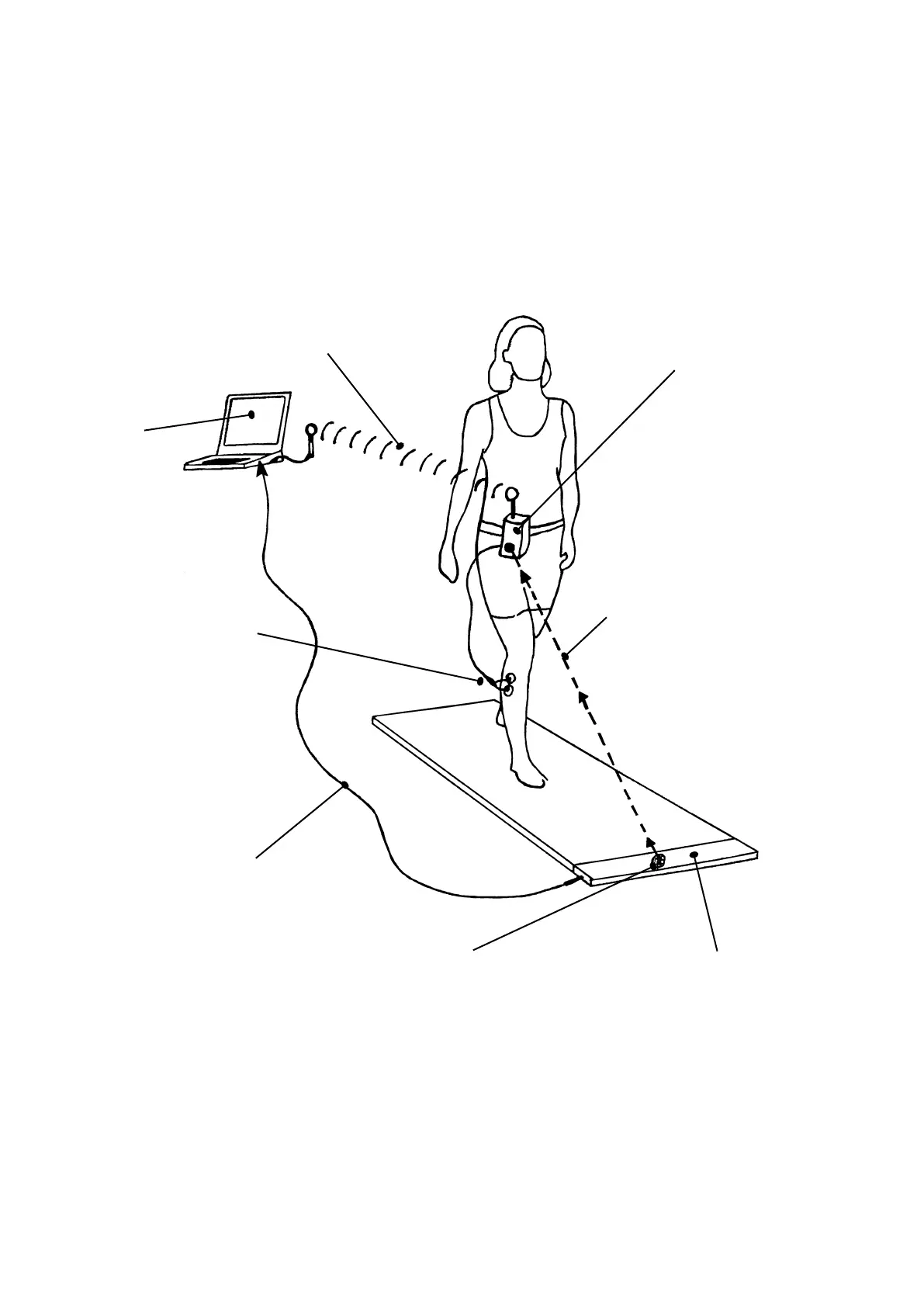

The following schematic diagram shows the interconnection of the FDM-platform and
the zebris DAB-Bluetooth.
FDM-Plattform
USB-interface
Infrared synchronization signal
DAB-Bluetooth
(Infrarotempfänger)
EMG-electrodes
PC
Transmission oft he EMG
signals via Bluetooth in-
terface
Infrared transmitter
