FDM Technical Data and Operating Instructions
3.6.3 Synchronizing the FDM Platform with video data (Sync Audio)

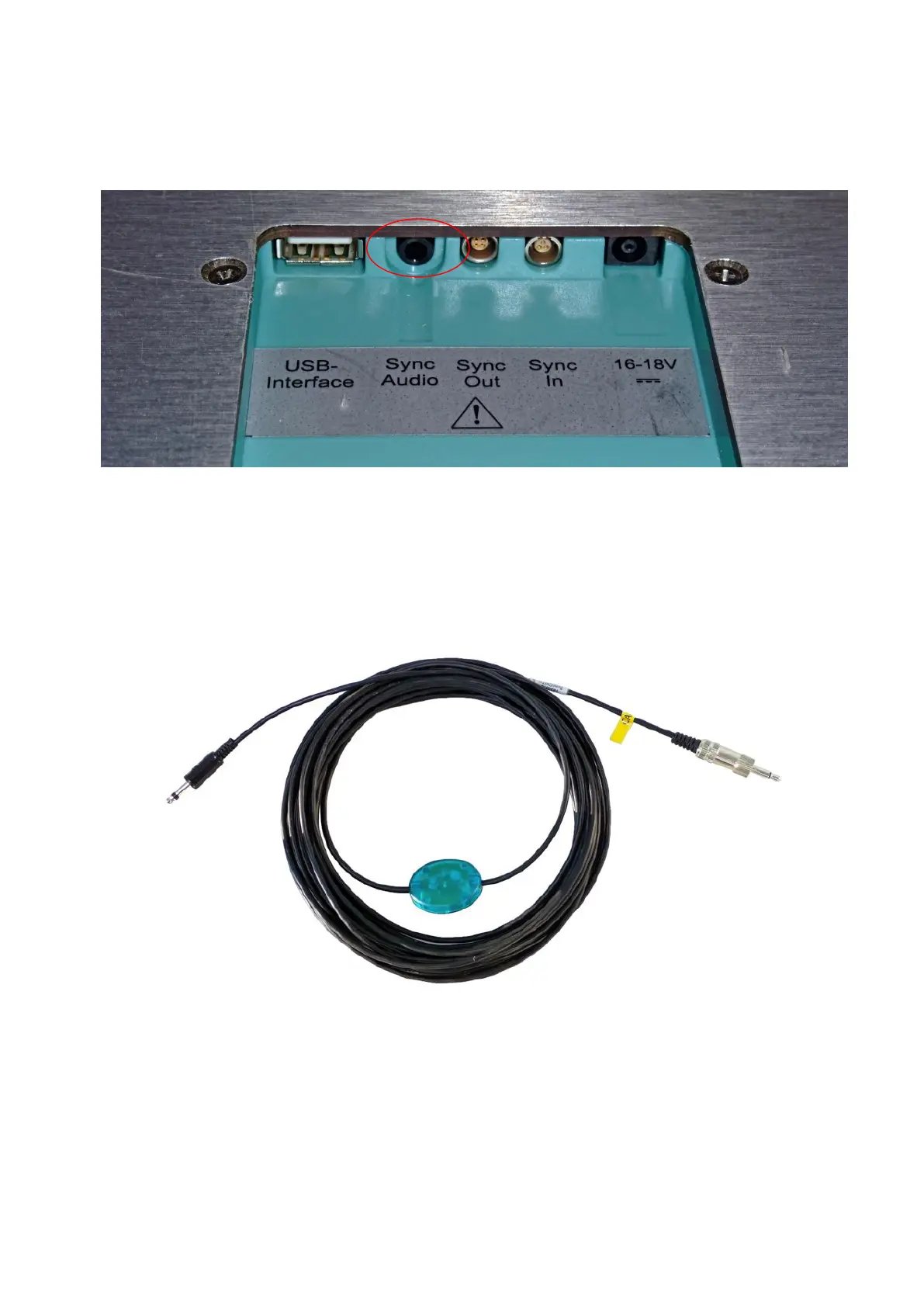

The Sync-Audio socket serves for synchronizing the platform measurement and recordings
of commercially available video cameras utilizing the external microphone input of the cam-
era.
The synchronization is effected by imprinting a tact signal on the soundtrack of the video
recording. This data is evaluated automatically by the application software WinFDM for syn-
chronizing the platform data and the video signal.
For the connection to the video camera the following synchronization cable is required:
Item No. 01830016 / Video Sync-Control cable,
cable length 7m with amplifier and control LED.
