4.3.2 SYNCLight plus
The SYNCLight plus supports the zebris VIDEOSYNC as well as more complex synchroni-
zation modes that may be required for use of industrial cameras.
In order to use the synchronization modes set the SYNC-Mode switch to position SYNC.
At position CONT the SYNCLight plus is switched on permanently. The DIMMER can be
used to adjust the light brightness individually no matter which operation mode is set.
Up to 3 SYNCLight plus can be combined into a lighting unit. Therefore they have to be
connected with an adapter cable. The adapter cable provides power supply as well as trans-
mission for the synchronization signals.
Technical Specifications
REF-No. 01540120
Dimensions / Weight 155 x 210 x 38mm (L x W x H) / approx. 640g
Power Supply 24V DC / 36W
Light Colour / Light Current 6200K / 1550 Lumen
Synchronization VIDEO SYNC  On-/Off with force measurement
PULSE SYNC  Shutter Sync. with industrial cameras
SYNC IN  Standard zebris synchronization
(Compatible with SYNC IN/OUT platform)
Mounting ¼ Inch tripod thread at back side
Master – Slave Operation off max. 3 SYNCLight plus by adapter cable 185.0011/SL-C1
Interpretation of the STATUS-LED
Green Device is ready for use or in operation.
Orange The orange colour indicates when the maximum operation temperature has
been reached. At this point the operation current is reduced automatically
(which results in reduced brightness) in order to prevent the
SYNCLight plus from being damaged by excessive heat.

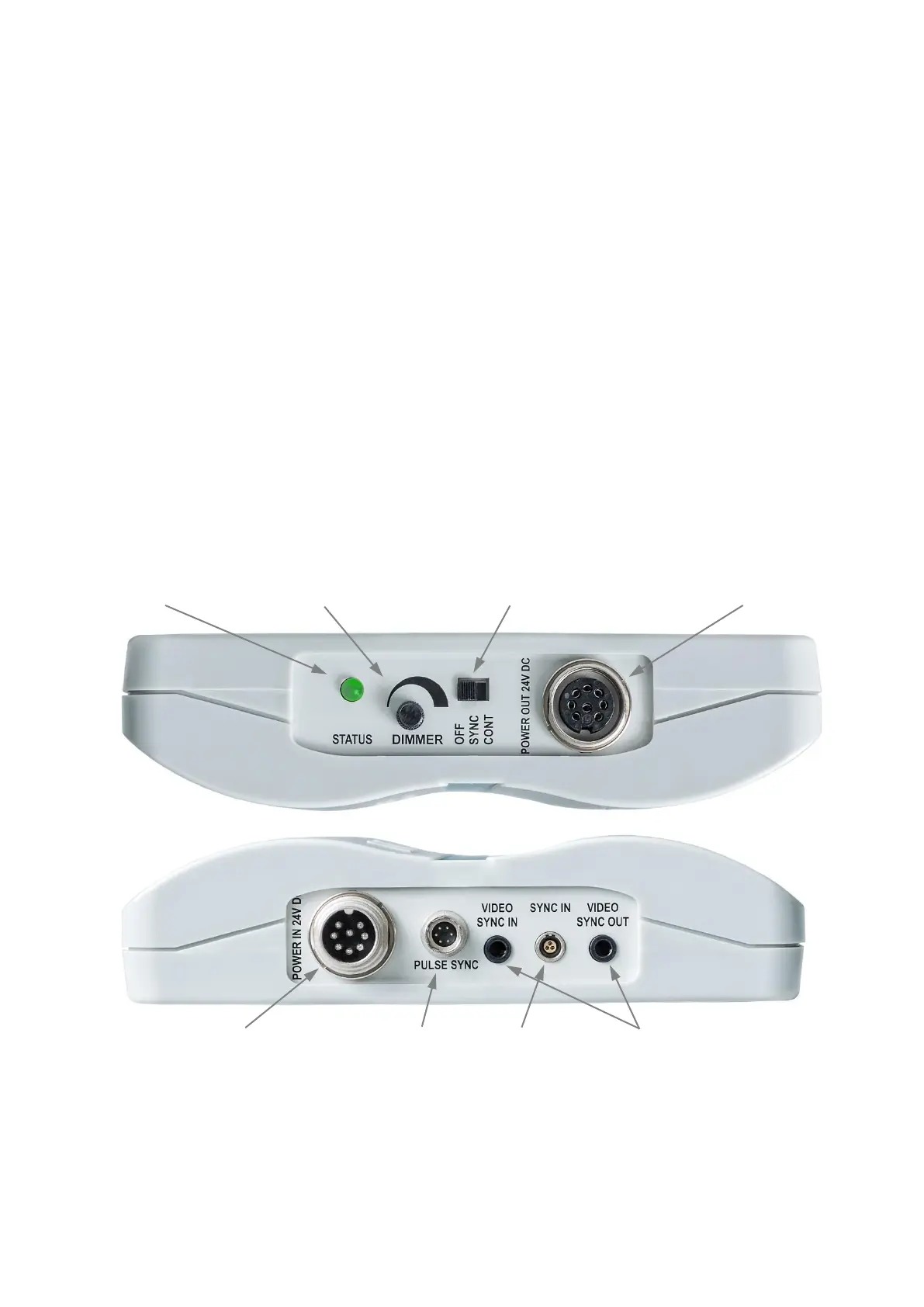

Brightness-
Adjustment
SYNC Mode-
Switch
VIDEO SYNC
Sockets (3mm Phone Jack)
Power-OUT
Buchse
PULSE SYNC
(Industrial Camera)
Power-
Supply
Status-
LED
zebris
SYNC IN
