FDM Technical Data and Operating Instructions
4 Video-Module
4.1 SYNCCam

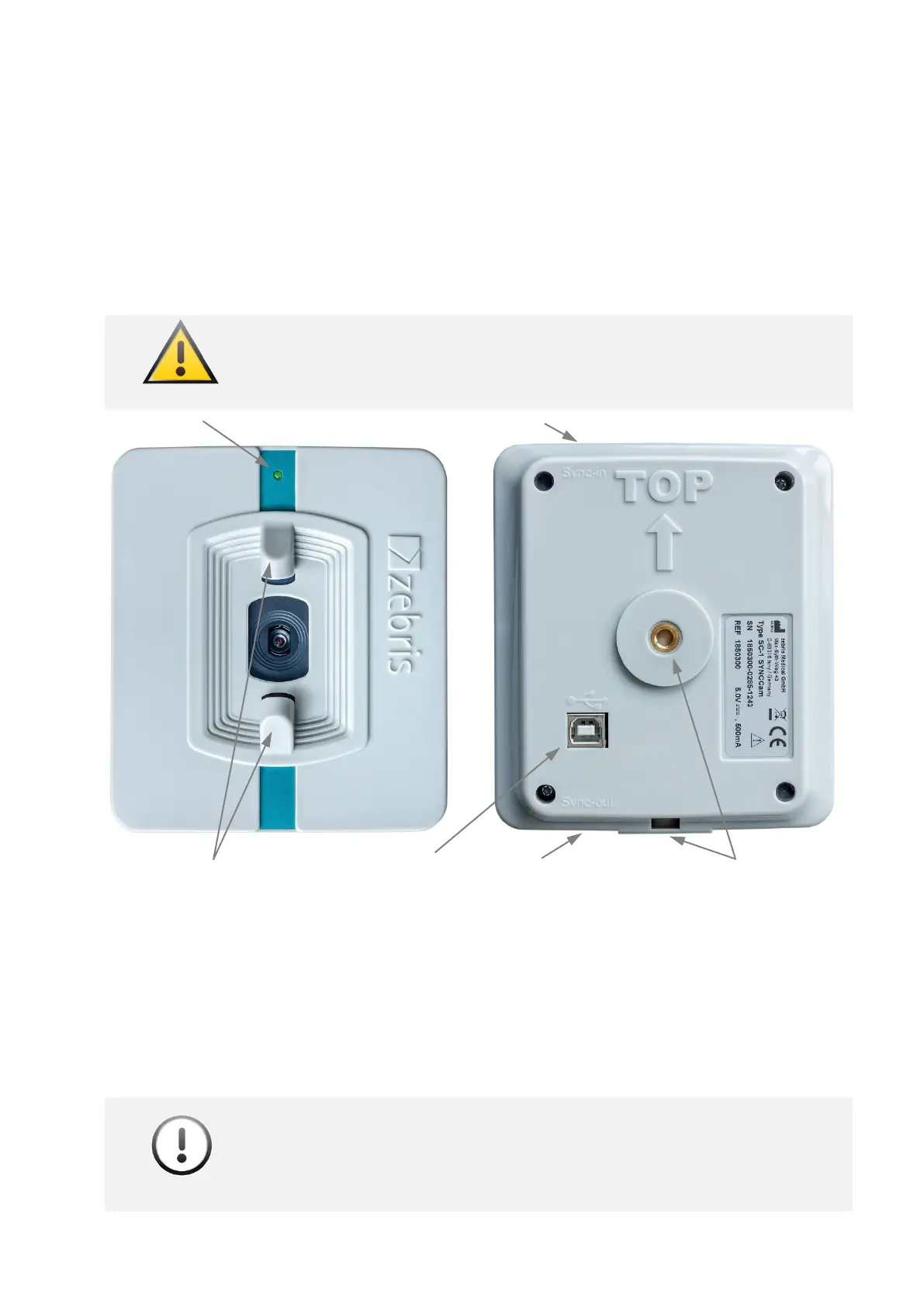

The SYNCCam is an accessory of the FDM-T system and perfectly adapted to be used in
combination with the force distribution measurement. All adjustments of the camera are car-
ried out via hardware setup integrated to the zebris FDM Software. The camera is connected
to the PC by a USB cable of type A-B included within the shipment.
The camera is equipped with ¼ inch tripod threads and can be adapted to zebris tripods as
wells as commercially available camera tripods.
The Sync-LEDs are flashing when the camera is disconnected from
the USB port. Therefore it is strongly advised not to look directly into
the camera when it is disconnected in order to avoid dazzling.
Technical Specifications
REF-No. 01540190
Dimensions 110 x 125 x 15mm (L x W x H)
Weight approx. 190g
Power Supply USB (5V DC / 500mA)
Resolution 1920 x 1080 Pixel (Full-HD) / Autofocus
Frame Rate 30Hz
Synchronization LED-Flash triggered by Sync-IN socket
Mounting ¼ Inch tripod-thread at bottom and back side
In order to maintain undisturbed transmission of the video signal it is
mandatory to use high quality USB cables.
Please, only use cables supplied or recommended by zebris for con-
necting SYNCCam and PC.
