Carl Zeiss Connecting to power Axio Imager
54 430000-7344-001 M70-2-0020 e 06/2009
3.27 Connecting to power
3.27.1 Manual stand
• Plug the power cable first into the power
connector (
3-33/1) of the microscope and then
into a power outlet. The microscope can be
connected to a line voltage of 100 to 127 V or
200 to 240 VAC, 50/60 Hz. The power unit is
set automatically to the line voltage available.
3.27.2 Motorized stand
• Plug connecting plug (3-34/2) of power supply
VP232-2 (
3-34/3) into the corresponding
connector (
3-34/1) on the rear side of the
stand.
• Plug the power cable first into the power
connector (
3-34/4) of the power supply
VP232-2 and then into a power outlet. The
power supply can be connected to a line
voltage of 100 … 240 VAC, 50/60 Hz. The
power unit is set automatically to the line
voltage available.

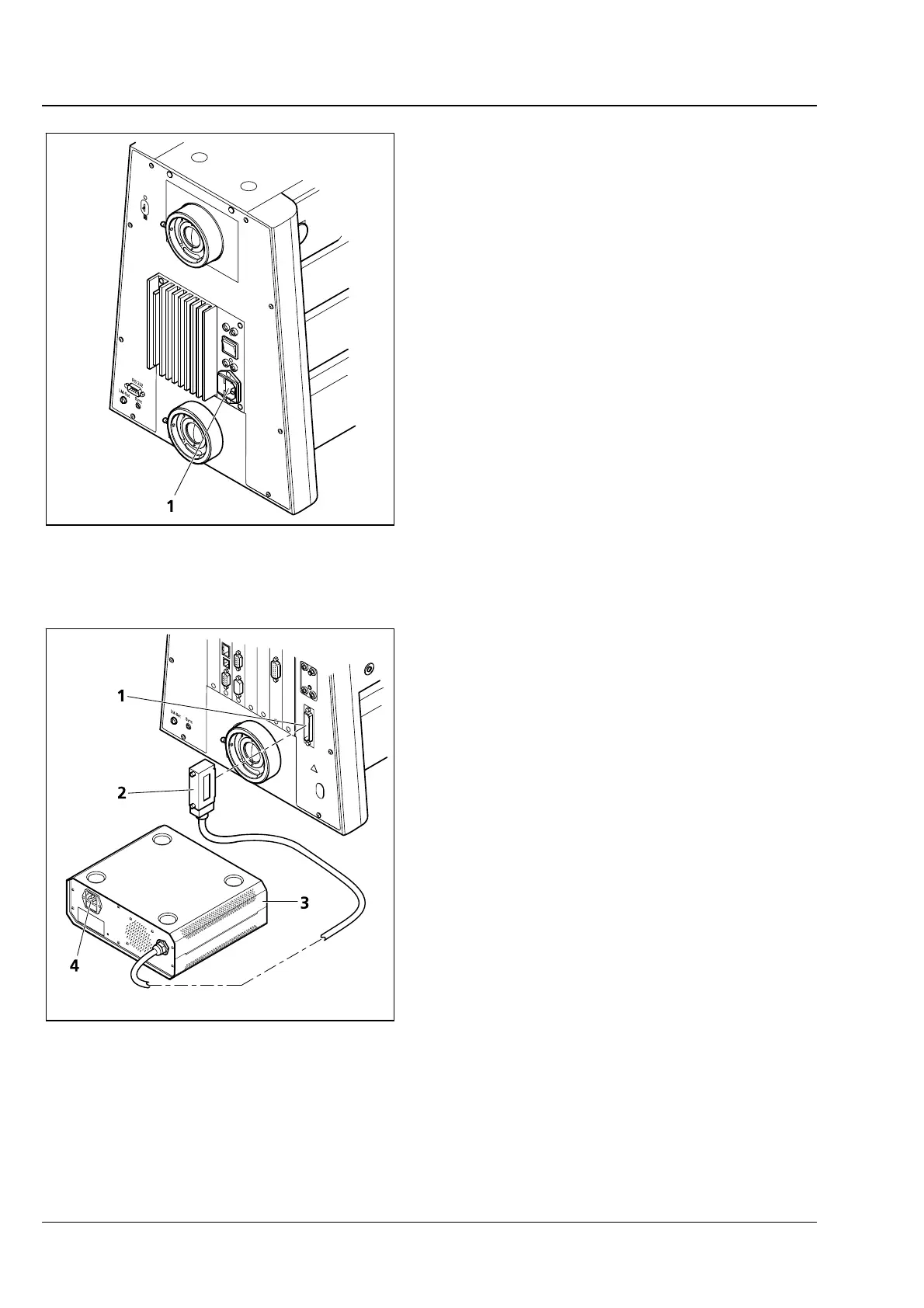

Fig. 3-33 Axio Imager, manual
Fig. 3-34 Axio Imager, motorized
