Zenith A27A23W - Page 7

Hook up your Entertainment
Machine.
Remove the back of the remote
and insert two AAA batteries.
Plug in your TV into a standard
120V, 60 Hz power outlet. Do not
plug it into a switched outlet.
Go to page 11 to Auto Program
your Entertainment Machine.
3373-O
INSTALLATION STANDARD PAGE 7
Connect your
VCR and Cable
to your
Entertainment
Machine.

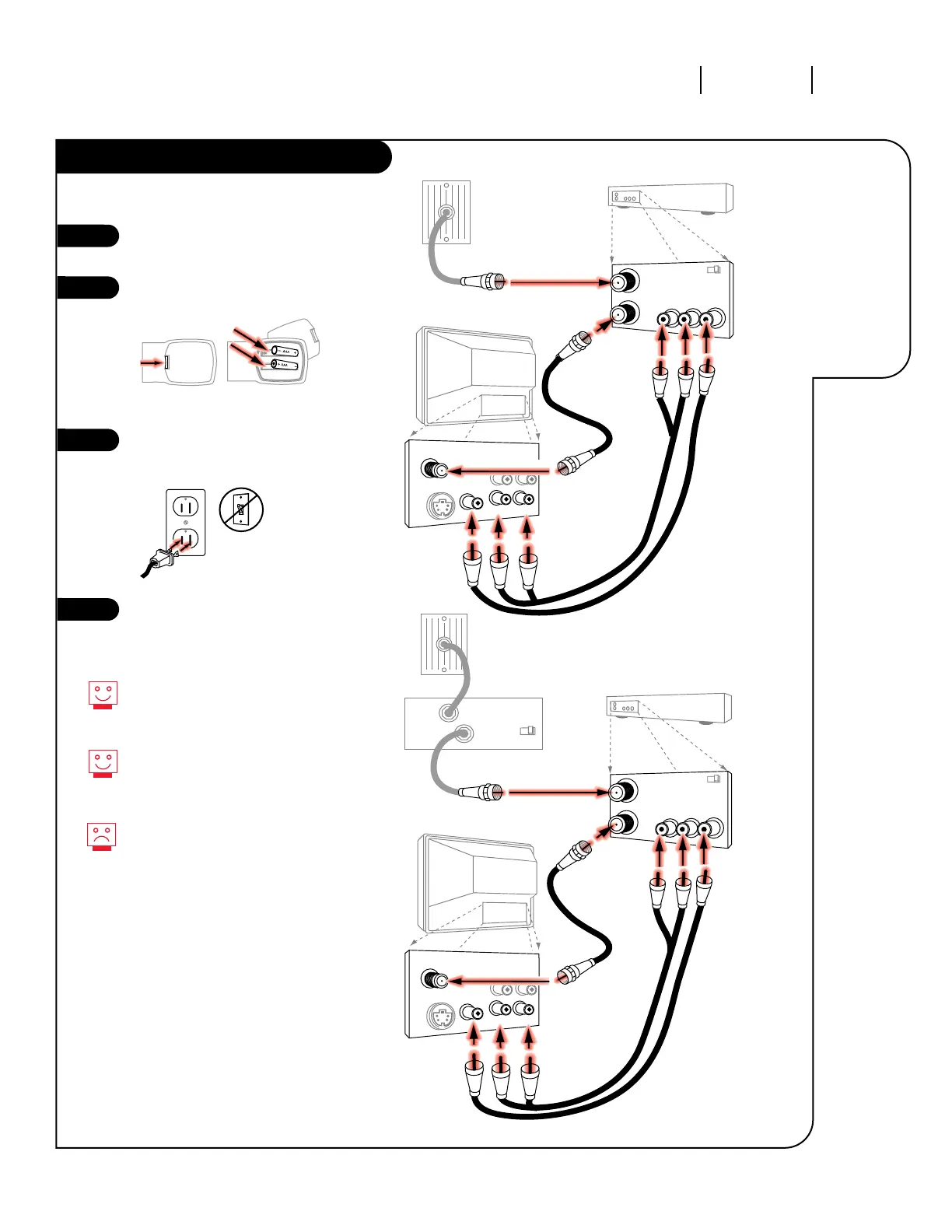

Hook Up Your VCR and Cable (CATV)
Leave your VCR and your television
tuned to channel 3 and use the
cable box to change channels.
Remember, when screwing in RF
cables into jacks, clockwise tight-
ens, and counterclockwise loosens.
No A/V cables are included with
your Zenith Entertainment
Machine, but can be purchased in
most consumer electronics stores.
Without A/V cables, most VCRs will
not play videocassettes in stereo
sound.
back of
remote
1
2
3
4
Cable TV
wall jack
Round wire (75ohm)
TV back panel
(expanded view)
TV back
In
Out
VCR back
VCR back AV panel
RF coaxial wire
(75ohm)
not included
with TV
A/V cables
not included
with TV
3 4
output
switch
Antenna
/Cable
Video
RL
R-Audio L/Mono
S-Video
Variable
Audio Out
Audio
Video
Output
R
L
Cable TV
wall jack
Round wire (75ohm)
Cable box
In
Out
In
Out
VCR back
VCR back AV panel
TV back panel
(expanded view)
TV back
RF coaxial wire
(75ohm)
not included
with TV
3 4
output
switch
A/V cables
not included
with TV
Antenna
/Cable
Video
RL
R-Audio L/Mono
S-Video
Variable
Audio Out
Audio
Video
Output
R
L
3 4
output
switch
