Zenith XBV343 - Front Panel Controls

7
INTRODUCTION

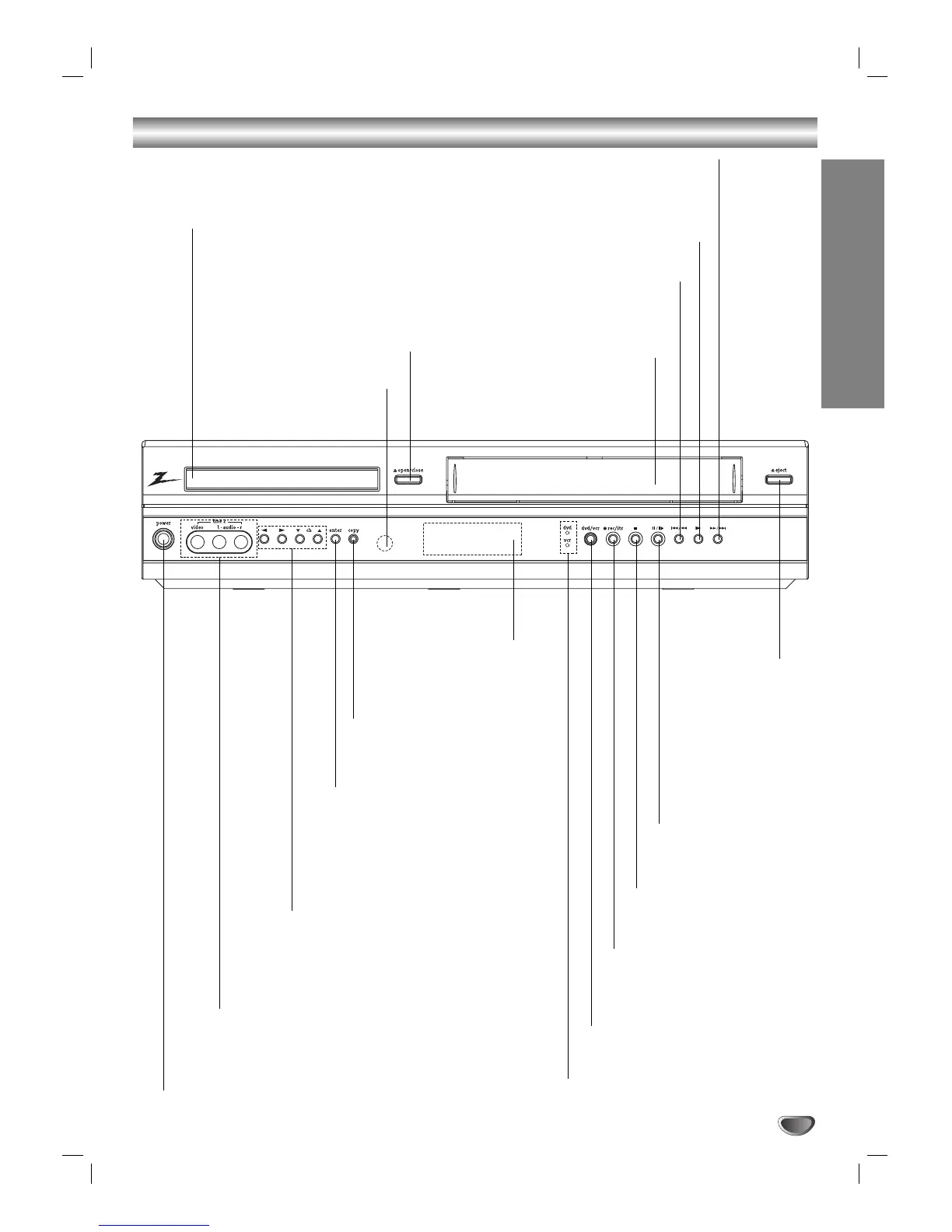

Front Panel Controls
PAUSE/STEP(
XX
/
CC
)
Pause playback of a tape
or a disc in the DVD or
VCR deck
temporarily/press repeat-
edly for frame-by-frame
playback.
OPEN/CLOSE (
ZZ
)
Opens or closes the disc tray.
Remote Sensor
Point the DVD+VCR remote
control here.
Display window
Shows the current status
of the DVD+VCR.
Disc Tray (DVD deck)
Insert a disc here.
POWER
Switches the DVD+VCR ON and OFF.
DVD/VCR (output select)
Select either the DVD or VCR source
to view on your TV screen.
REC/ITR (
zz
)
To record normally or to activate
Instant Timer Recording.
b/B/v/V (left/right/up/down)
- Selects an option in the menu.
-
CH (
vv
/
VV
)
To scan up or down through memorized
channels.
STOP (
xx
)
Stops playback of a disc or
tape.
LINE 2 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/Monitor, another
VCR).
Cassette Compartment
(VCR deck)
Insert a video cassette here.
EJECT(
ZZ
)
Ejects the tape in
the VCR deck.
COPY
Press to copy a DVD in the
DVD deck to a VHS tape in
the VCR deck.
PLAY (
NN
)
To play back a recorded tape or disc.
Forward SKIP/SCAN (
RR
/
TT
)
DVD: Go to NEXT chapter/track. Press and hold for two seconds
for a fast forward search.
VCR: Advances the tape during the STOP mode or for fast
forward picture search.
Reverse SKIP/SCAN (
SS
/
QQ
)
DVD: Go to beginning of current chapter/track or to previous chapter/track.
Press and hold for a fast reverse search.
VCR:
Rewinds the tape during the STOP mode or for fast reverse picture search.
Enter
Acknowledges menu selection.
DVD/VCR indicator
Indicates the active deck.
