General Operation
4.13

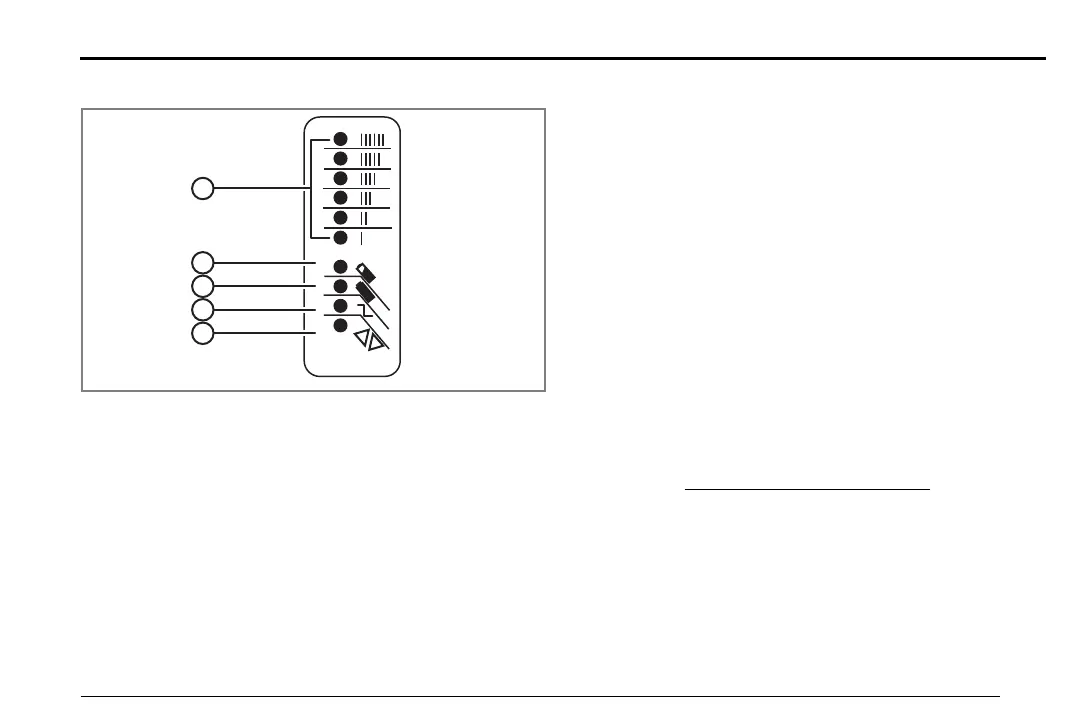

Quick Charger LED Indicators
A. Ammeter
The Ammeter LED is an amber indicator that indicates
the amount of current output and should gradually
ramp down from “IIIIII” to “I”.
B. 80% Charge
The 80% Charge LED is an amber indicator. If it is on
solid, the bulk charge phase is complete, 80%
charged. Charger is now in absorption phase. If the
indicator is flashing, there are two issues that can
cause this to occur:
The charger and BMS are balancing.
The BMS is cutting off the charge because one or
more cells have reached maximum voltage.
C. 100% Charge
The 100% Charge LED is a green indicator. If it is on
solid, the charging is complete and the off-board
accessory charger will enter maintenance mode. If it is
flashing, the absorption phase is complete and the
charger is in finish phase.
D. AC ON
The AC ON LED is an amber indicator. It it is on solid,
the AC power is good. If it is flashing, the AC voltage
is low. Check for proper voltage, and if an extension
cord is being used, verify that it is of the correct
length. Maximum length is 25 ft. (7.6 m) 12 AWG.
E. Fault
The Fault LED is a red indicator which indicates there
is a charger error. If it is flashing, reset the charger
and see “
Troubleshooting”, on page 6-1.
Zero Owner's Manual (X, MX and XU).book Page 13 Monday, April 29, 2013 3:30 PM
