Zero FX User Manual

General Maintenance
5.15
1. Remove the key from the key switch.

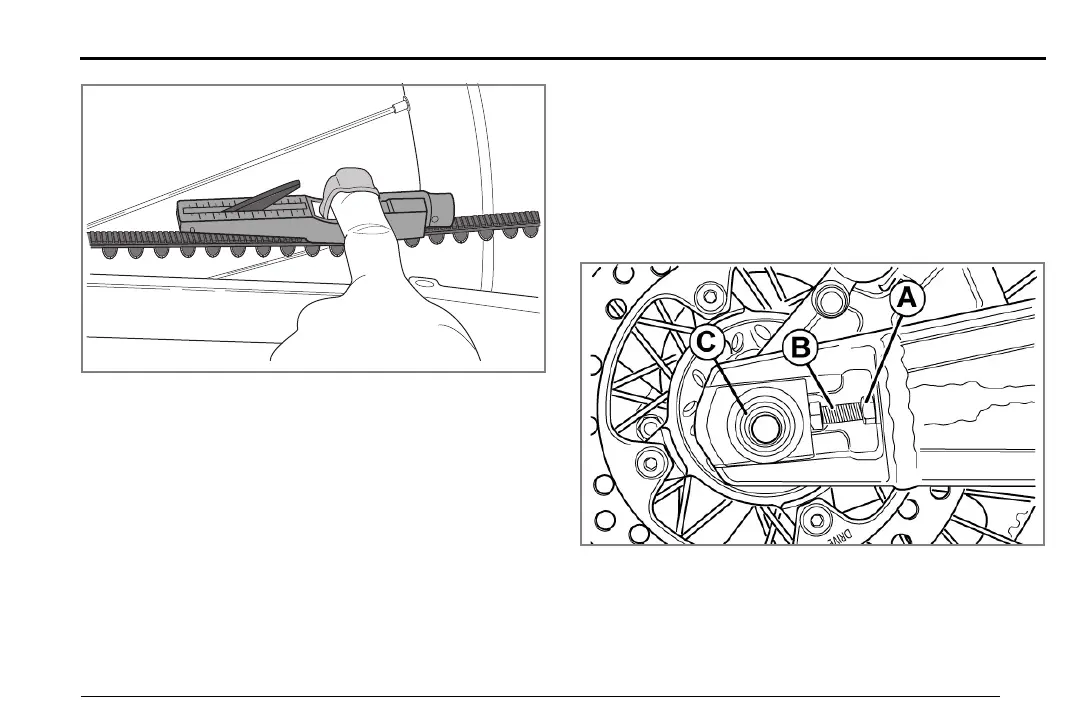

2. Press the Tension Tester steadily to the middle of the
upper side of the belt. The “lip” will lead the tester on to
the belt.
3. Slowly increase the pressure on the tester, until you
hear a clicking sound. Do not increase the pressure
after the tester has clicked.
4. Remove the tester carefully from the belt. Avoid rough
movements of the tester, as this would change the
results of the measurement. The measurement should
be in the range of 44-66 lbs (20-30 kg).
Drive Belt Adjustment Procedure
Note: Please adjust both sides equally.
1. Remove key from the key switch.
2. Loosen the rear axle nut (C).
3. Loosen left and right (A) jam nuts (13mm) in order to
make adjustments.
4. Turn adjustment bolt (B) to adjust belt tension.
5. Tighten left and right jam nuts (A) to secure the belt.
6. Tighten the axle nut.
7. Test ride the motorcycle.
8. Recheck the belt for proper adjustment after the test
ride and readjust, if necessary.
Zero Owner's Manual (X, MX and XU).book Page 15 Monday, April 29, 2013 3:30 PM

Zero FX Specifications

General

Category	Electric Motorcycle
Max Battery Capacity	7.2 kWh
Top Speed	85 mph (137 km/h)
Max Power	46 hp (34 kW)
Peak Torque	78 ft-lb (106 Nm)
Battery	Z-Force Li-Ion
Front Suspension	Showa 41 mm inverted cartridge fork
Rear Suspension	Showa piggyback reservoir shock
Front Brake	Single 320 mm disc with J-Juan 2-piston caliper
Rear Brake	Single 240 mm disc with J-Juan 1-piston caliper
Motor	Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
