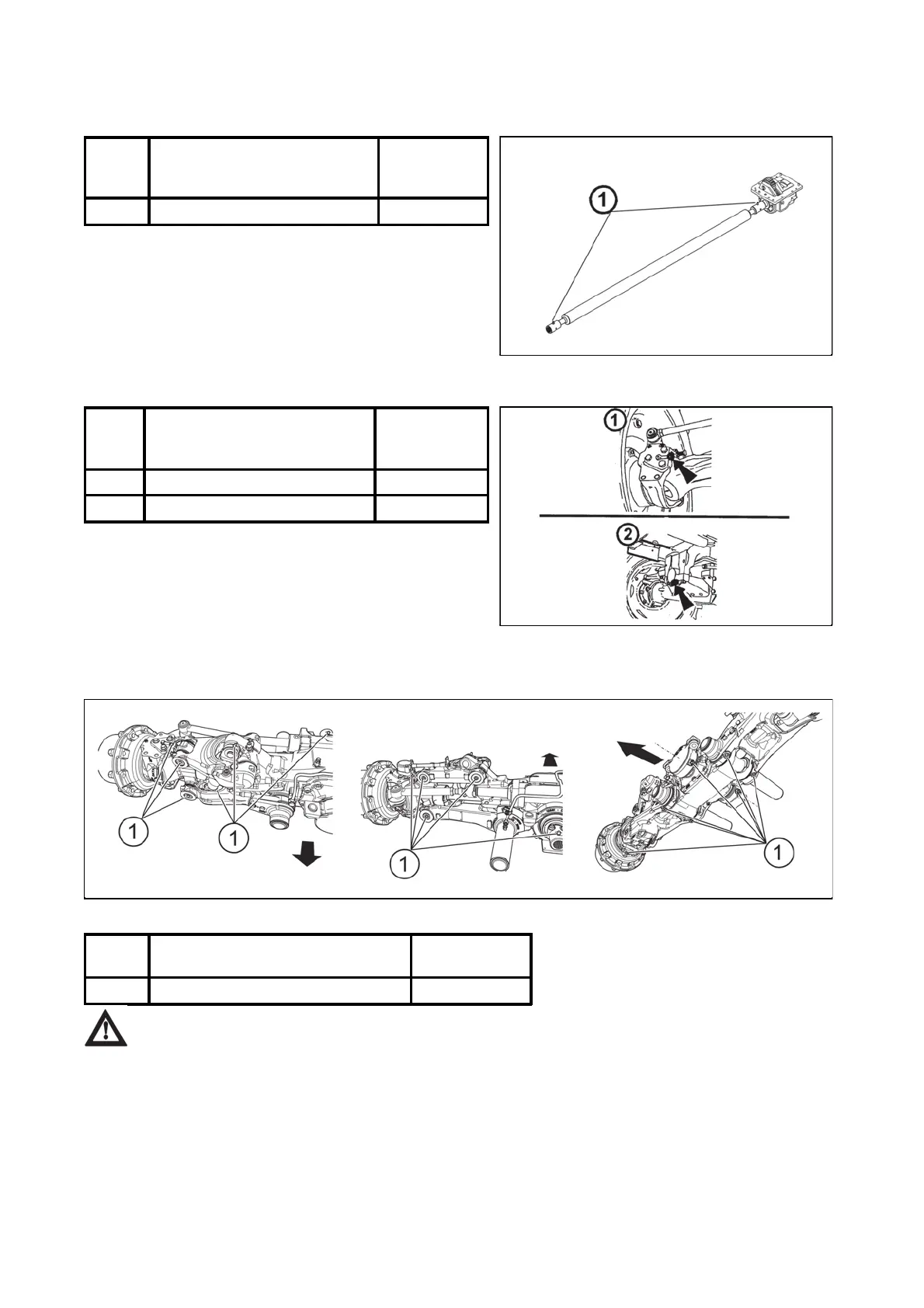

Tractor greasing scheme

Transmission shaft

Solid front drive axle

Suspension front drive axle

FHD14N088

Use grease with PTFE additives for greasing suspension front drive axle.

Position Name Number of

greasing

points

1 Transmission shaft clutches 2

FHD14N089

Pos.

no.

Identification No. of

lubrication

points

1 Turning radius pins 4

2 Central pin 2

03F

Position

number

Name Number of

greasing points

1 Greasing points 25

TRACTOR MAINTENANCE
