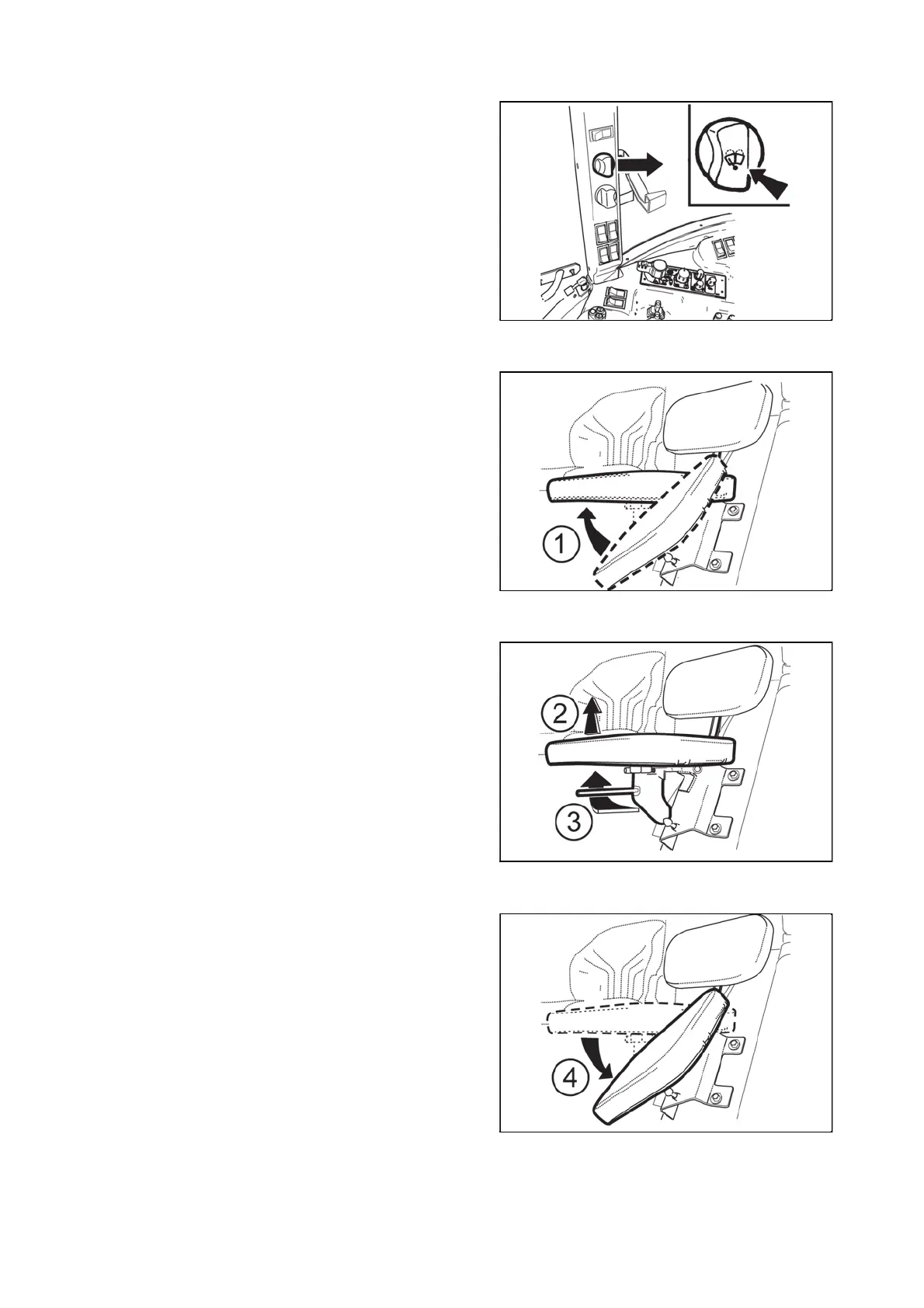

Windshield washer engagement
Passenger´s seat
Seat tilting out
Seat tilting
Windshield washer is set in activity by pressing a switch of
front double-gear windshield washer placed on the right
column of the cabin. The maximum length of uninterrupted
pump run of windshield washer is 20 s.
When using a front window washer, the front window is
automatically wiped. The number of wipes depends on the
length of time the washer is used.
FHD14N024
Passenger´s seat is tiltable and placed on the left
mudguard of the cabin.
FH12N020_1
Passenger´s seat to be tilted out in the direction of an
arrow (1) upward. Locking of the seat is done
automatically.
FH12N020_2
Lift the passenger´s seat in the direction of an arrow (2),
pull the lever (3) to the direction of the driver´s seat, tilt the
seat in the direction of an arrow (4).
FH12N020_3
ACQUAINTANCE WITH THE TRACTOR
