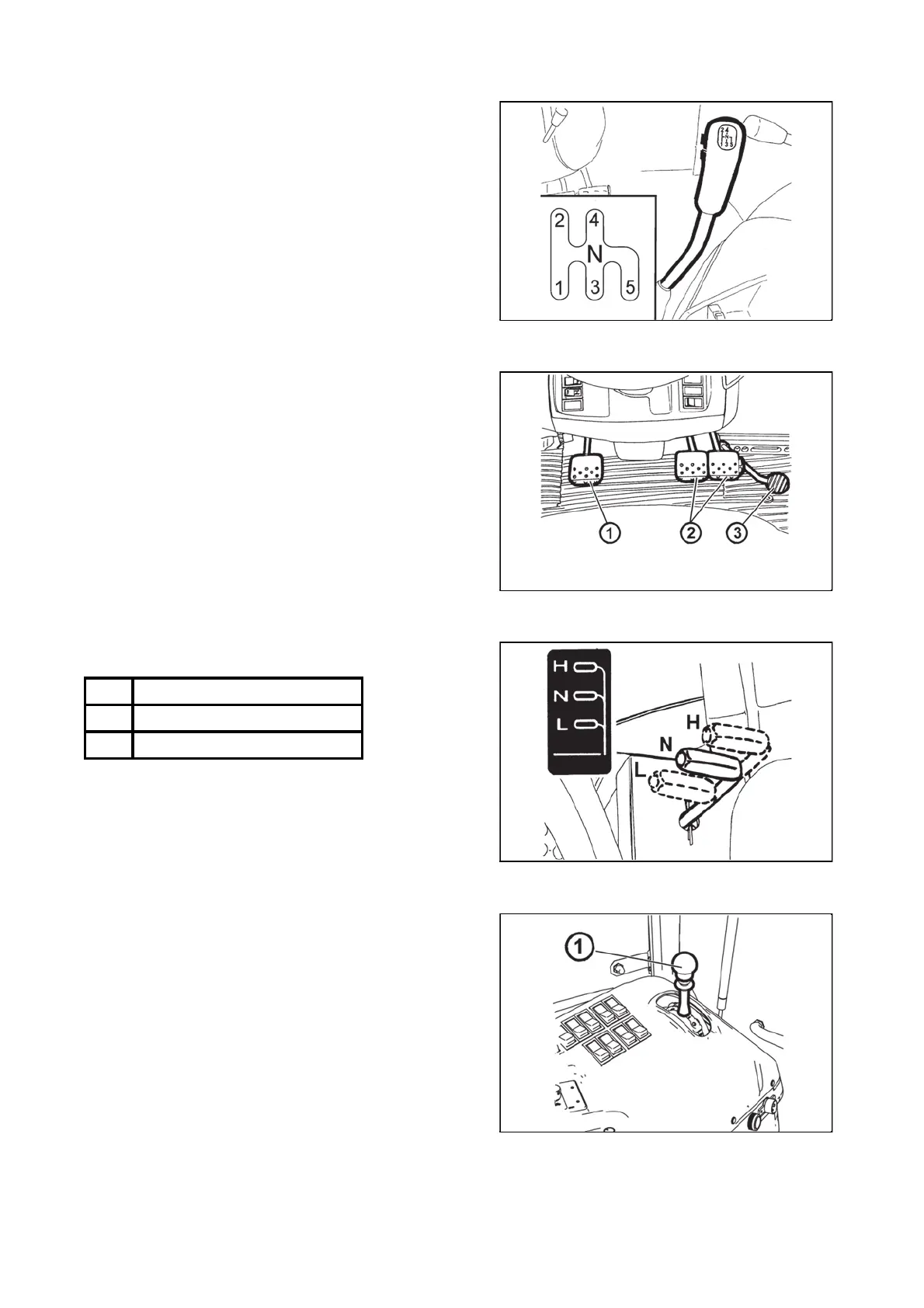

Gear shifting scheme

Pedals and levers

Road and reduced speeds shifting lever

PTO revolutions preselection lever

Reversing speeds can be shifted only by means of

reversing lever. The scheme is placed on the head of gear

shifting lever.

FH12N038

1 - travel clutch pedal

2 - foot brake pedals joint by a catch

3 - throttle pedal

FHD14N083

The lever is placed on the right side of driver´s seat.

H - Road speeds

N - Neutral

L - Reduced speeds

F72

The lever (1) is placed on the right side of driver's seat.

For more information see the chapter on Drive of

agricultural machines.

FHD14N026

ACQUAINTANCE WITH THE TRACTOR

4646
