Display descriptio
Change of the look of display
Display - change of display
FHD14N001

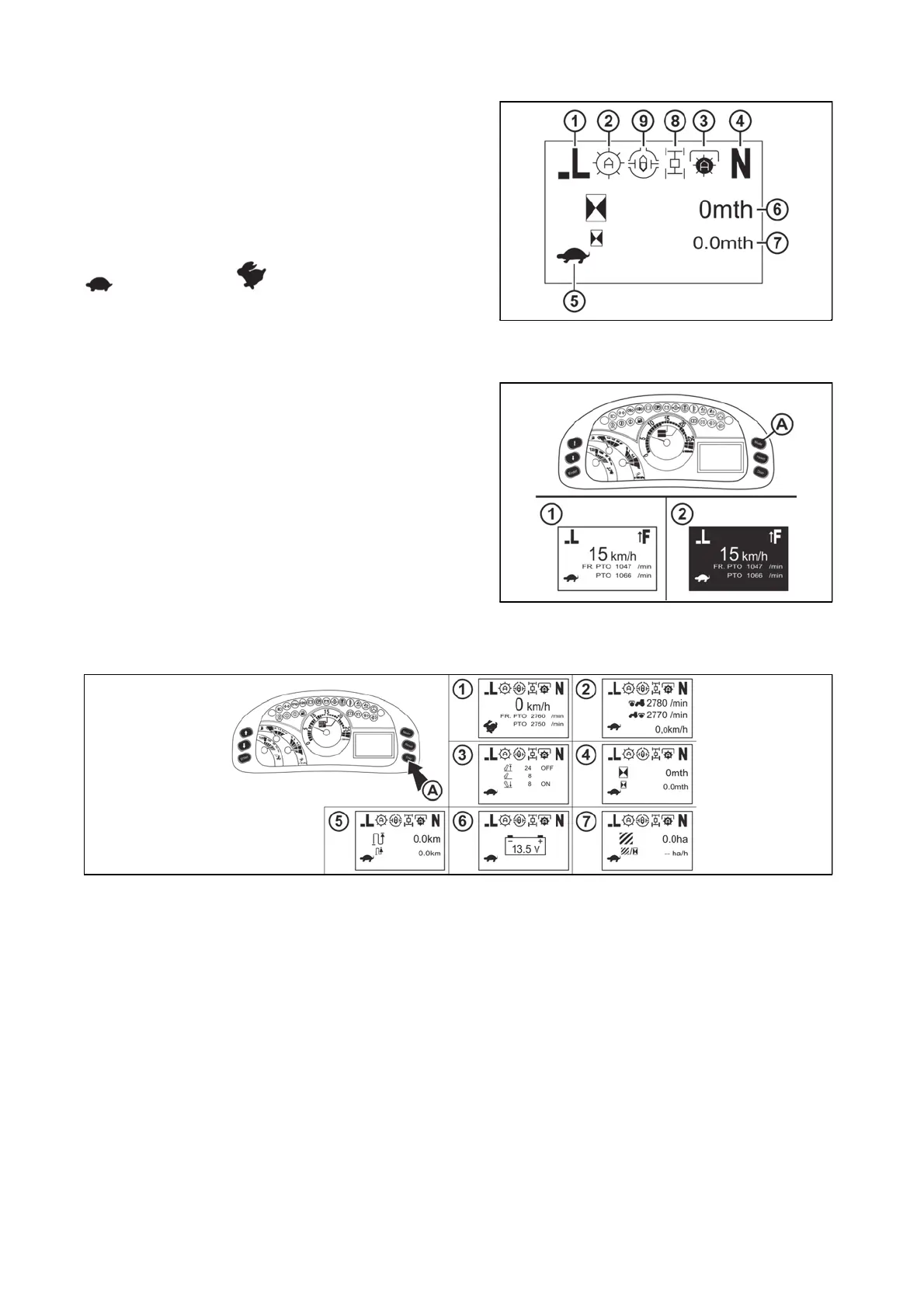

By repeated pressing of button (A), you can click between individual displays of data on display:
1 - Main field travel speed of tractor pole, secondary field of PTO shaft revolution, if it is on
2 - Main field of PTO shaft revolution if it is on, secondary field of travel speed of tractor
3 - Automatic disengagement of rear PTO shaft, more in the chapter 'Drive of agricultural machinery'
4 - Main field of number of hours in operation in total, secondary field of hours in operation from the last
resetting of the data
5 - Main field of the number of kilometres in operation in total, secondary field number of kilometres in
operation from the last resetting of the data
6 - Accumulator battery voltage
7 - The main array machined area in hectares, secondary array in hectares, secondary array hourly
performance, i.e. mean machined area in hectares per hour.
The following values are displayed on the display:
1 - shifted gear of multiplier of torque, according to shifted
gear L, M or H is displayed
2 - switching the switch of torque multiplier preselection
3 - switching the function of rear PTO shaft automatic
disengagement
4 - gear shifting lever position, reversing F driving forward,
N neutral, R reversing
5 - road and reduced speeds shifting lever position,
reduced speeds, neutral or road speeds
6 - main depicting field
7 - secondary displaying field
8 - engagement of front axle drive switch
9 - en
a
ement of rear differential lock
FHD14N005
The change of look of display from display (1) to display
(2) can be done by pressing a button (A).
FHD14N027
ACQUAINTANCE WITH THE TRACTOR
