Before attaching of an implement, driven by means of the tractor PTO shaft, check the speed
compatibility of both, it means tractor PTO shaft and implement driven shaft (540 rpm or 1,000 rpm).
Different PTO speed values may cause serious damages and injuries.
Work with PTO shaft
1. When working with PTO shaft mind that all the covers are duly fixed.
2. After completing the work, always mount the cover of PTO shaft back.
3. An
repairs or cleanin
of a
re
ated machines parts driven b
PTO shaft to be done onl
with the
engine at halt and PTO clutch disengaged.
4. Before starting an aggregated machine driven by PTO shaft, make sure that there are no
unauthorized personnel near, there is a risk of injury.

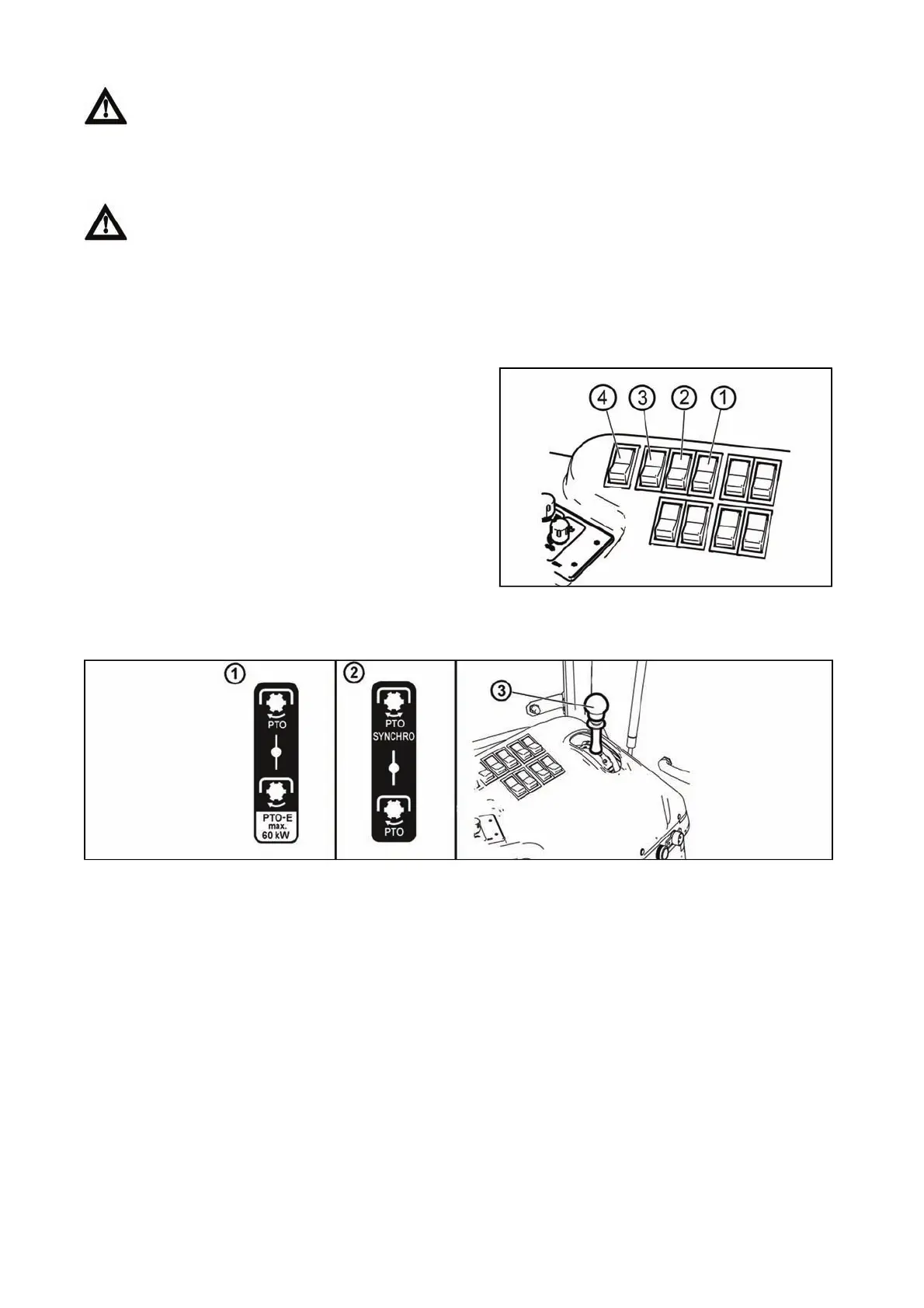

Controlling the front and rear PTO shaft
Rear PTO shaft revolutions preselection lever
FHD14N006
The tractor may be equipped with one of two systems of rear PTO shaft revolutions preselection. The system
used in the tractor is marked on the label placed by rear PTO shaft revolutions preselection lever.
1. Standard and economical independent revolutions of rear PTO shaft - label (1)
2. Dependent and independent revolutions of rear PTO shaft - label (2)
Rear PTO shaft revolutions preselection lever (3) is located on the right side of driver's seat.
Independent rear PTO shaft revolutions - number of revolutions is dependent on the number of engine
revolutions.
Dependent rear PTO shaft revolutions - number and the direction of revolutions is dependent on the
en
a
ed
ear and reversin
lever position.
The switches and buttons for the front and rear PTO
shafts are located on the panel on the right rear
mudguard.
1. Switch for selecting revolutions of rear PTO shaft.
2. Switch for automatic disengagement of rear PTO shaft
clutch.
3. Switch for rear PTO shaft.
4. Switch for front PTO shaft.
FHD14N009
DRIVE OF AGRICULTURAL MACHINERY
