eZ80
®
CPU
User Manual
UM007714-0908 Architectural Overview
4
while it executes the current instruction as displayed in Figure 2. The CPU operates on
multiple instructions simultaneously to improve operating efficiency.
In Figure 3, the pipelining process is demonstrated using a series of instructions. The first
LD
instruction prefetches its opcode and first operand during the decode and execute
phases of the preceding
INC
instruction. However, the second
LD
instruction in the
sequence only prefetches its opcode. The bus WRITE during the execute phase of the first
LD
instruction prevents the pipeline from prefetching the first operand of the next instruc-
tion. Thus, the number of bytes prefetched is a function of the command currently execut-
ing in the CPU.
When a control transfer takes place, the Program Counter (PC) does not progress sequen-
tially. Therefore, the pipeline must be flushed. All prefetched values are ignored. Control
transfer can occur because of an interrupt or during execution of a Jump
(
JP
),
CALL
,
Return (
RET
), Restart (
RST
), or similar instruction. After the control transfer instruction
is executed, the pipeline must start over to fetch the next operand.

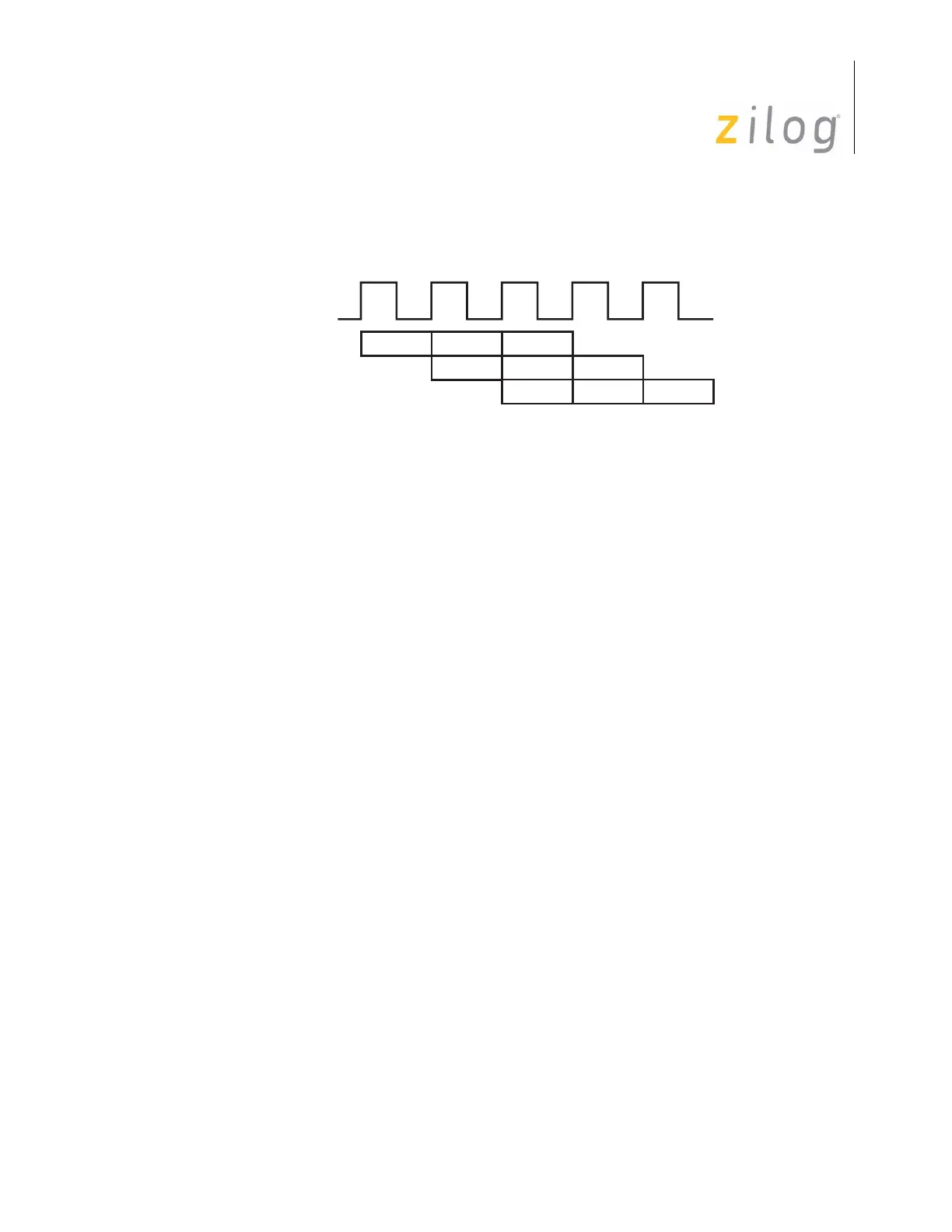

Figure 2. Pipeline Overview
System Clock
Instruction 1
Instruction 2
Instruction 3
Fetch Decode Execute
Fetch Decode Execute
Fetch Decode Execute
