Transducer placement
You can adjust the position and angle of the CH1 transducer according to the patient
and the stimulation area. The CH1 transducer arm can be moved up and down and
left and right. The angle of the CH1 transducer can be adjusted using the transducer
holder. The height of the CH1 transducer arm is adjusted by the weight of the CH1

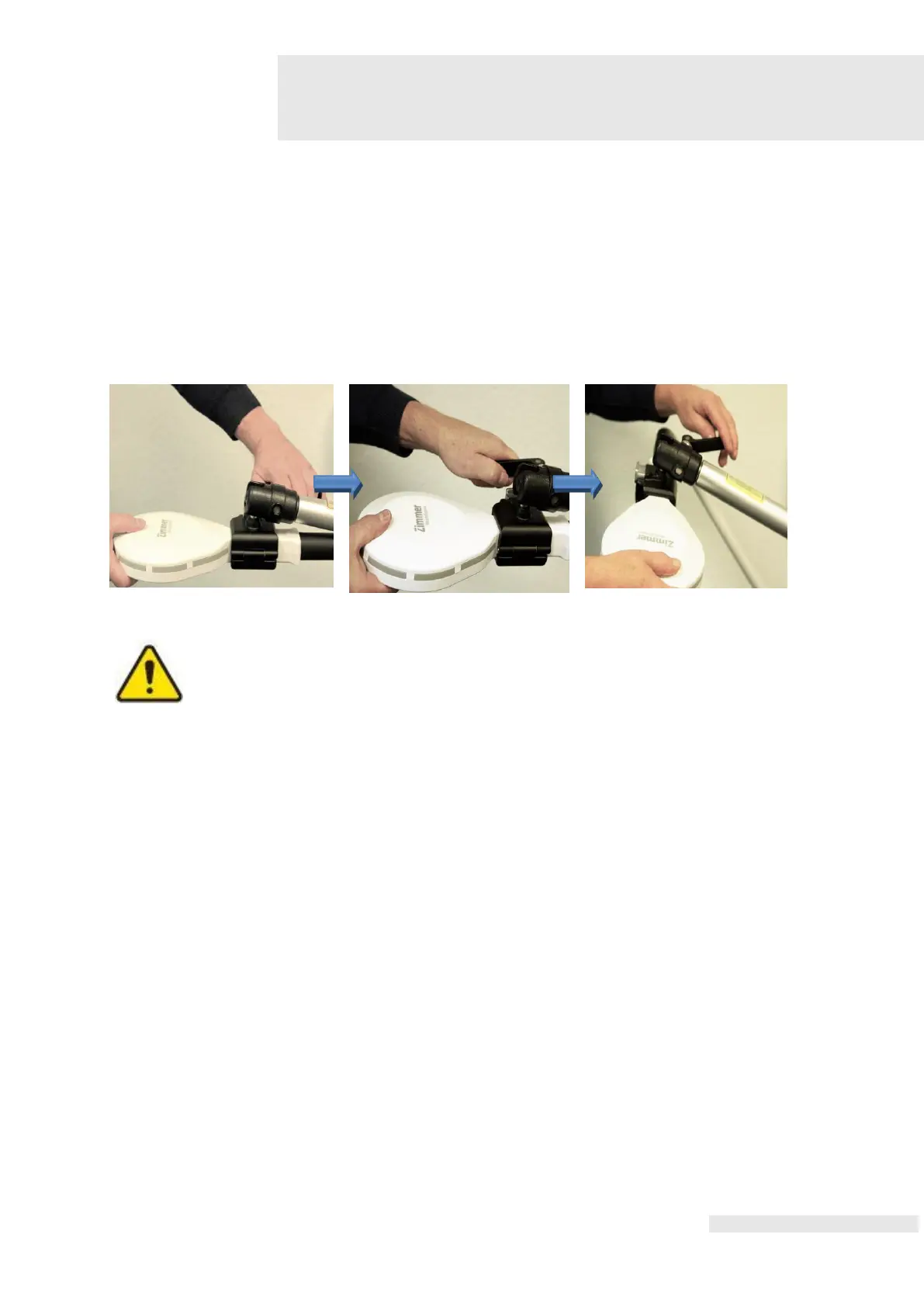

transducer using gas spring pressure. To adjust the angle of the CH1 transducer,
hold the CH1 transducer holder in the unlocked position and adjust the angle. The
holder must be locked after adjustment is complete. Please refer the figure below.
Do not use the CH1 transducer of which hose is bent.
