Zipro Rook - ASSEMBLY MANUAL; Pedal and Handlebar Column Assembly

27
EN

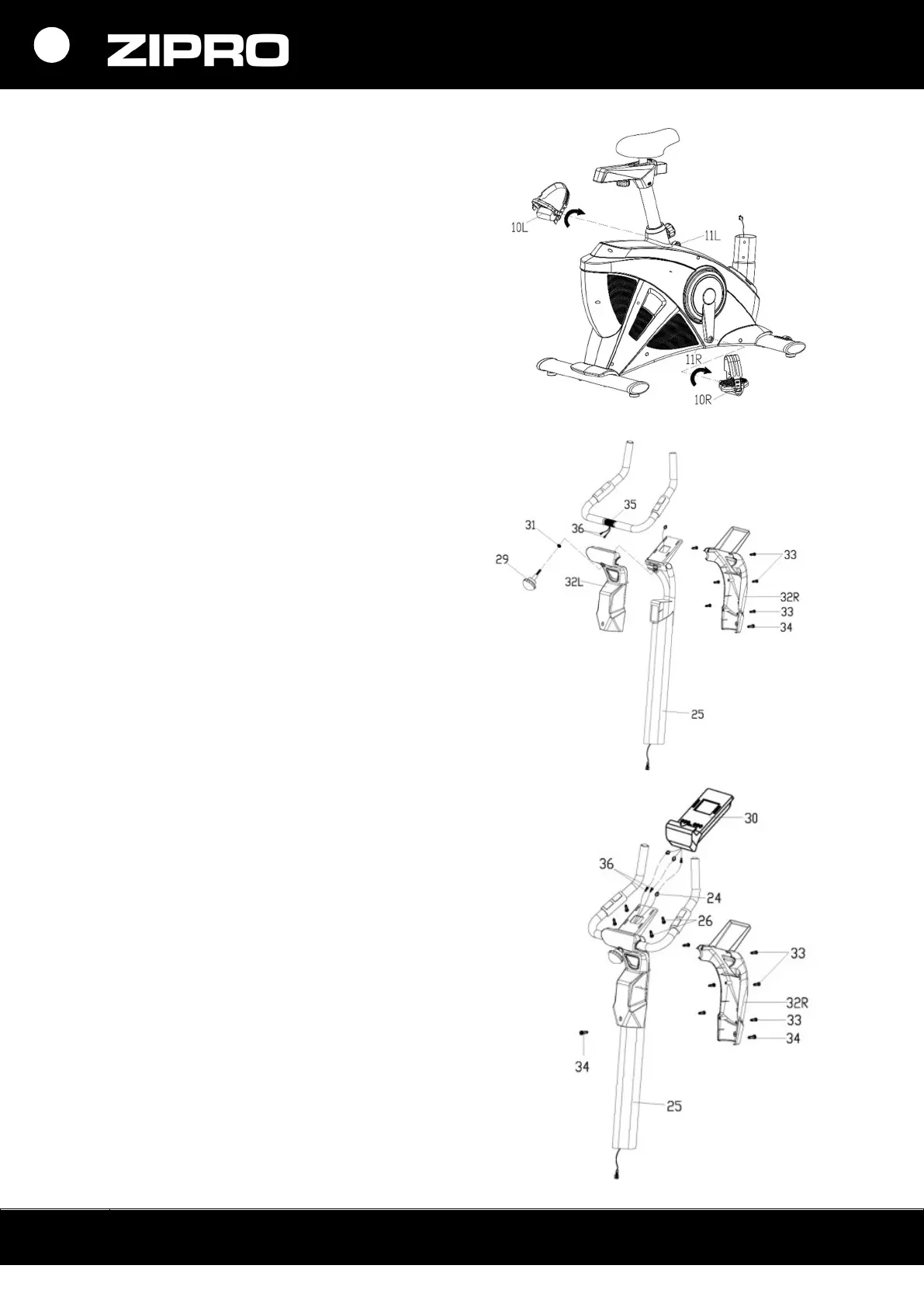

STEP
3.
Screw the right and left pedal (10L/P)
to the crank (11L/P). Screw the right pedal bolt
(10R) on clockwise. Screw the left pedal bolt
(10L) counterclockwise.
CAUTION! The right pedal is marked ‘R’ and
the left pedal is marked ‘L’.
STEP 4.
Remove the rear and front handlebar column
covers (32L/R) and the handlebar adjustment
knob (29).
Run the heart rate measurement cable (36)
through the handlebar column (25). Install the
handlebar adjustment knob (29) on the rear
handlebar cover (32L) with a flat washer (31).
Set the handlebar to the desired height (35) on
the column (25) and lock it with the handlebar
adjustment knob (29)
STEP 5.
Connect the heart rate measurement cable (36)
and the computer cable (24) to the computer
(30).
Fix the computer (30) to the handlebar column
(25) using the computer bolt (26). Make sure
every bolt is tight.
Fix the rear and front covers (32L/P) to the
handlebar column (25) with cross-head screws.
