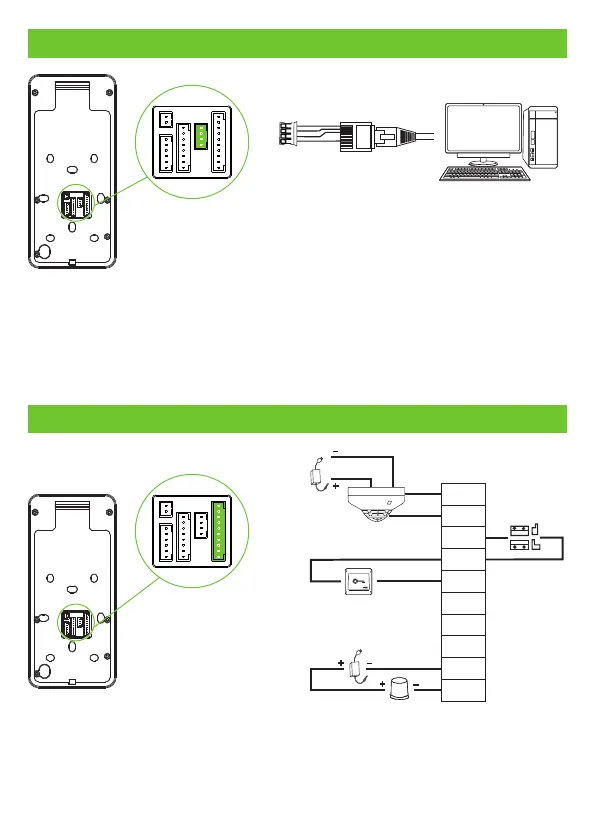

Ethernet Connection
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].
8
7
6
RJ 45
5
4
3
2
1
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
TX+
TX-
RX+
RX-
PC
Note: In LAN, IP addresses of the server (PC) and the device must be in the
same network segment when connecting to software.
Door Sensor, Exit Button & Alarm Connection
AUX
GND
SEN
GND
BUT
NO1
COM
NC1
AL+
AL-
Door Sensor
ExitButton
Alarm's Power Switch
Alarm
Smoke Detector
NO
COM
7
To Next Page
