TS2000 Pro Series Tripod Turnstile User Manual
P a g e |
6
Copyright©2020 ZKTECO CO., LTD. All rights reserved.
TS2000 Pro: Tripod Turnstile.
TS2011 Pro:
Tripod Turnstile with Controller and RFID Reader.
TS2022 Pro:
Tripod Turnstile with Controller and Fingerprint Reader with RFID function.
Please read this document carefully before installation and using the device.
1 Technical Specifications
Input Voltage
AC 100~120V /200~240V,
50Hz /60Hz
Max. Tolerance of Arms
Center: 80 kg
End: 40 kg
Rated Power
60 W
Ingress Protection Degree
IP54
Operating
Environment
Indoor and Outdoor
(shelter)
Arm Length (mm)
500
Operating
Temperature
-28ºC ~ 60ºC
Net Weight
42kg
Operating Humidity
5% ~ 85%
Gross Weight
48kg
Flow Rate
Max 30 passages / minute

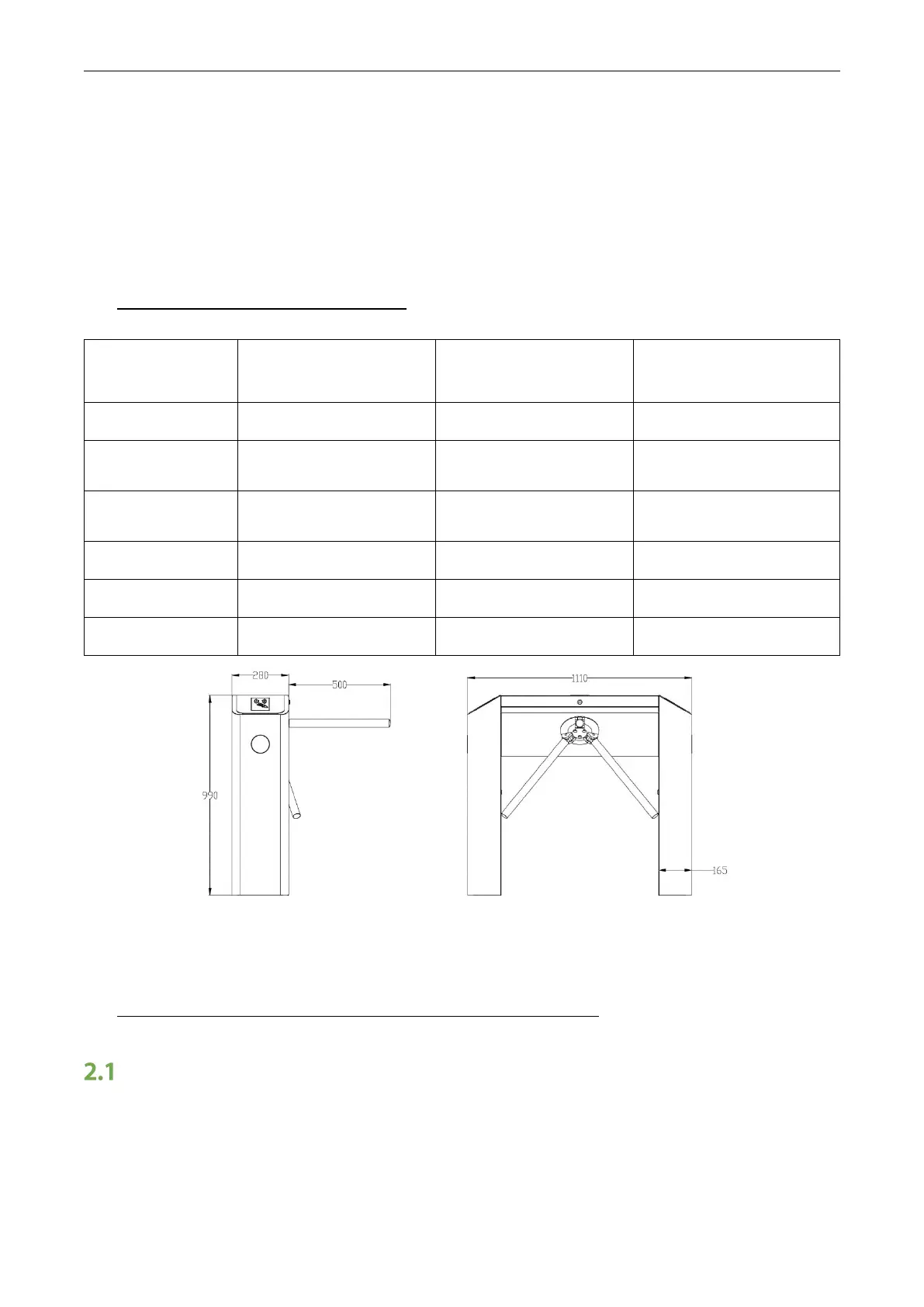

Dimension(mm) Figure 1
L = 1110, W = 280, H = 990
Input Control Signal
Dry contact
Package Size (mm)
L = 1175, W = 370, H = 1070
Figure 1
2 Arm Installation and Equipment Testing
Arm Installation Method
In order to keep the arm won’t be damaged during the transportation. The arm wasn’t install on device.
Installation procedure
