2.4 I Installing the pH pump (pH & pH/ORP, depending on model)
• When handling chemical products, always use appropriate safety equipment (safety
glasses, gloves, jacket and mask).
• The pH pump is a peristalc pump that rotates in the clockwise direcon: it sucks up acid (pH-minus) to inject into
the pool.

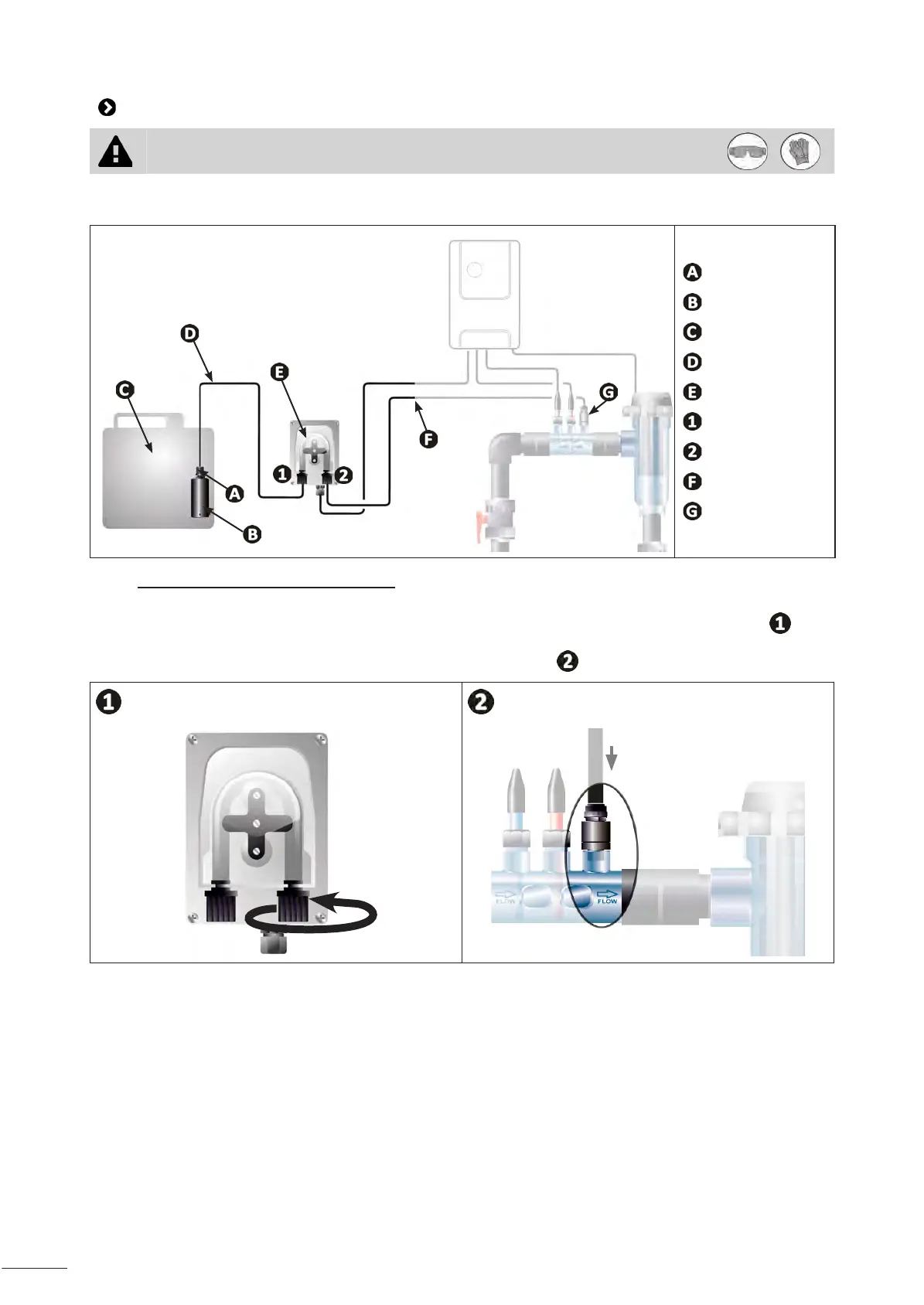

: Support tip
: Ceramic weight
: pH-minus container
: Suction hose
: pH pump
: Inlet
: Outlet
: Injection hose
: Injection check valve
2.4.1. Installing the pH minus injecon line
• Cut a suitable length of white hose from the coil (supplied) to connect the ppH pump to the injecon check valve.
• Unscrew the connector cap and aach the hose to the connector at the outlet of the pH pump, see gure .
Screw the cap in place.
• Aach the other end of the hose to the injecon check valve, see gure .
