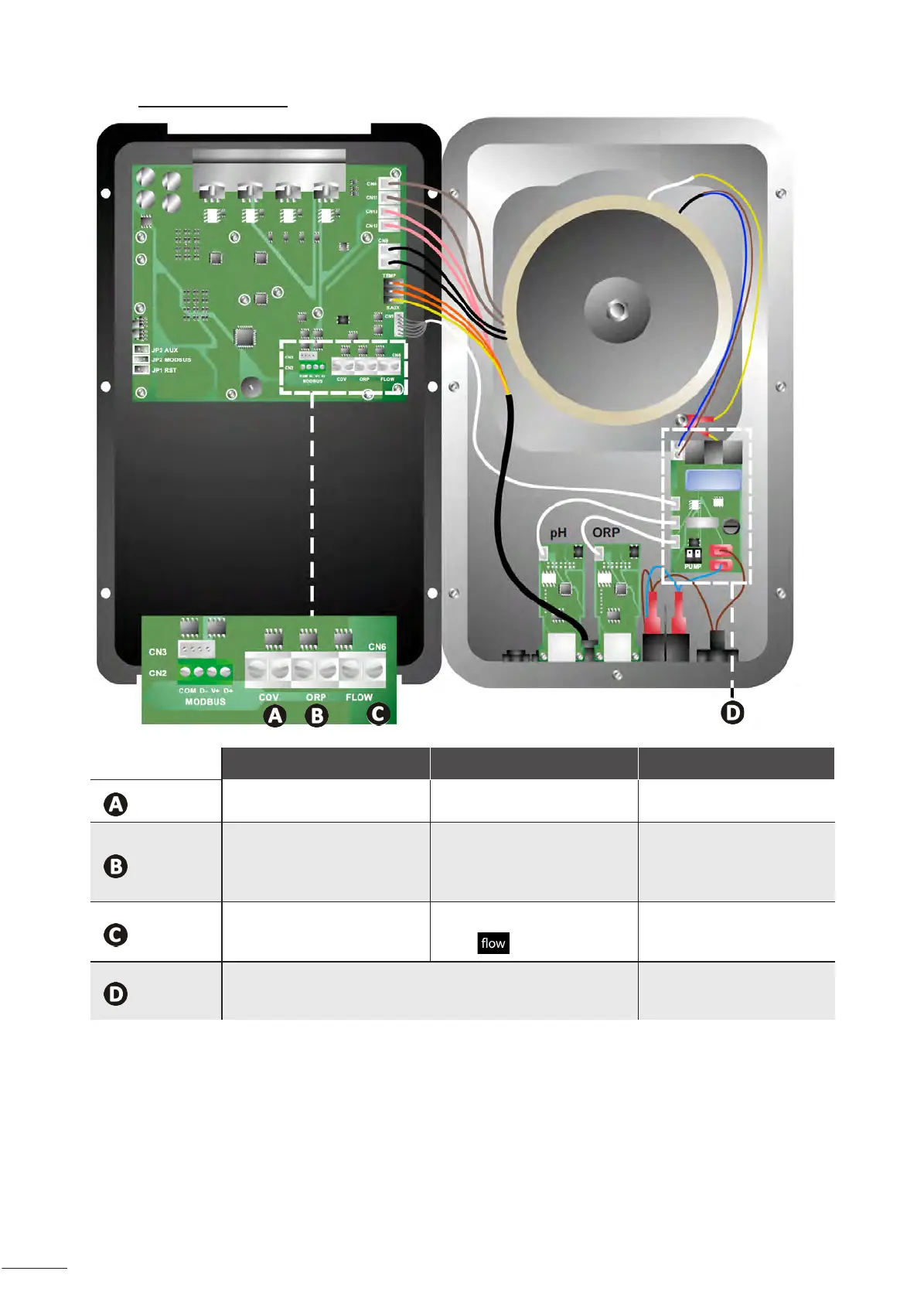

2.6.2. Detail of connecons
Contact closed (ON) Contact open (OFF) Activate the function
Pool Cover
Pool cover closed: reduced
production (10% to 90%)
Pool cover open : 100%
production
See§ “4.3.7. “Cover”:
Connecting a pool cover”
Slave mode
External chlorinaon controller
connected (ORP or PPM)
No external chlorination
controller (ORP or PPM) or
automatic ORP regulation (pH/
ORP model)
See § “4.3.12. “Cl EXT”: Slave
mode”
Flow switch*
Flow switch detected
No flow detected:
Alarm
See § “4.3.5. “Flow”:
Activating the flow switch”
pH pump
230 V supply when pH correcon is needed (depending on
model)
See § “2.6.3. pH pump
connecon (for pH - PH/ORP
models)”
(*Flow switch comes already wired from the factory)
