ZOJE ZJ8800A - Stitch, Tension, and Take-Up Spring Adjustments

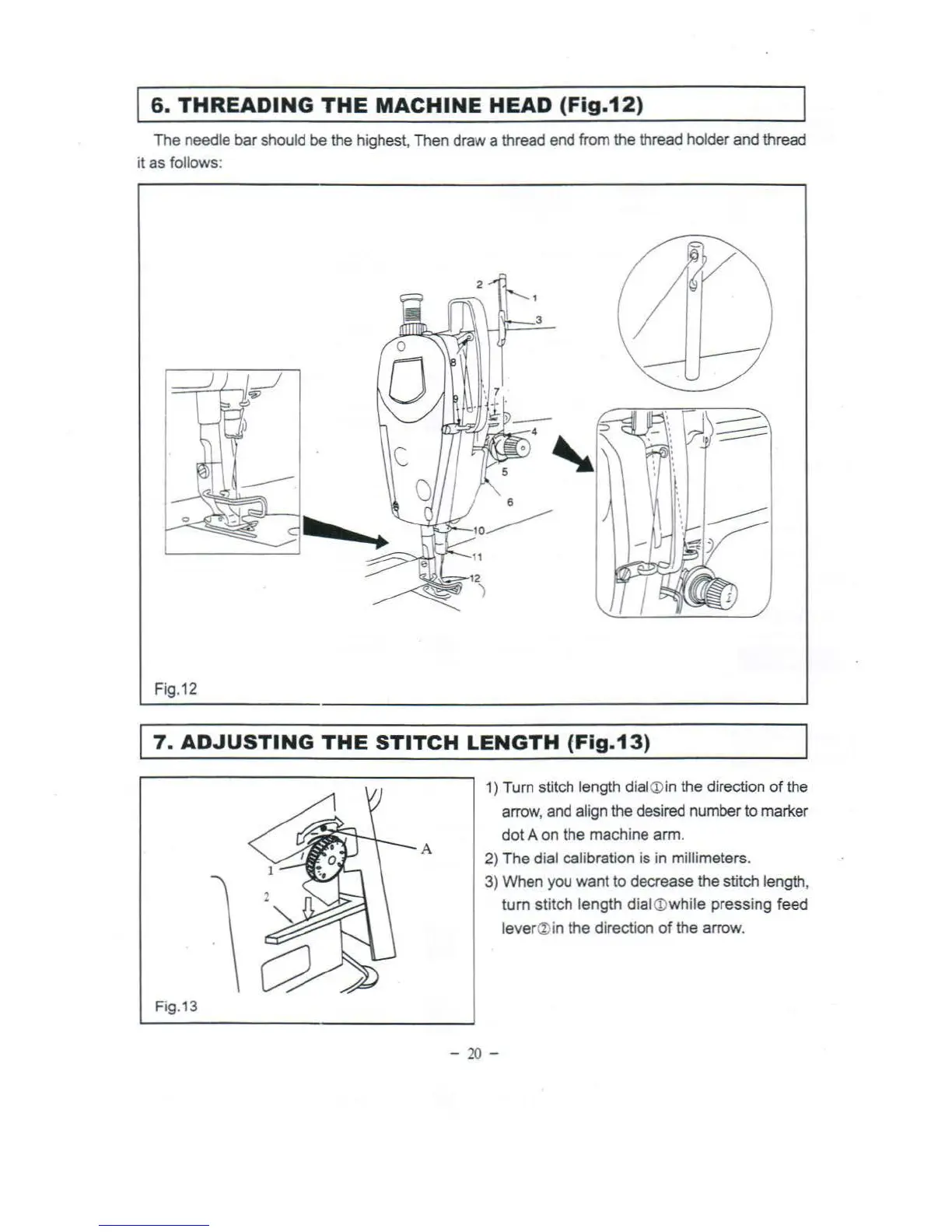

6. THREADING THE MACHINE HEAD (Fig . 12)
The needle bar should be the highest, Then draw a thread end from the thread holder and thread
it as
follows:
Fig.12
7. ADJUSTING THE STITCH LENGTH (Fig.13)
A
Fig.13
1) Turn stitch length
dial <D in the direction of the
arrow, and
align the desired number to marker
dot A on the machine arm.
2) The dial calibration is in millimeters.
3) When you want to decrease the stitch length,
turn stitch length
diai <D while pressing feed
lever a>i n the direction of the arrow.
- 20 -
