PLUMBING GENERAL
PLUMBING LAYOUT IN SERVICE AREA
Location: Behind the inspection panel under the vanity.
Two electrically actuated valves control which tank the water is drawn from for the
shower, vanity and drawbar taps. The single electrical switch under the washing machine
is used to select between the two.
Note: Before turning on the water pump, make sure you have selected which tank you
want to draw from at the pump panel pictured on Page 14. This stops risk of your water
pump running dry and seizing. The water levels for the tanks can be viewed on the REDARC
REDVISION Display.
Note: The tap labelled “WASHING M/C” is used to isolate the water supply to the washing
machine for maintenance purposes.

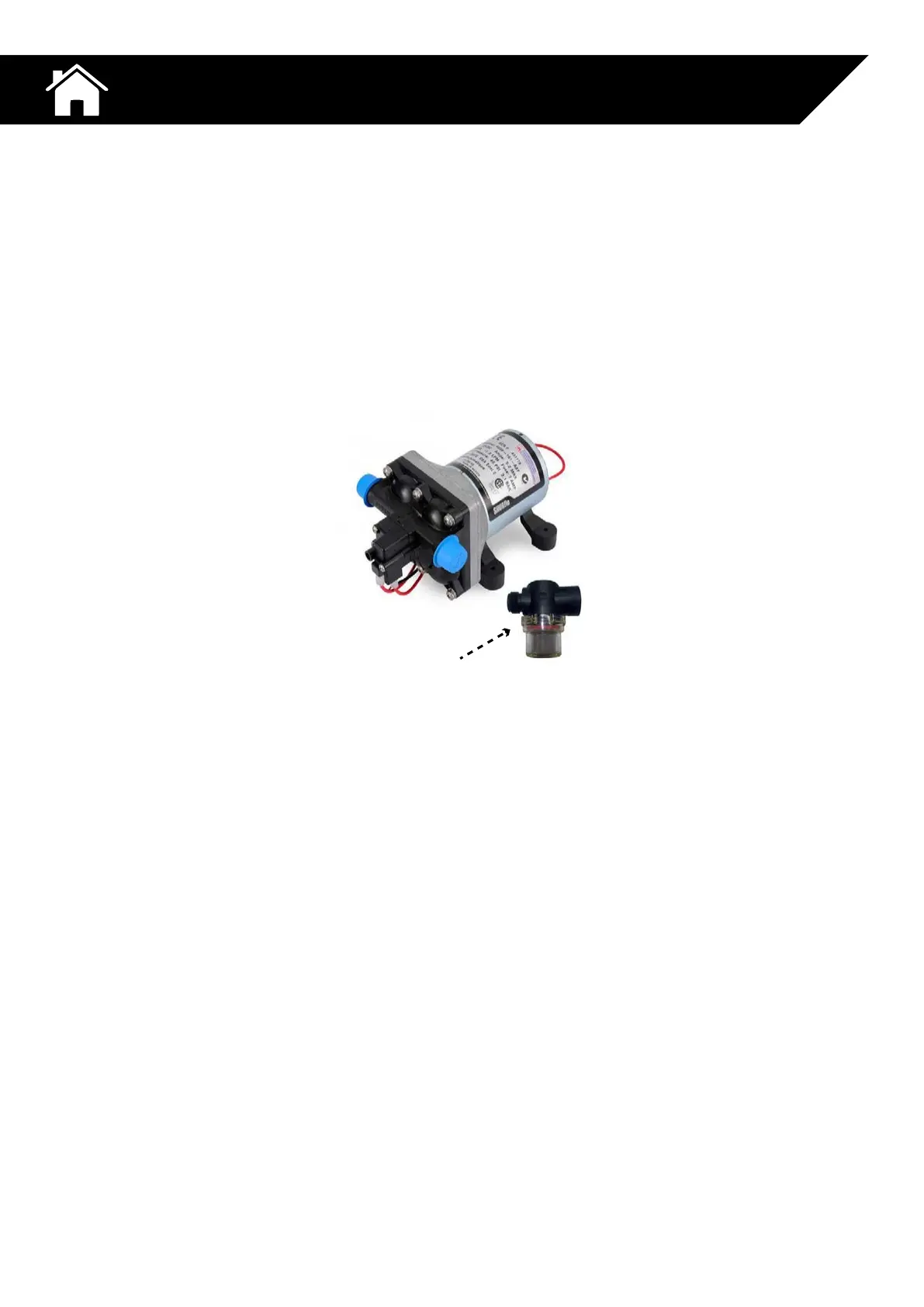

WATER PUMP
Diaphragm access (See pump manual for service)
Check fliter for obstructions
regular cleaning required
