7 PIN FLAT PLUG
50A GREY ANDERSON PLUG FITTED FOR CARAVAN CHARGING
Location: Front of drawbar
The GREY Anderson plug is for connection to the car. This is run directly to the DC/ DC
charger that stops the power from the caravan battery being sent back to the car battery.
It is critical that you do not plug anything other than a vehicle alternator into this Anderson
plug. It’s also recommended to cable tie this to your trailer plug to provide support should
it become disconnected from the car, preventing it dragging on the ground.
Your ZONE RV is fitted with provision for storage of one 4.5kg gas cylinder that is intended
for use with appliances that have their own regulator. There is no provision for direct
connection to the caravan via bayonet or similar fittings. LPG is a volatile fuel system and
by composition is extremely explosive. Great care needs to be taken when using gas fuelled
appliances.

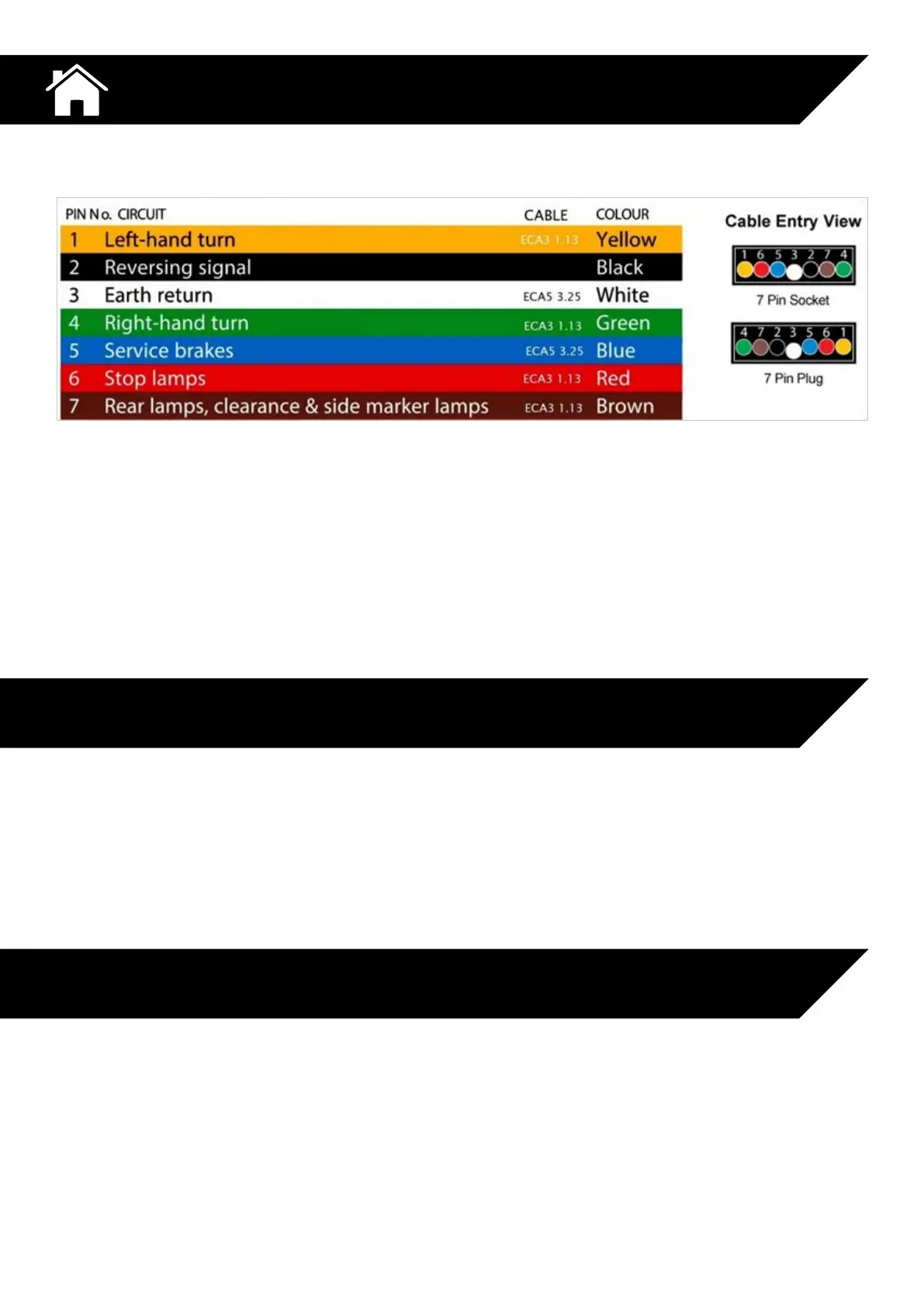

TRAILER PLUG CONFIGURATION
GAS SYSTEM
POWER SYSTEMS
ELECTRICAL CERTIFICATE
All ZONE RV caravans are supplied with a non-prescribed Electrical Certificate. Installation
and testing of 240V cabling and components is completed by a qualified Electrician. Any
modification to the installed system will void the certification and 240V warranty.
