ZONE RV Expedition - Lighting Control System; Interior and Exterior Lighting Controls

To Next Page

To Previous Page

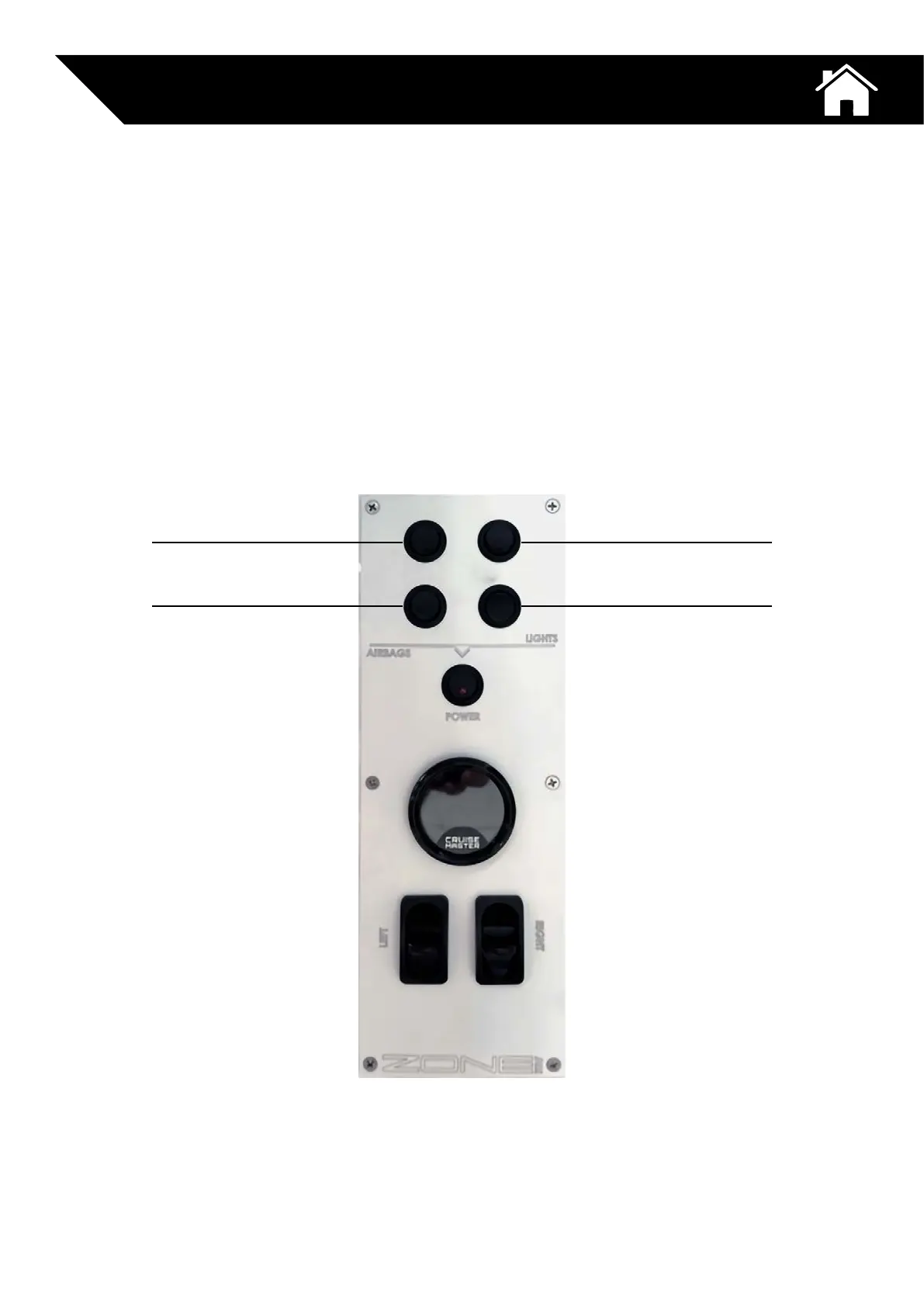

The top portion of the switch plate inside the entry door is used to control lighting for the

exterior, outdoor kitchen and the ensuite. The outdoor kitchen light switch on the top left

and the ensuite light switch on the bottom left are momentary switches that allow for on/

off control and dimming of the lights via the REDARC TVMS Rogue unit. The switches on

the right for the exterior side light are on/off only.

The colour of the lighting in the outdoor kitchen is modified by a switch on the inside left

wall of the outdoor kitchen when the hatch is open.

All other interior lights are controlled via the REDVISION Display.

LIGHTING CONTROL

OUTDOOR

KITCHEN LIGHT

EXTERIOR

SIDE LIGHT

ENSUITE EXTERIOR SIDE

LIGHTS COLOUR
