SUSPENSION SYSTEM
ATX AIRBAG SUSPENSION (DISC BRAKES)
SETTING RIDE HEIGHT
To achieve the best possible ride, it is important to correctly set your suspension ride
height. This allows for the correct amount of travel and for all components to be operating
as designed.
As this system is designed to allow for differing loads the best way to measure and set
ride height is per below.
HEIGHT SETTING METHOD

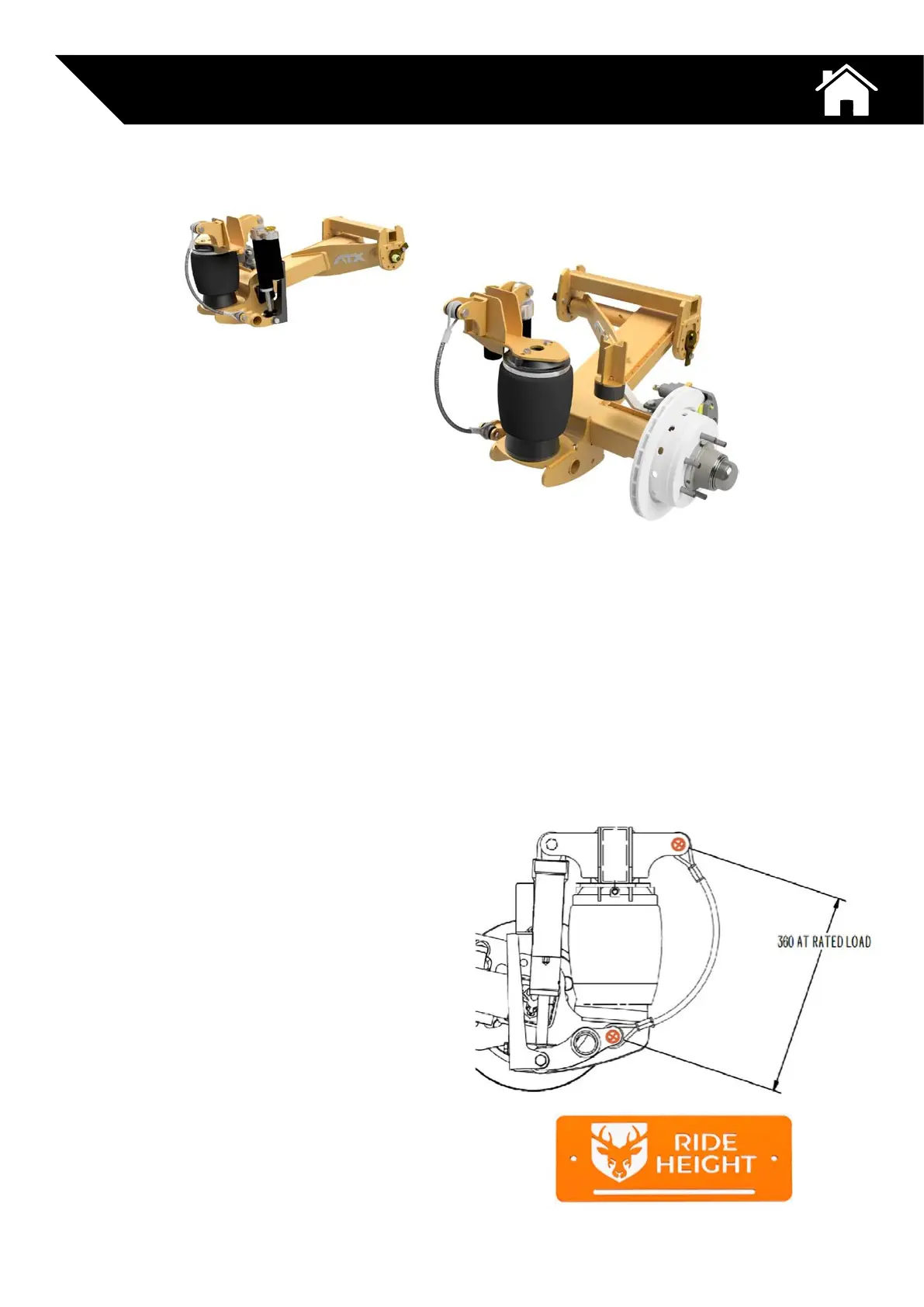

Measure the distance from lower eyelet to
upper eyelet of the rebound cable mounts
(as shown).
360mm from eyelet to eyelet will give you
the optimised ride height for the load being
carried.
For easy confirmation of ride height, there
is a visual marker in the wheel arch to line
up with the tyre. This typically eliminates
the need to remeasure the spacing on every
adjustment.
