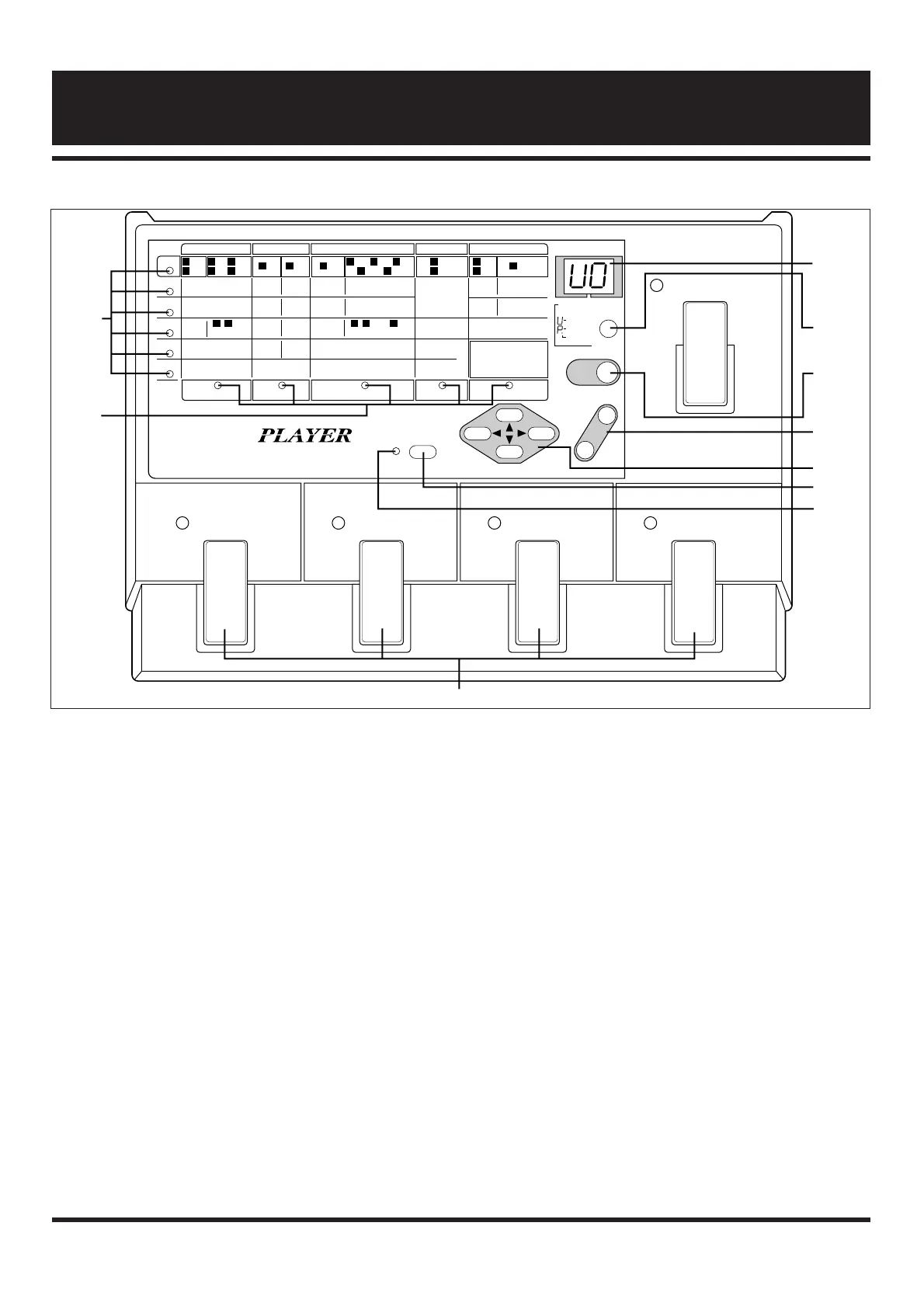

Front Panel
(1) Display
The display shows vital information for operating the 2020,
such as group and bank numbers of a patch, effect parameter
values and other messages.
(2) GROUP key
• In Play mode
Serves to select the memory group for the patch, as
follows.
USER Only patches from the user group are
available.
PRESET Only patches from the preset group are
available.
BOTH Patches from both groups are available.
• In Edit mode
Serves to compare the currently edited patch with the
patch before editing (compare function). For details,
please refer to page 12.
(3) STORE key
Serves to store an edited patch with its new parameter and
level settings in the user group.
(4) VALUE + / - keys
These keys serve to change the value of a parameter.
Tapping the VALUE + key increases the value by one step,
and tapping the VALUE - key decreases the value by one
step. Keeping a key depressed changes the value
continuously. To increase the speed of the change, press the
other key as well.
• In Play mode
The keys serve to adjust the output level of the patch.
• In Edit mode
The keys serve to select an effect type and adjust the
currently selected parameter.
(5) PARAMETER SELECT keys
Serve to select the parameter to be edited in Edit mode.
(6) EDIT (MANUAL) / CANCEL key
Pressing this key switches from Play mode to Edit mode.
The Edit mode can also be used as Manual mode to switch
effect modules on and off with a foot pedal.
The key also serves to return from the Edit mode to the Play
mode, and to cancel a store process.
