(7) Edit mode LED
This LED lights up when the 2020 is in the Edit (Manual)
mode.
(8) Module cursor LED
• In Play mode
Lit LED indicates which effect module in the current
patch is ON.
• In Edit mode
Lit LED indicates which effect module in the currently
edited patch is ON, and flashing LED indicates the
currently edited effect module.
(9) Parameter cursor LED
Flashing LED indicates the currently edited parameter in
Edit mode.
(10) BANK pedal
• In Play mode
Selects the next higher bank.
• In Edit (Manual) mode
Switches REVERB for the effect module on and off. The
pedal LED lights up when REVERB is on.
(11) Pedal 1 - 4
• In Play mode
The pedals serve to select a patch. The respective pedal
LED lights up.
• In Edit (Manual) mode
The pedals serve to switch the effect modules
COMP+DIST, EQ, MODULATION, DELAY on and off.
The respective pedal LED lights up.
6

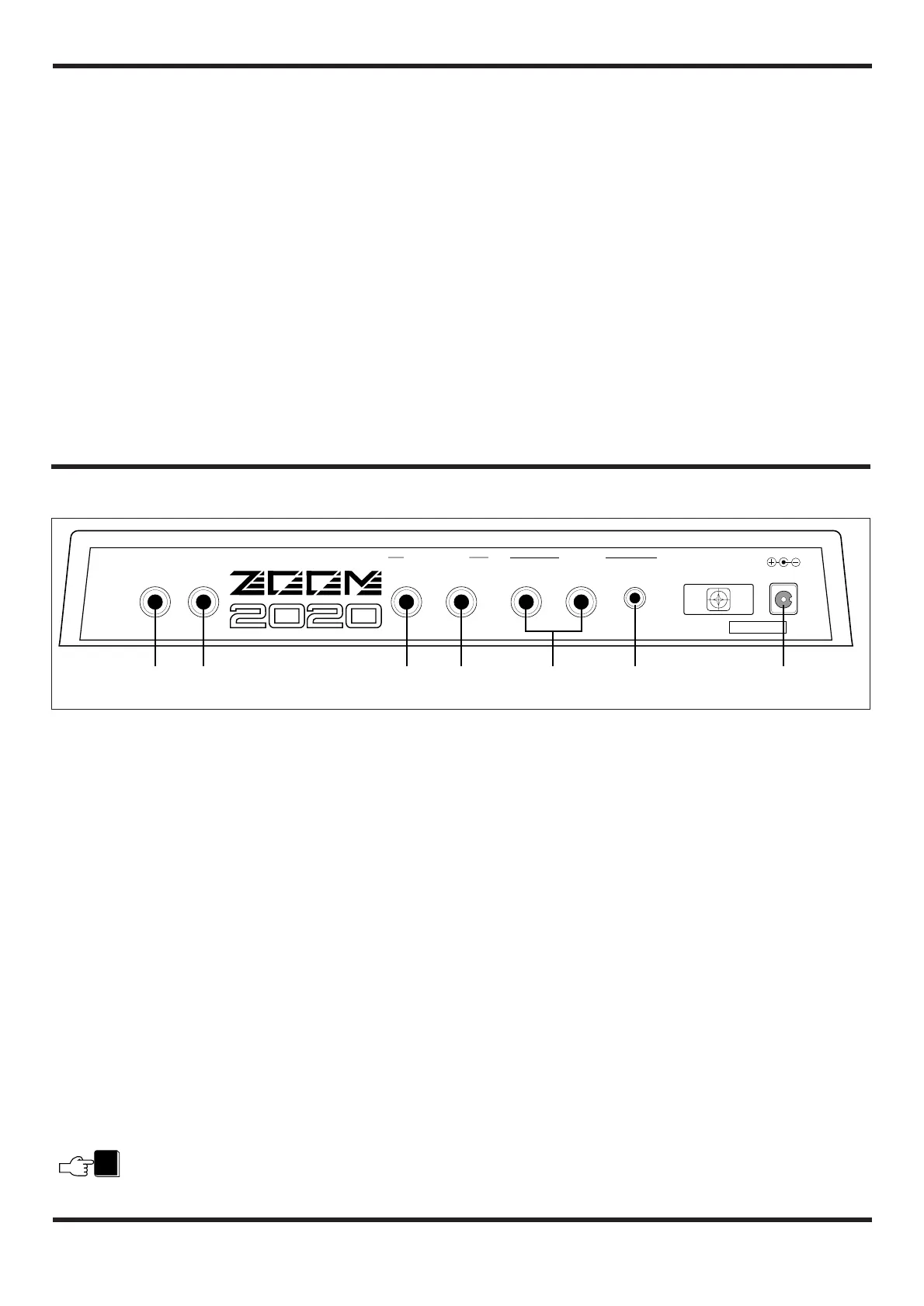

Rear Panel
(1) INPUT jack
Serves for connection of a guitar.
(2) TUNER OUT jack
The guitar signal from the input is supplied without
alteration at this output, to allow tuning without the need for
cabling changes.
(3) CONTROL IN VOLUME jack
This connector allows use of the optional foot pedal FP01 to
control the volume level of the 2020. Since the level is
adjusted between the EQ module and the MODULATION
module, the volume can be changed without affecting
reverberation.
(4) CONTROL IN MANUAL/WAH jack
This jack serves for connection of the optional foot switch
FS01 or foot pedal FP01. The FS01 can be used to switch
between Play mode and Manual mode, and the FP01 can be
used to control the wah effect of the EQ effect module.
When connecting the FP01 to a CONTROL IN jack,
use the EXP. OUT connector of the FP01.
(5) OUTPUT L/MONO/R connectors
Serves for connection to a guitar amplifier. To use the 2020
in stereo, connect cables to both jacks. For a monaural
setup, connect the cable to the L/MONO jack.
(6) PHONES (REC OUT) jack
For connection of a pair of stereo headphones. Since the
output at this jack has been processed by an amp simulator,
it can also be used as recording output for connection to a
tape recorder or mixer.
(7) DC INPUT (AC adapter) jack
The supplied AC adapter is connected here. To guard
against inadvertently disconnecting the adapter cable, wind
the cable once around the hook. As long as the AC adapter
is connected here, the unit is turned on. There is no separate
power switch.
