Installing the CPU Fan
There are many different fan types that can be used with this motherboard. Follow the
instruction that came with your fan assembly. Be sure that the fan orientation is correct
for your chassis type and your fan assembly.
Installing Memory DIMMs
Your new motherboard has two 1.8V 240-pin slots for DDR2 memory. These slots
support 256 MB / 512 MB /1GB / 2GB / 4GB DDR2 technologies. There must be at
least one memory bank populated to ensure normal operation. Use the following the

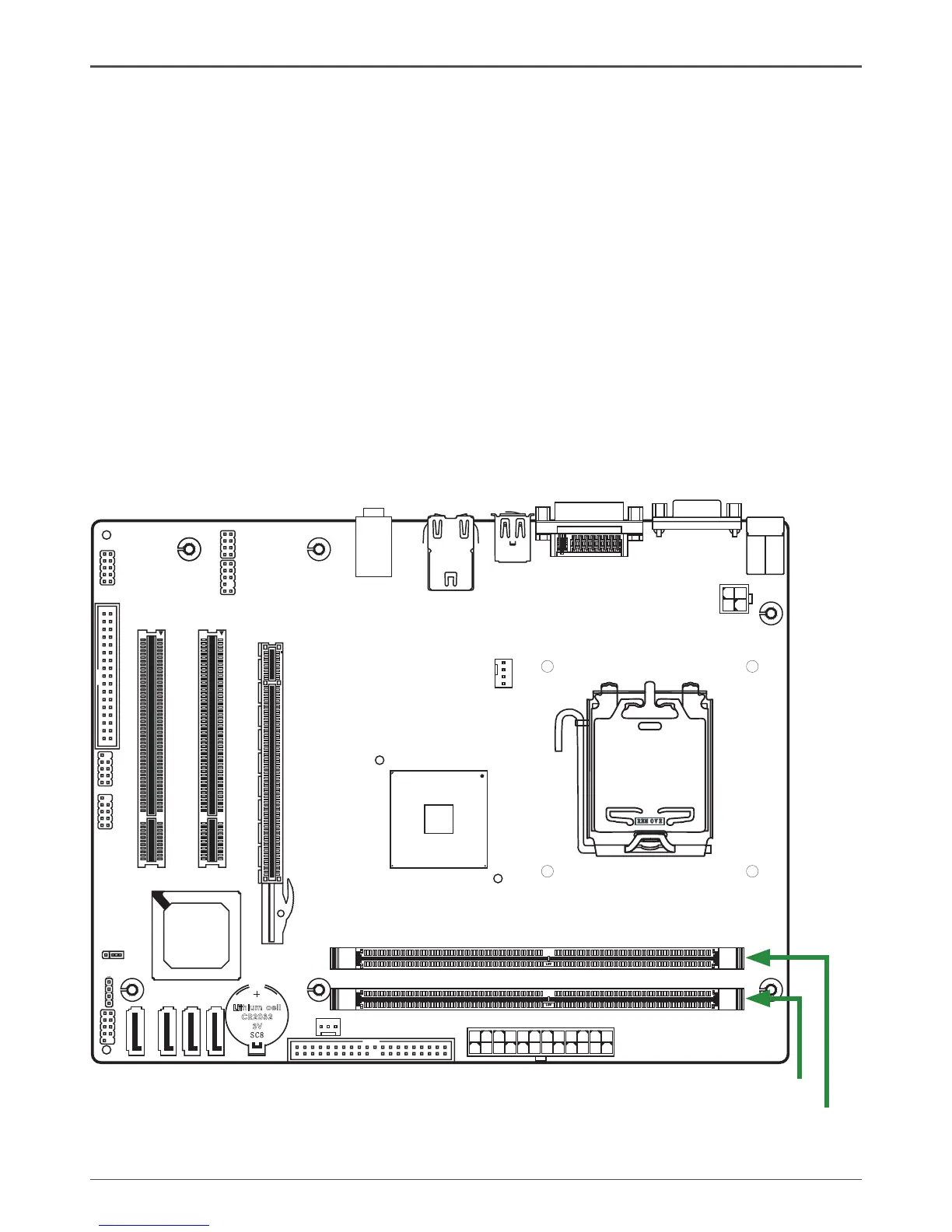

recommendations for installing memory. (See Figure1 for the location of the memory
slots.)
q One DIMM: You can install the DIMM into any slot,however,slot 1 is preferred.
q Two DIMMs: Install into slots 1 and 2,The idea is to run on dual channel mode.
DDRII-2
DDRII-1
