Intel G31 Motherboard
Motherboard Layout
Figure 1 shows the motherboard and Figures 2 shows the back panel connectors.

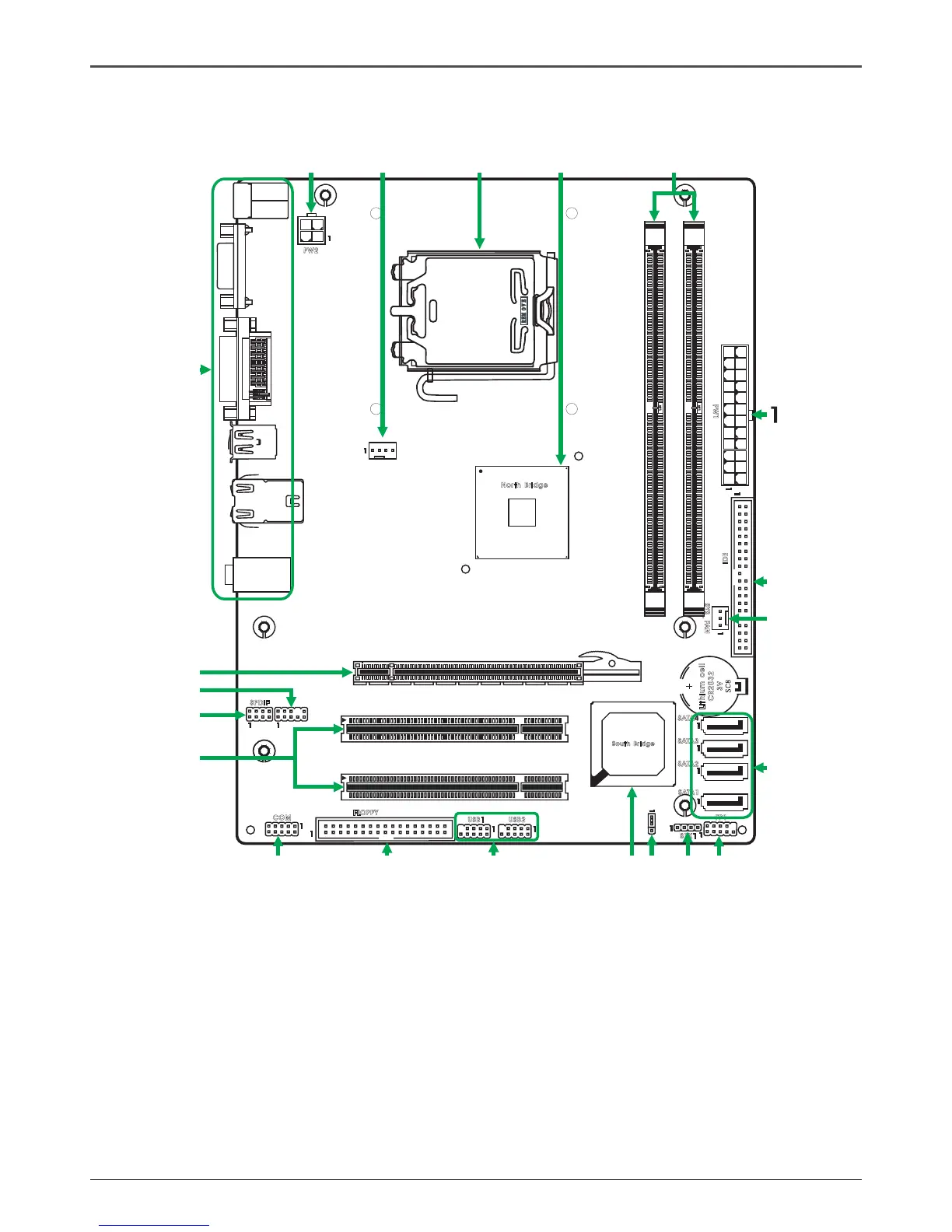

Figure 1. Board Layout
1. 24-pin ATX Power Connector
2. IDE Connector
3. System Fan Connector
4. Serial-ATA (SATA) Connectors
5. Front Panel Header
6. Speaker Header
7. Clear CMOS Jumper
8. South Bridge
9. USB Headers
10. Floppy Disk Drive Connector
11. COM Port Header
12. PCI Slots
13. SPDIF-Out Header
14. Front Audio Header
15. PCI Express x16 Slot
16. Backpanel Connectors
17. 4-pin ATX_12V Power Connector
18. CPU Fan Connector
19. CPU Socket
20. North Bridge
21. DDRII DIMM Sockets
120
240
121
LO
TES
R E O EVM
Lithium
cel
l
CR2032
3V
SC 8
120
240
121
North Bridge
South Bridge
F Audio_
PW
2
SYS_
FA
N
PW
1
S
ATA
1
SPDIF
COM
FP1
SPK1
USB2USB1
ID
E
JP1
S
ATA
2
S
ATA
3
S
ATA
4
FLOPPY
US
B
PCI2
PCI1
PCIE1
DDRII1
KB1
DDRII2
CUP FAN_
SD1
DV
I V
GA
/
VGA
HDM
I
/
US
B L
AN
_
12
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17 18
19
20
21
