Rear Panel
1. PS/2 Mouse Port
2. PS/2 Keyboard Port
3. VGA/HDMI Connector(Optional)
4. DVI/VGA Connector(Optional)
5. USB Port
6. Port 2-Channel 4-Channel 6-Channe
Blue Line-In Rear Speaker Out Rear Speaker Out
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/Subwoofer
7. LAN Connector
Lan Port with LEDs to indicate status.
· Yellow/Light Up/Blink = 10 Mbps/Link/Activity
· Yellow and Green/Light Up/Blink = 100 Mbps/link/Activity
8. Port 2-Channel 4-Channel 6-Channel 8-Channel
Blue Line-In Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange -- -- Center/Subwoofer Center/Subwoofer
Black -- Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey -- -- -- Side Speaker Out

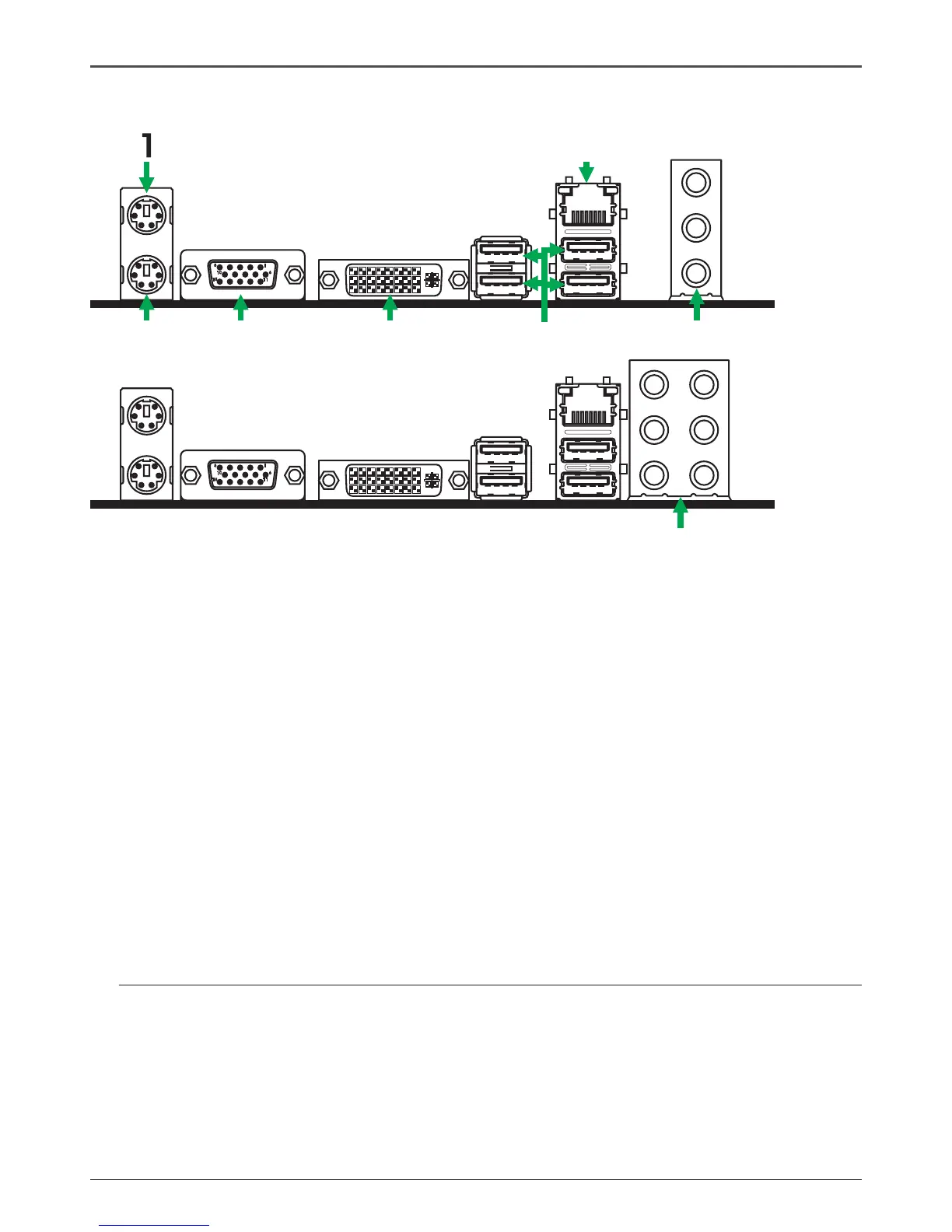

Figure 2: Backpanel connectors
6
11
5
10
15
2
3
4
5
6
7
6
11
5
10
15
8
