46

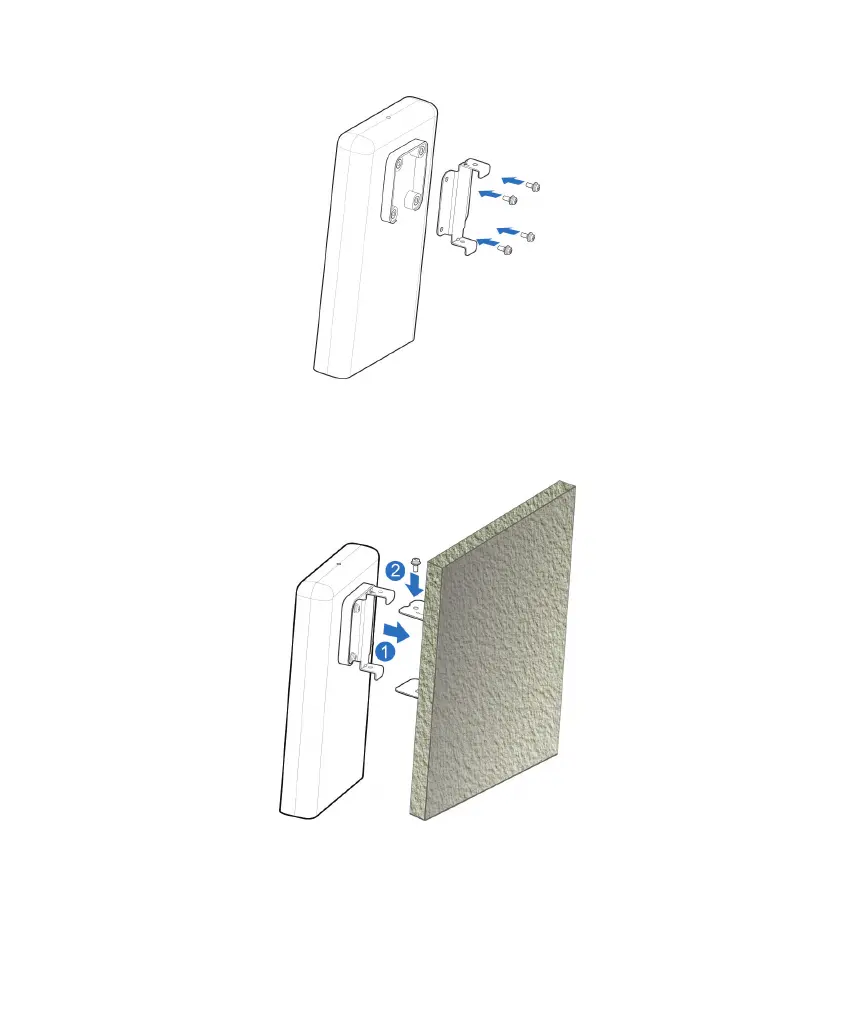

3. Use four M3 crosshead screws to install the backplane on the device.
4. Firstly, fasten the backplane to the installed bracket through the upper and
lower slots, and align the hole on the backplane with the hole on the bracket.
Secondly, use one M3 crosshead screw to install the MC889 on the bracket.
