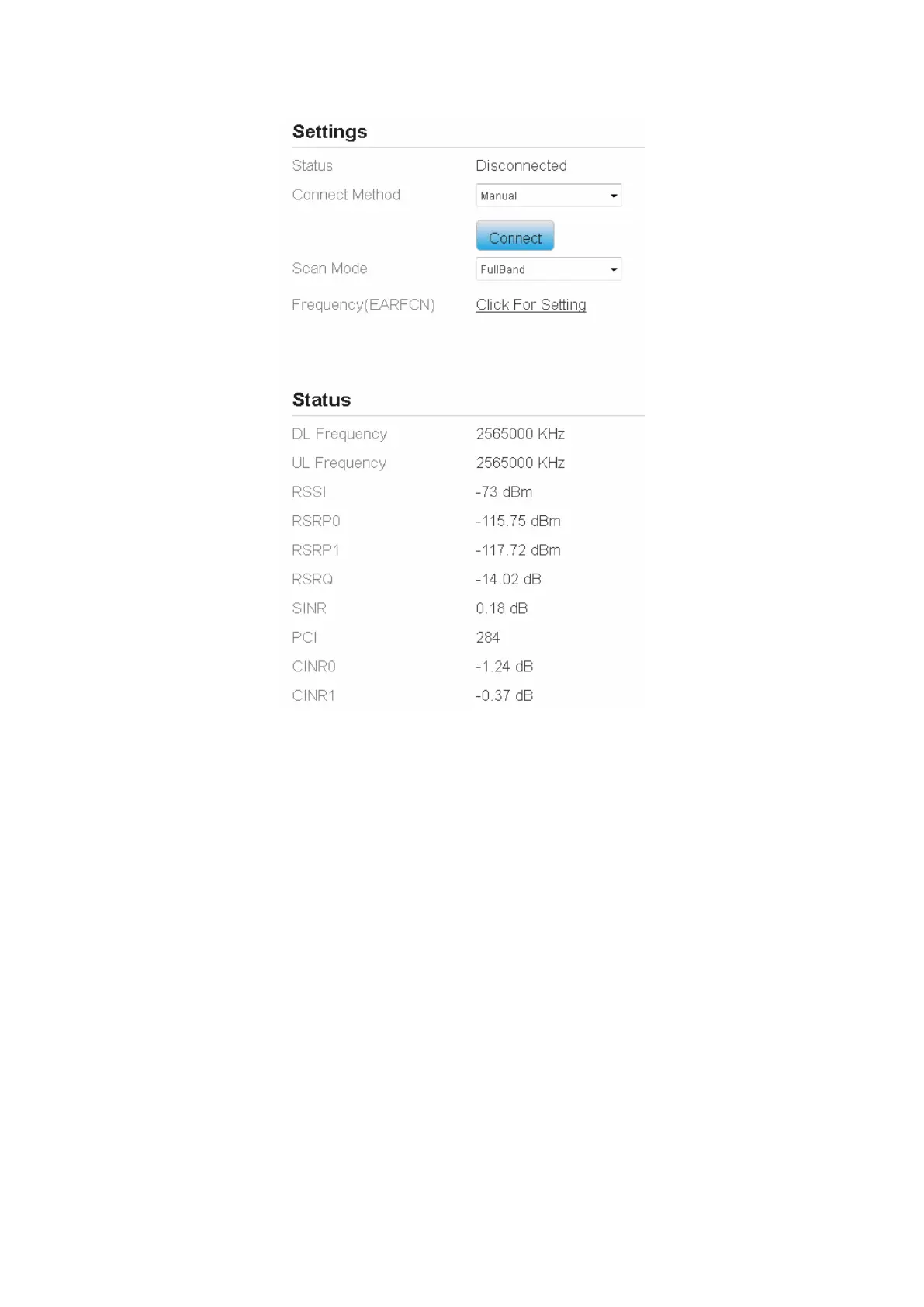

Figure 3-5
3.3 APN Management
3.3.1 APN Settings in NAT mode
To set and manage APN in NAT mode, perform the following steps:
1. Choose Network>APN Management.
2. In the APN Management area, you can set the APN.
3. Choose a APN number which you want to set.
4. In the APN Setting area you can set the APN parameters, such as enable or disable the apn,
apn name, username, password and so on.
5. If you want set a APN as default gateway, you should check that is enabled.
6. Select a APN type from the drop-down list, such as VoIP, TR069 or VoIP+TR069.
7. Click Submit. As shown in Figure 3-6.
