Figure 3-6
3.3.2 APN Settings in BRIDGE mode
If you want to set the CPE work in bridge mode, please set and manage APN performing the
following steps:
1. Choose Network>WAN Settings.
2. Set the network mode as BRIDGE.
3. Choose Network> APN Management.
4. In the APN Management area, you can set the APN.
5. Choose a APN number which you want to set.
6. In the APN Settings area, set the mode as Bridge.
7. Set the APN parameters, such as enable or disable the APN, APN name, username, password
and so on.
8. In the LAN Port Settings list, select a LAN port you want to use as bridge mode.

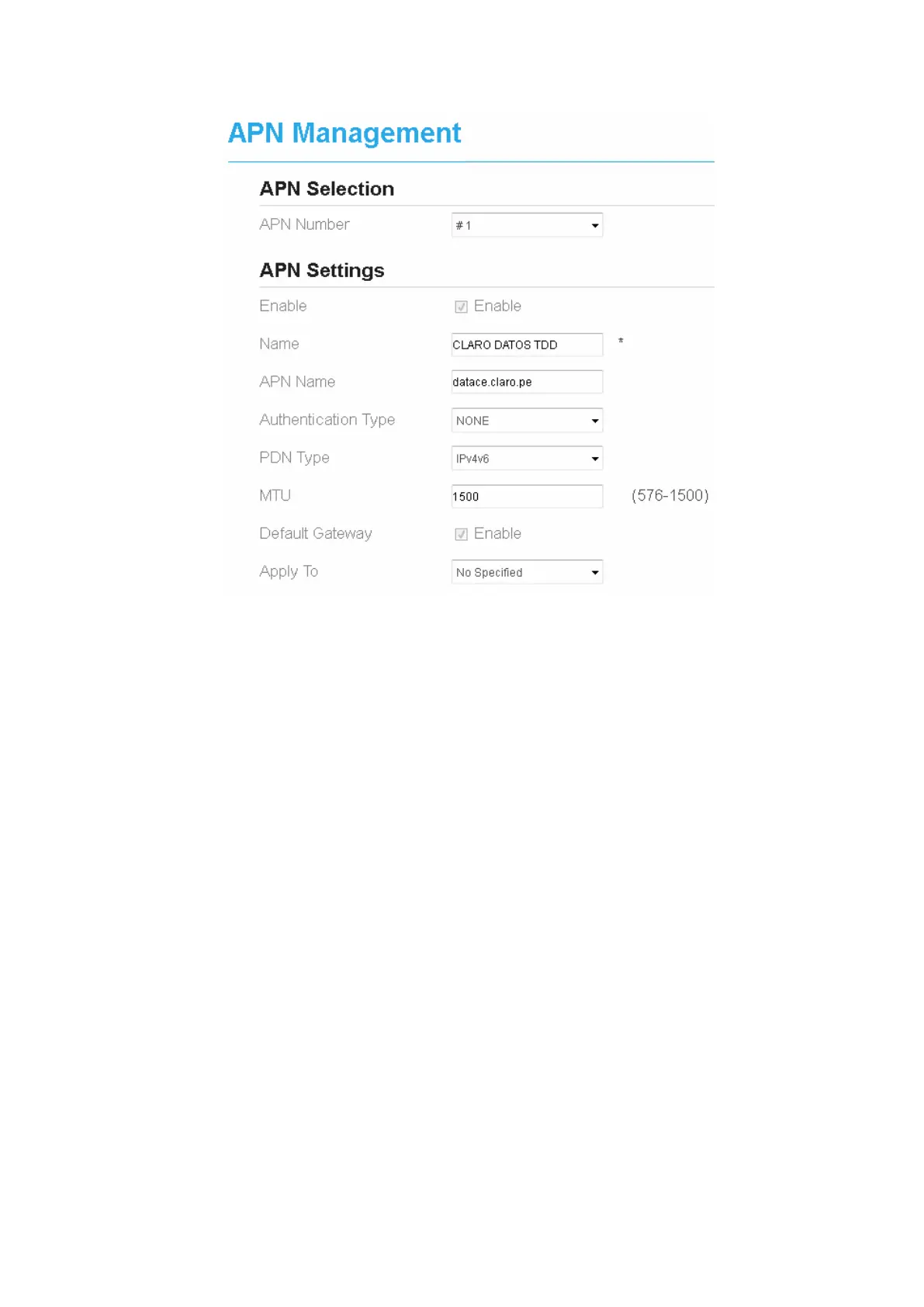

9. Click Submit. As shown in Figure 3-7.
