Zte ZXR10 5250-28SM - Figure 6-18 Cluster Management Network

ZXR105250SeriesCongurationGuide

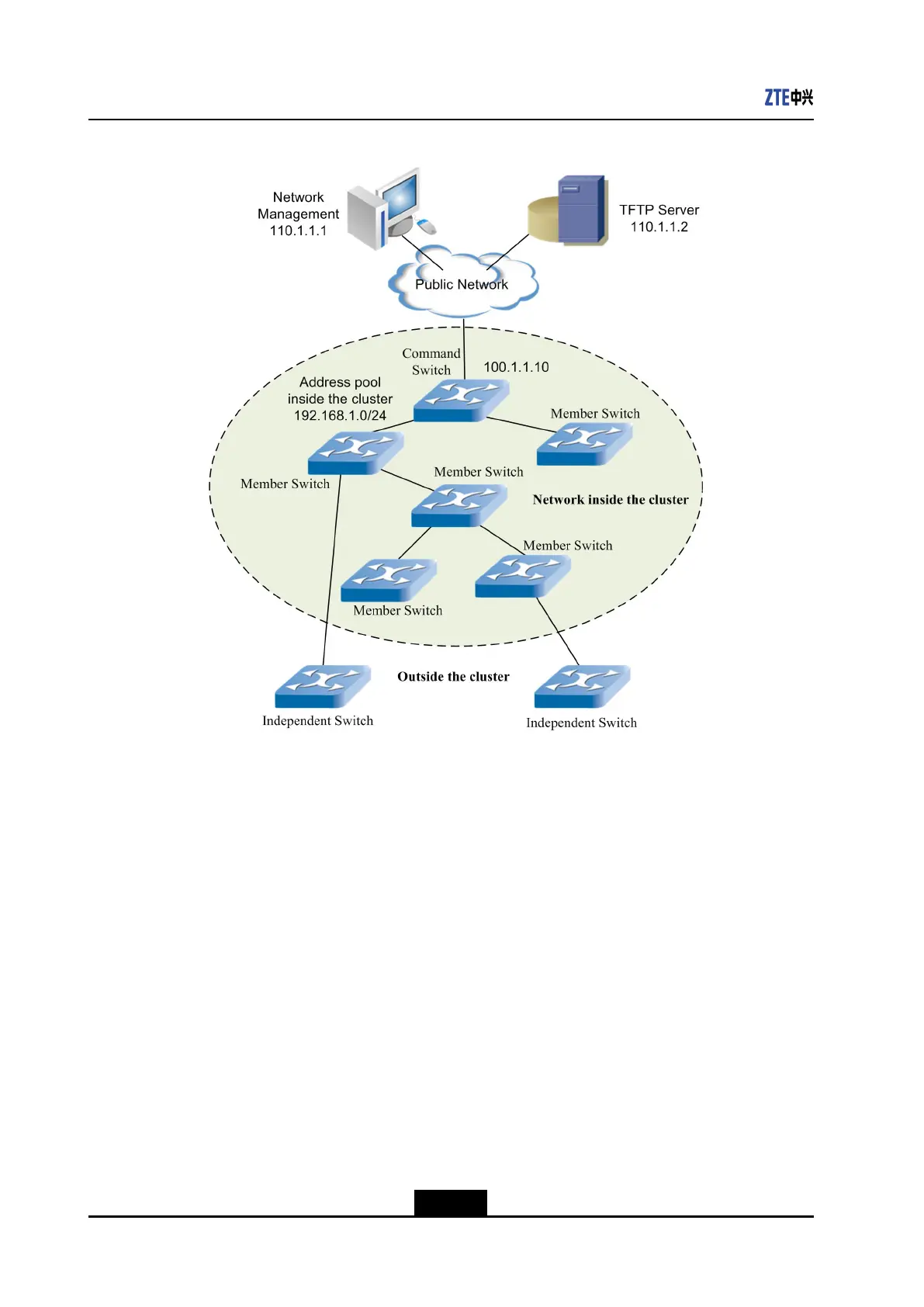

Figure6-18ClusterManagementNetwork
lCongurationProcedure
1.CongurethepublicnetworkIPaddressofthecommandswitchandthegateway.
zte(cfg)#setvlan2525enable
zte(cfg)#setvlan2525addport1-24tag
zte(cfg)#configrouter
zte(cfg-router)#setipport25ipaddress100.1.1.10/24
zte(cfg-router)#setipport25vlan2525
zte(cfg-router)#setipport25enable
zte(cfg-router)#iproute0.0.0.0/0100.1.1.1
2.Createaclusteronlayer-3port1ofthecommandswitchandVLAN1(default
VLAN).
zte(cfg)#configgroup
zte(cfg-group)#setgroupcommanderipport1
Cmdr.zte(cfg-group)#ztpstart
Cmdr.zte(cfg-group)#showztpdevice
Lastcollectionvlan:1
Lastcollectiontime:210ms
IdMacAddressHopRoleHostNamePlatform
