13

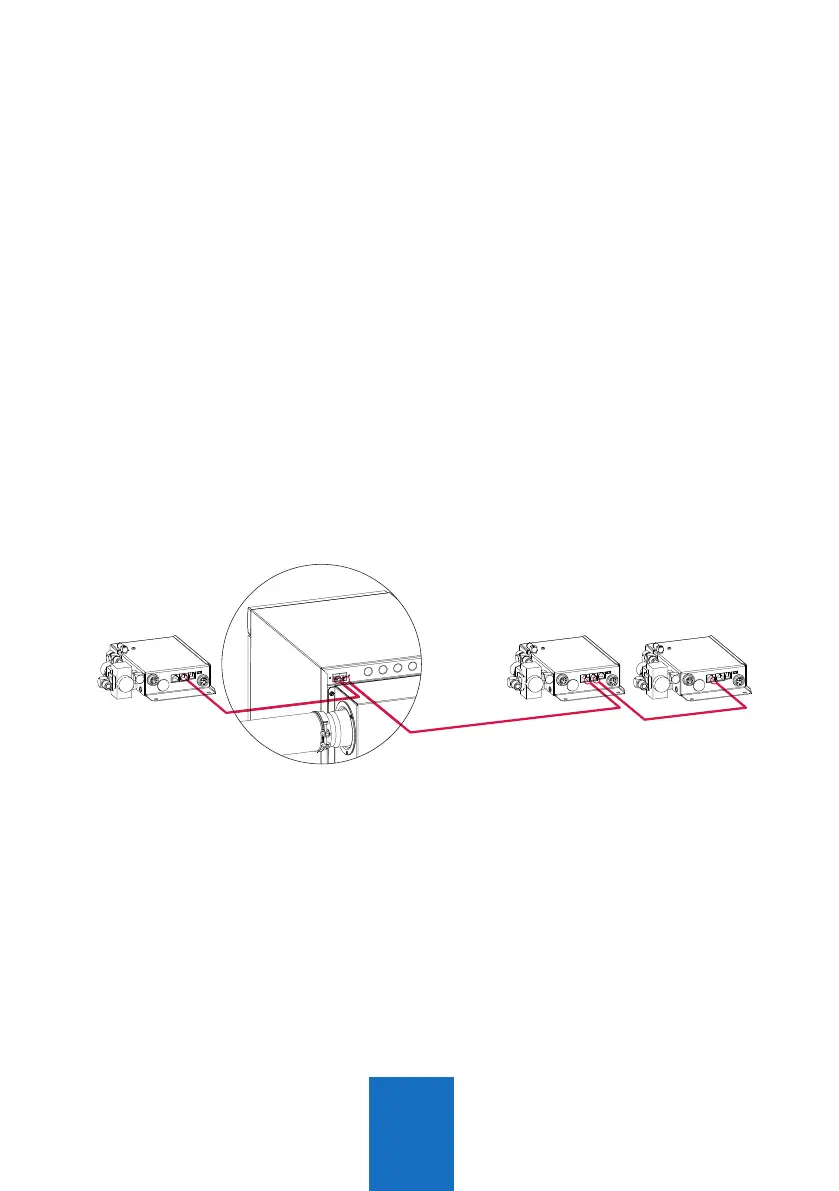

Fig. 14:
1.4.3 Connecting the control units
Q The AP601 port openers must be connec-
ted to the suction unit via a data bus (Fig.14).
Q Therefore use the 3m network cable,
which comes with the AP601.
Q The AP601 is equipped with two RJ45
network sockets, which are used for
interconnection (daisy chaining).
Q The suction unit is also equipped with two
RJ45 network sockets, which only have to
be used both, if there are workstations on
both sides of the suction unit.
It is recommended to route the network
cable parallel to the suction line.
Q If the distance between two neighbouring
AP601 or between an AP601 and the suc-
tion unit is greater than 3m, longer network
cables are required, which are also available
from the Zubler accessory list.
Length Article number
5m 822/0661
10m 822/0662
Q For further information, please refer to the
schematic illustration on page 11 or the
detailed instructions for the AP601 port
opener.
