15
2.

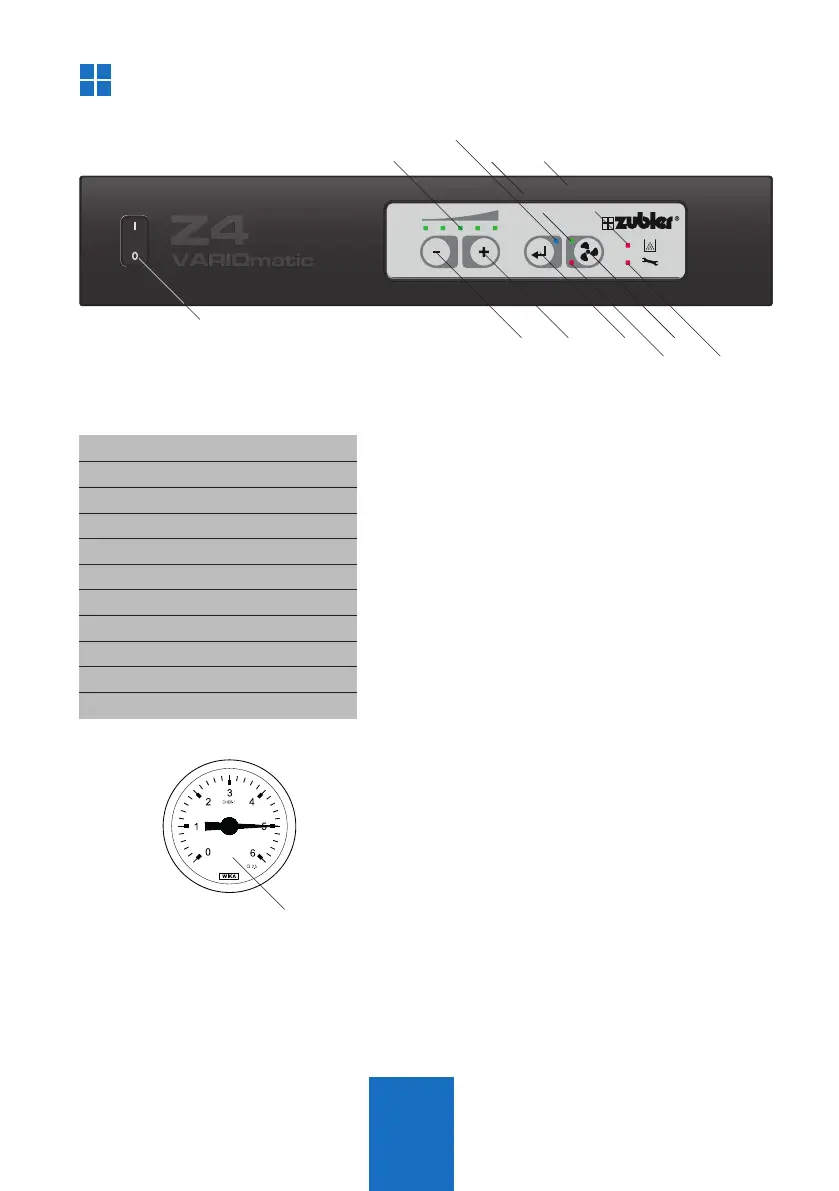

T1 T2 T3 T4
L6
L4
L5
29
L2
L3L1
52
L1 LED Vacuum level
L2 LED Bluetooth
L3 LED “ON”
L4 LED Dust container/Filter
L5 LED Service
L6 LED Central vacuum mode
T1 minus-(-)
T2 plus-(+)
T3 Enter
T4 ON / OFF
29 Main switch
Q Switch on the main switch (29).
Q At first, the suction unit opens all
connected port openers AP601 one after
the other for a few seconds to clean the
hoses and pipes from dust deposits with
maximum suction power.
Q After the hoses have been cleaned, the
filters are cleaned with 6 successive blasts
of compressed air.
Please pay attention to this function
and check that the pressure gauge (52)
reaches 5 bar again after each compressed
air blast Fig.17 (Fig.1, page 7).
Q The suction system is ready when the red
LEDs L4 and L5 stop flashing.
Q Settings of the individual suction points
can be made in accordance with the
operating instructions for the AP601.
- Adjustment of the sensitivity for
automatic operation.
- Automatic pipe cleaning for each main
pipe run
- Set the suction level, sequence and
names for the workstations.
Functions
Fig. 16
2.1 Control unit
2.2 Commissioning
Fig. 17
