9
1.3.1 Suction
Q The suction hose (socket/socket 45°)
Fig. 6 is connected with the angled side
to the suction port of the suction unit.
Furthermore it ensures a correct pipe
installation (pipe pointing to suction)
Article number: 752/3480
one-sided
Q If all workstations are on one side of
the suction system, one of the suction
ports can be closed with a closure cap.
(preinstalled on bottom port 49)

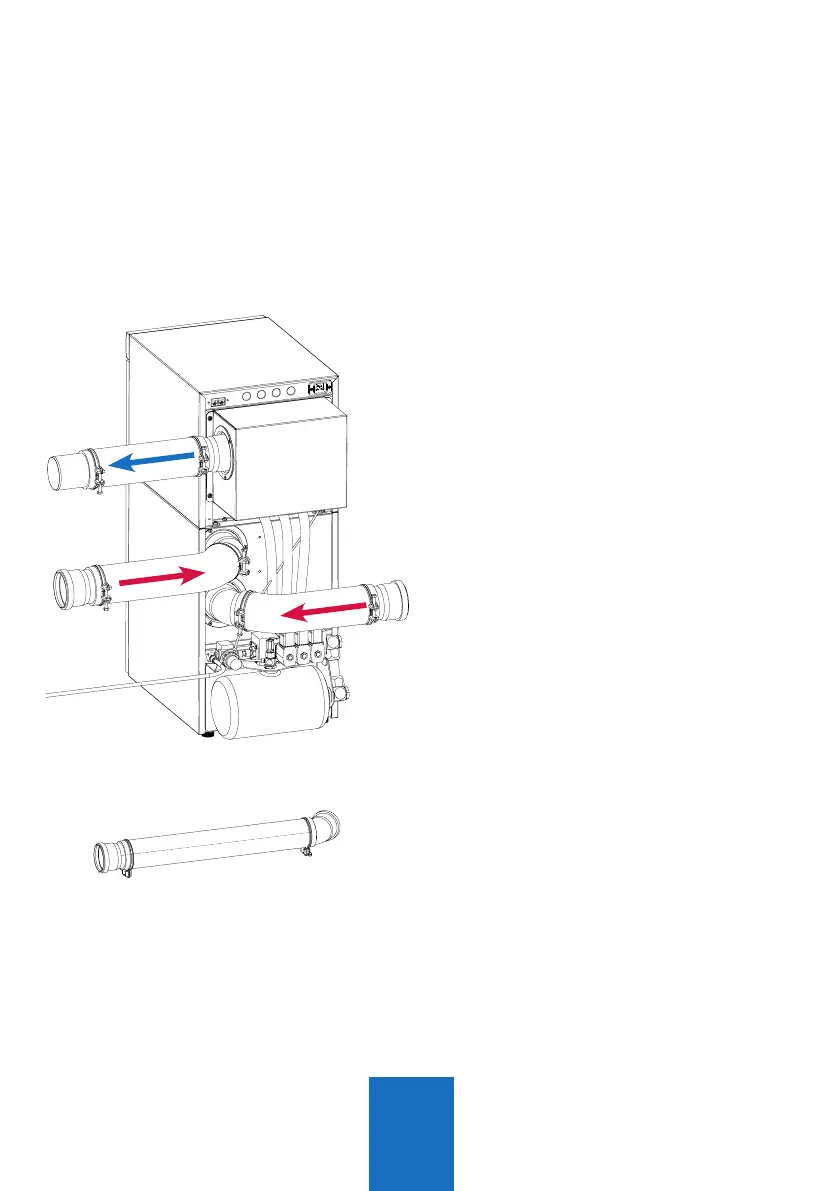

Q If the suction hose must be routed away
within the construction depth of the
suction system, the connection must be
made according to the arrangement in Fig.
5. If necessary, swap the closure cap to
the other port.
two-sided
Q If there are workstations on both sides
of the suction system, both suction
ports (48/49) must be used. Within the
construction depth of the extraction
system, a suction hose leading to the
left can only be connected to the bottom
suction port.
Q An additional suction hose, Fig. 6, item
number 752/3480 is required.
1.3. Connecting the suction unit
Fig. 5:
Fig. 6
