Set up
Q Pull down the Clamping lever (38) to
lower the dirt container (31), check if
the container is empty and there are no
accessories in it.
Q Place the suction unit on a level surface.
If necessary, an alignment is possible by
adjusting the height of the threaded feet
up to max. 8mm. see Fig. 3
Q The housing of the suction unit must
not touch furniture parts, to avoid a
transmission of vibrations and noise
amplification.
27 Connectors AP601
48 Suction port, top
49
Suction port, bottom
53 Exhaust air Motor cooling
54 Mains connector
55 Motor silencer
56 Exhaust port
57
Compressed air connector 8mm
58 Pressure reducer
59 Compressed air tank
Backside accessibility
Q Ensure that the connections are easily
accessible from the backside or from
the sides, especially the right-side of the
suction unit. Partition walls of furniture
units must be recessed from a depth of
450 mm to the rear, see Fig. 4.
Q Ensure that it is possible to pull out
the applliance to the front. This is
necessary for servicing the motor and the
compressed air system.
Q The suction and exhaust air lines can be
connected or disconnected much easier
with the enclosed Ø75mm hose adapters.
A direct connection with pipe is not
recommended and is only possible if the
suction unit is completely accessible.

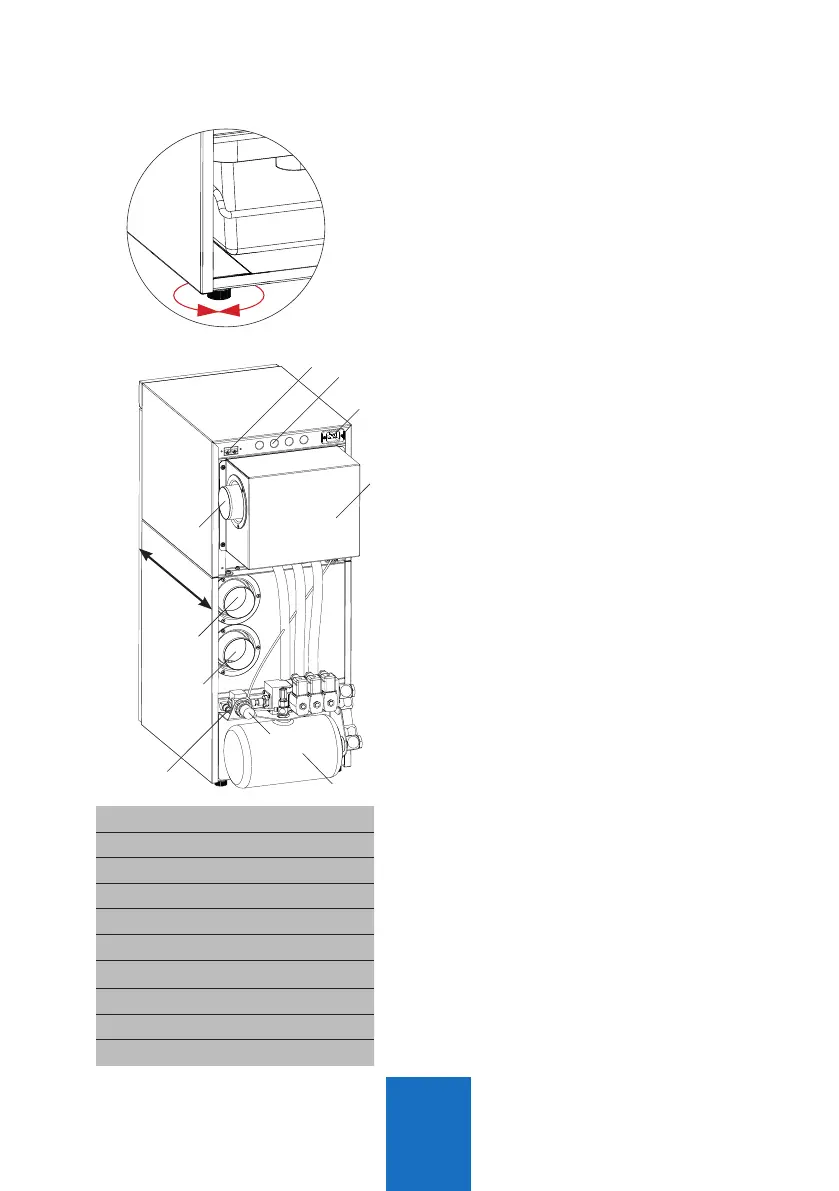

Fig. 4:
Fig. 3:
