7
u
v
w
x
19
18
52
51
20
38
31
17

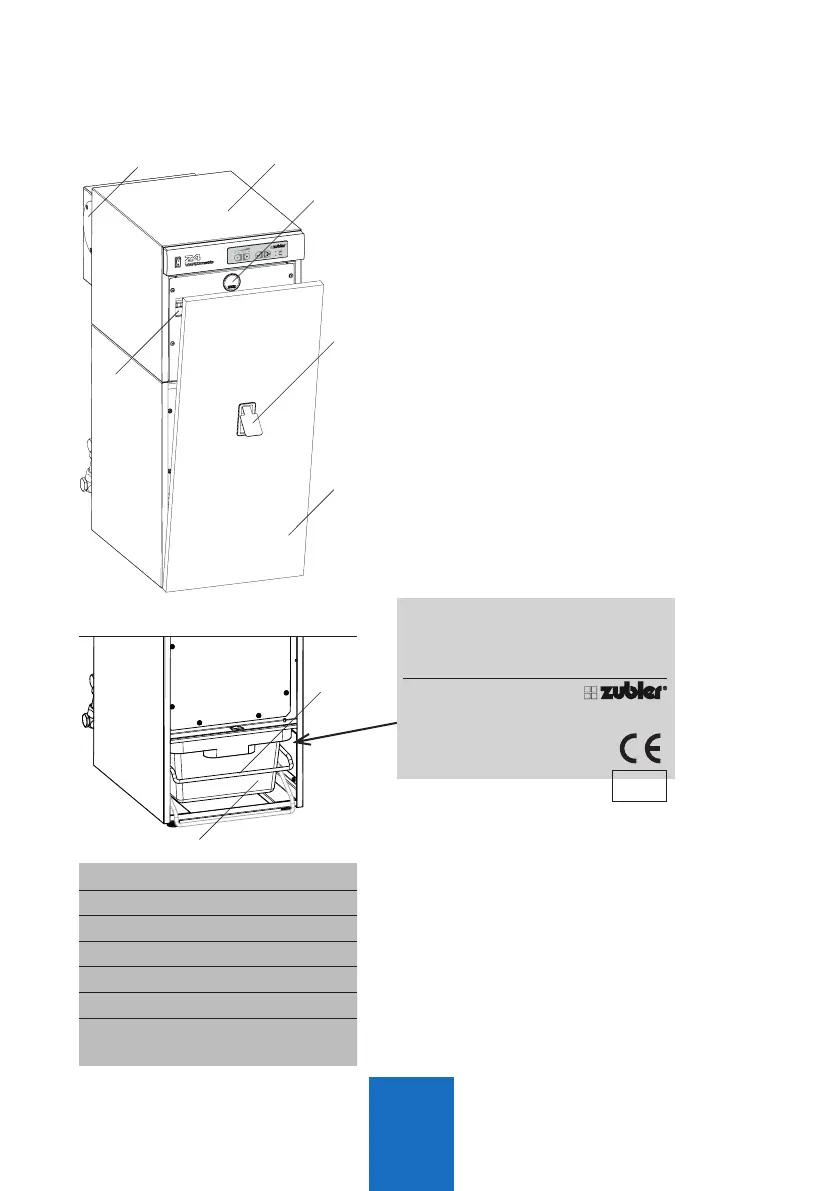

Door removal
Transporting and positioning the suction unit is
much easier with the door (18) removed. The
door can be removed as shown in Fig.1:
u lift the latch of closure (19)
v rotate the latch by 90°.
w swivel the door (18) approx. 10° to the
front.
x now you can remove the door (18)
completely by lifting it slightly.
Fig. 1
Fig. 2
ZUBLER Gerätebau GmbH
Buchbrunnenweg 26
D-89081 Ulm
Tel. + 49(0)731 1452-0 / www.zubler.de
Absauganlage
Z4
Spannung 230V
Gesamtleistung max. 1800W
Z4 VARIOmatic 00-11111-22
Made in
Germany
17 Exhaust cover
18 Door
19 Closure
31 Dust container
38 Clamping lever
51 Automatic circuit breaker
52
Pressure gauge
Compressed air
Q For queries, service, spare parts and
accessories, you will find the serial number
on the inside of the suction unit, at the
front next to the dust container (31).
Type plate, serial number
1.2. Setting up the suction unit
