5-4
For how to configure the access service on the repeater, refer to Wireless Service Configuration
Example
. You can strictly follow the steps in Wireless Service Configuration Example to configure the
access service on the repeater.

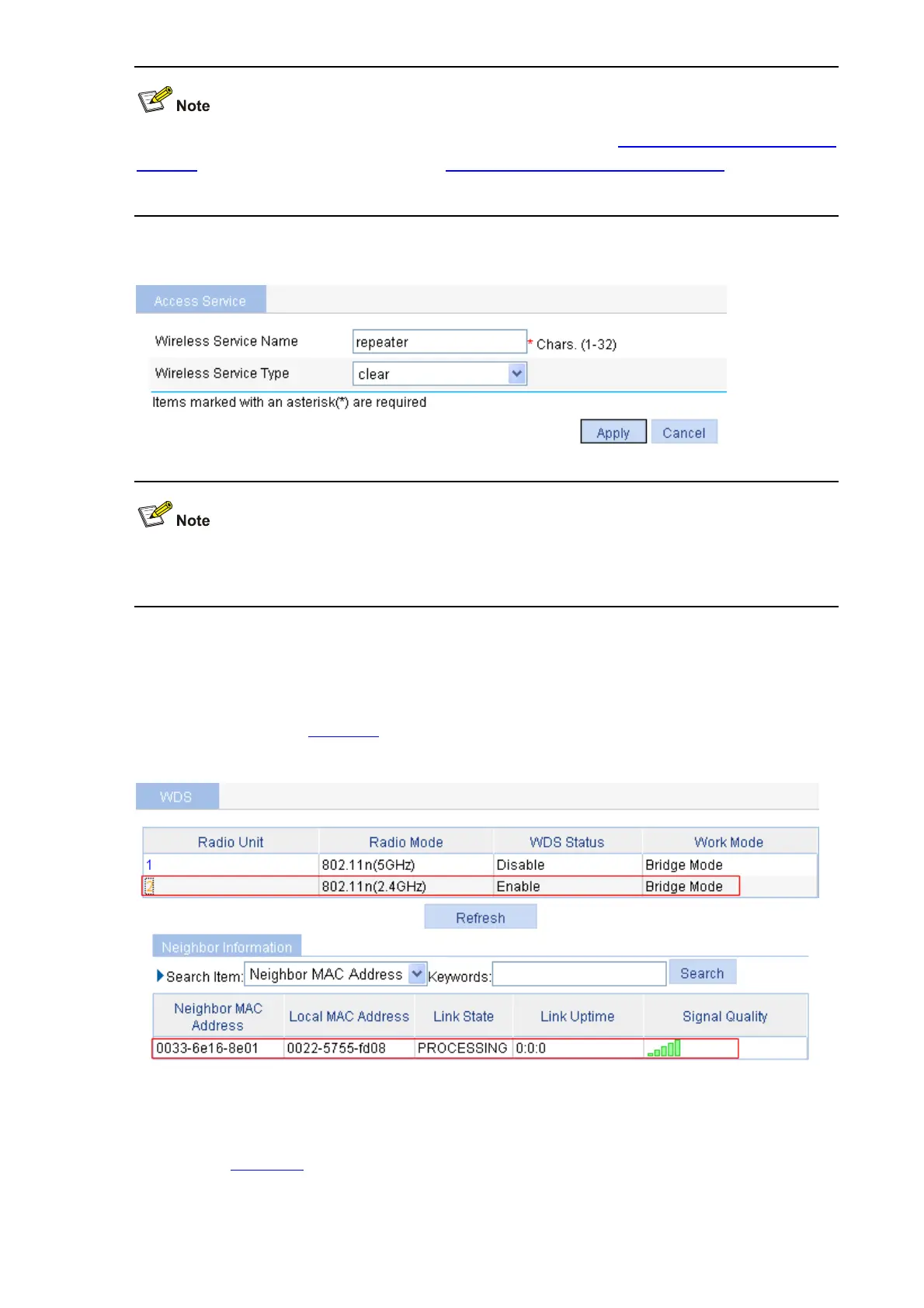

Figure 5-6 Configure the access service
When configuring access service on the repeater, make sure that the radio mode of the repeater is the
same as that of WDS.
Configuration verification
# Verify that the WDS link has been established for the repeater.
Select Summary > WDS from the navigation tree to enter the WDS page displaying the WDS
information, as shown in
Figure 5-7. Click radio unit 2 to see the neighbor information.
Figure 5-7 The page displaying WDS information
# Verify that the repeater mode has been configured successfully.
Select Summary > Radio from the navigation tree, and the page displaying radio information appears,
as shown in
Figure 5-8. On the page, you can see that the 802.11n (2.4GHz) radio mode on the
repeater provides both access and mesh services, and one user has accessed the wireless network
through the repeater.
