Pannoramic 1000 1.2 - User’s Guide 8 Packaging instructions for Pannoramic
1000

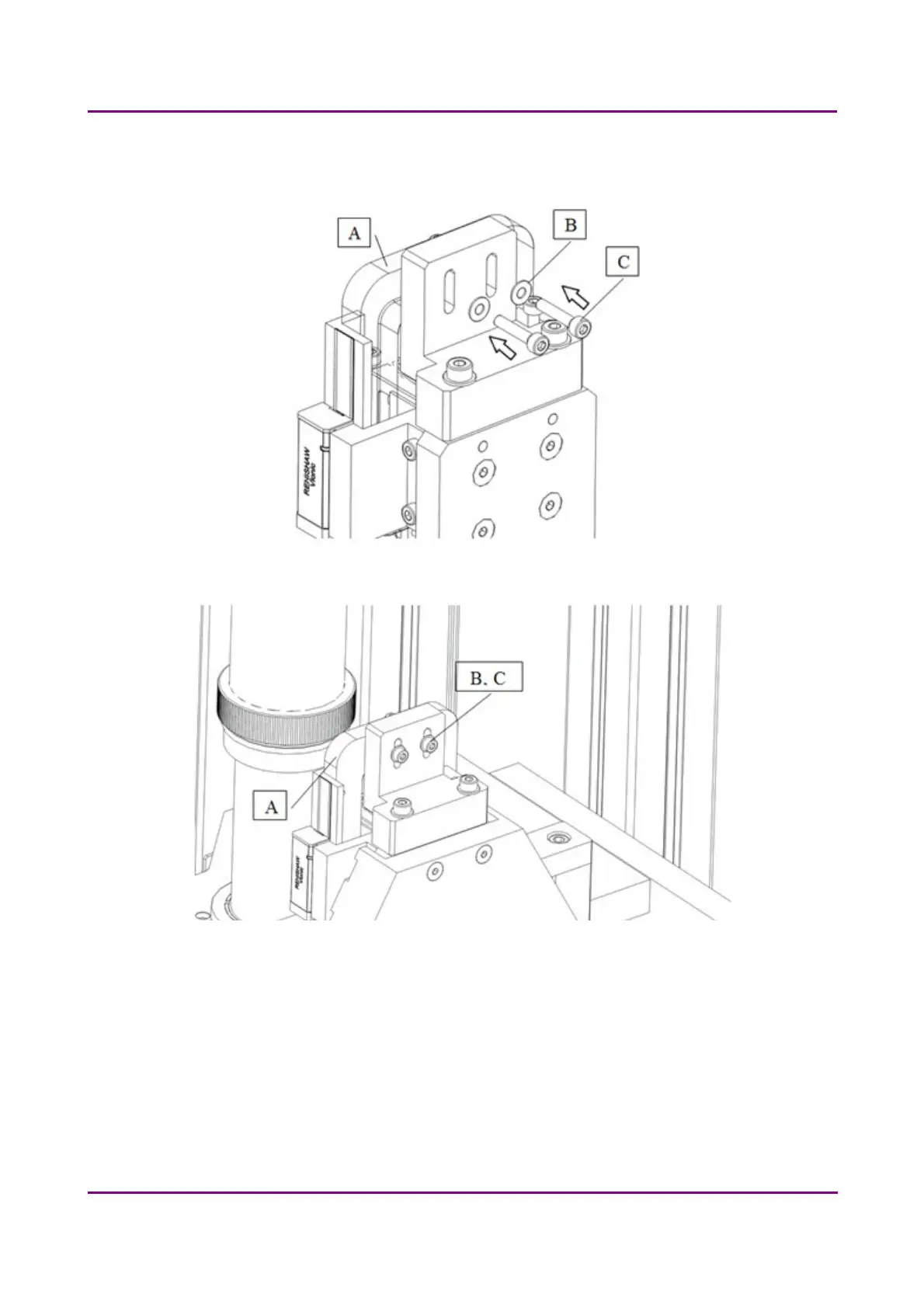

Mount the focus unit (A) with M3 spacers (B) and M3x16 socket head cap screws (C).
Use a 2,5 mm hexagon wrench tool. (Figure 36-37)
Figure 36 – Mount focus unit
Figure 37 – Mount focus unit
