Pannoramic 1000 1.2 - User’s Guide 8 Packaging instructions for Pannoramic
1000
(c) X-Y stage, slide holder
The stage should be in the transport position.
Mount the transport fix (A) (shaped like a bridge) above the stage with M5x30 socket
head cap screws (B). Use a 4 mm hexagon wrench tool. Pay attention to the sponges (C)
at the bottom of the transport fix. They should be above the 2-2 screws (D) at the left
and right side of the stage next to the extension springs. (Figure 38-42)

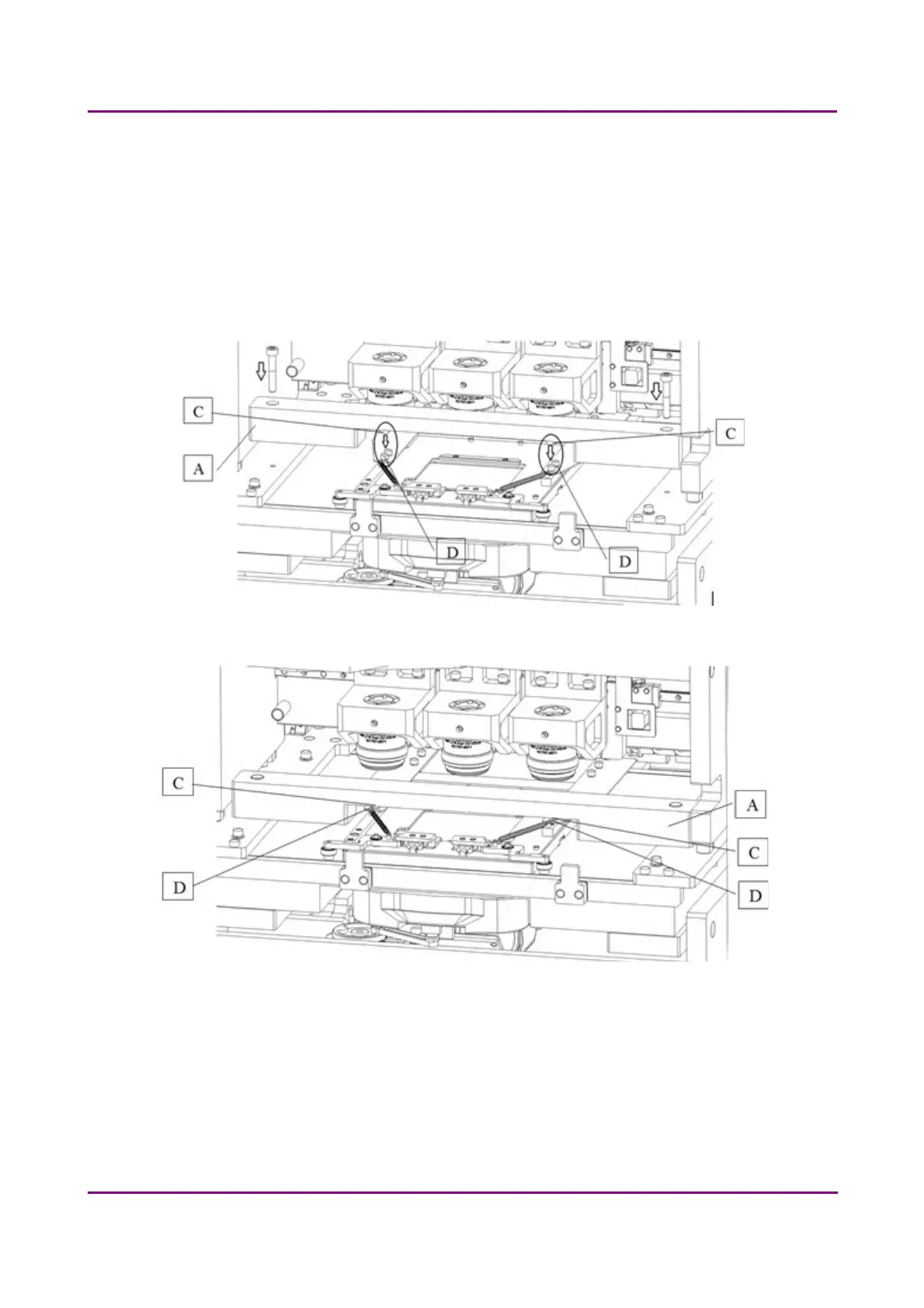

Figure 38 – Mount fixing to stage
Figure 39 – Mount fixing to stage
March 19, 2019 - Rev. 2
3DHISTECH Ltd. 61(78)
