3M Dynatel 2273ME Series User Manual

78-8130-6151-8-E 13

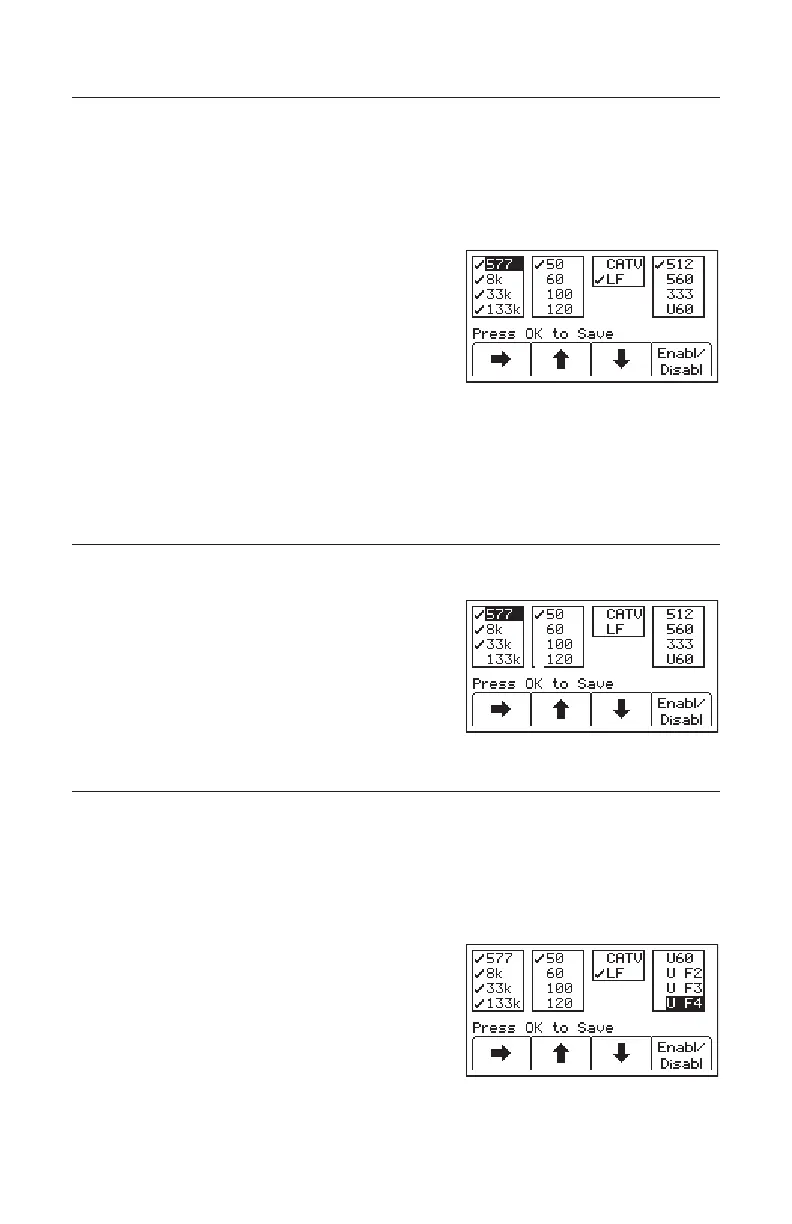

Enabling/Disabling Frequencies
MENU [6] + More>>[SK] + Setup [SK] + + More» [SK] + Locate Freq [SK]
The user can select the frequencies that the receiver will detect. All the available
frequencies are listed in four groups (Left to Right: Active, Power, Passive, and
Auxiliary). The Auxiliary group also contains the User Defined Frequencies. (See
Creating User Defined Frequencies.)
1. Press the right arrow [SK] to move the highlight
bar to the section of frequencies to enable, or
disable.
2. Press the up/down arrows [SK] to highlight the
specific frequency.
3. Press Enabl/Disabl [SK]. (Enable denoted by 3)
4. Repeat steps 2 & 3 to enable/disable other
frequencies.
5. Press OK [5] to save.
Selecting External Jack Frequencies (Tone Frequencies)
MENU [6] + More>>[SK] + Setup [SK] + + More» [SK] + Tone Freq [SK]
A coupler can be plugged into the external jack
of the receiver and used to identify cables. (See
Other Applications: Cable Identification.) The
same procedure as above is followed for selecting
frequencies that can be detected by the external jack
found on the bottom of the receiver.
Creating User Defined Frequencies
MENU [6] + More>>[SK] + Setup [SK] + + More» [SK] + Locate Freq [SK]
There are four user defined frequencies available on the receiver. (These frequencies
must be between 50 Hz and 999 Hz.) These frequencies are found in the column on
the far right of the Locate Freq screen (Auxiliary frequencies). These frequencies, once
programmed, will appear in the Locate mode under the Aux [SK] frequency list.
To program the user defined frequencies press the
right arrow [SK] to highlight the Auxiliary group
of frequencies. Press the up/down arrows [SK]
to highlight the user frequency to program. Press
Enabl/Disabl [SK].
