Menu Screens
Main Menu

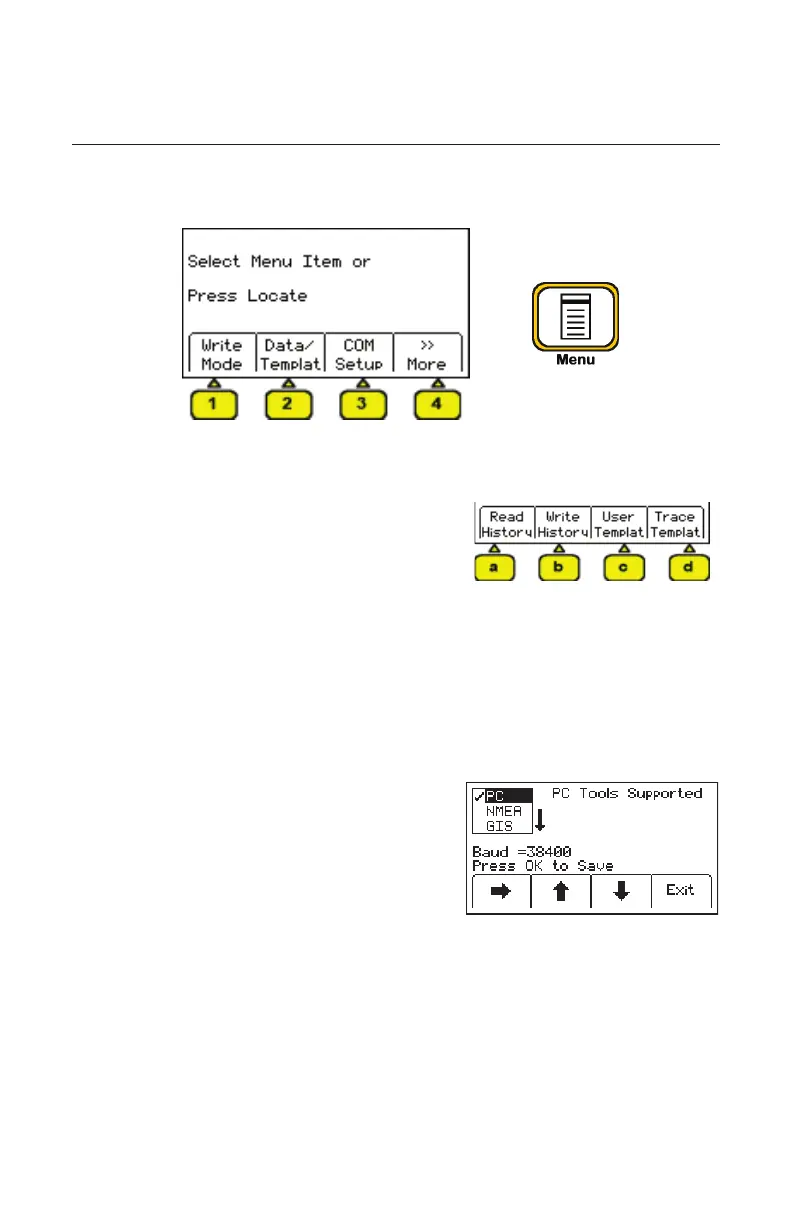

When the Menu [6] button is pressed, the Main Menu screen appears.
The function appears on the screen above each soft key.
1. Write Mode: System used to write information to RFiD Markers
2. Data/Template: Displays marker history and
template creation/selection screens:
a. Read History – 100 memory locations for
Read RFiD Markers
b. Write History – 100 memory locations for
Programmed RFiD Markers
c. User Templates – Create and edit RFiD
templates for RFiD Markers (max =32)
d. Trace Templates – Create and edit
templates used to identify path (max = 5)
3. COM Setup: Displays second level COM
Port setting screen to configure RS232 port
communication with different devices –
a. PC – Receiver will communicate to a
computer
b. NMEA – Port is configured to accept
coordinates from GPS
c. GIS – Port is configured to send RFiD
information or path information to GPS
device and receive coordinates from GPS.
d. PDA – receiver will send RFiD and path
information in ASCII string.
4. More>>: Advances to next menu screen
