12 78-8130-6151-8-E

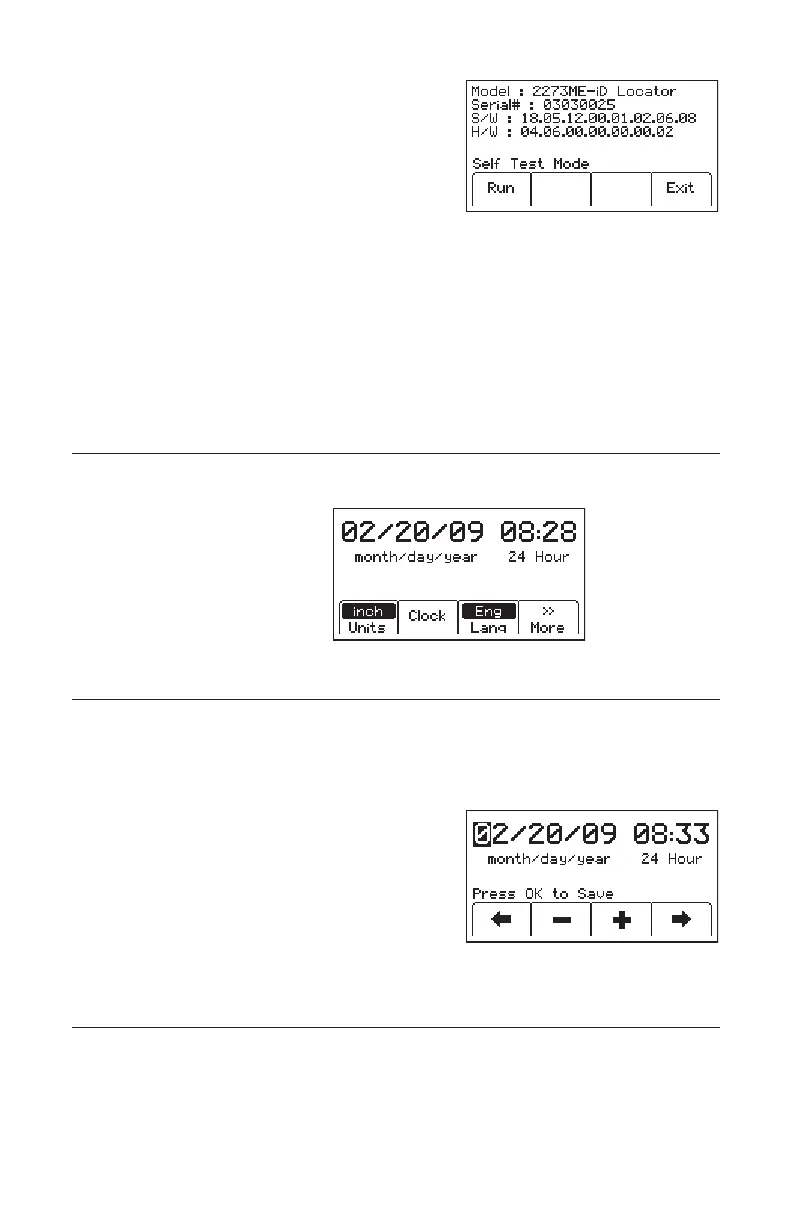

7. Self Test: Displays information about unit and
performs a self check test
8. Help: Offers the user on-screen instructions
Configuring The Receiver
In the setup mode, the units of depth measurement, time, date, and date format can be
set. The receiver can be configured to detect only certain frequencies and/or specific
utility markers. User defined frequencies can be programmed, language of the receiver
can be selected, and tone frequencies set.
Select Depth Units
MENU [6] + More>>[SK] + Setup [SK] + Units [SKToggle]
• Press Units [SK toggle].
• The soft key command
will toggle between inches
(in), centimeters (cm), and
feet/inches (ft-in).
Setting the Receiver Clock
Set the time, date, and date format of the receiver. Depth and Current measurements are
time and date stamped, as well as read write marker information (iD units only).
MENU [6] + More>>[SK] + Setup [SK] +Clock [SK]
• Press the left/right arrow [SK] to highlight the digit
of the date or time to change.
• Press the + or - [SK] to increment or decrement.
• When the date format is highlighted, the format
will toggle between mm/dd/yy and dd/mm/yy.
• Press OK [SK] to save, or Menu [6] to cancel.
Selecting a Language
MENU [6] + More>>[SK] + Setup [SK] + Lang [SKToggle]
The soft key command will cycle through available languages. Alternate languages
can be uploaded to the receiver using the Dynatel
™
PCTools software. (Available for
download at www.3M.com/dynatel.)
