3M Dynatel 2273ME Series User Manual

78-8130-6151-8-E 35

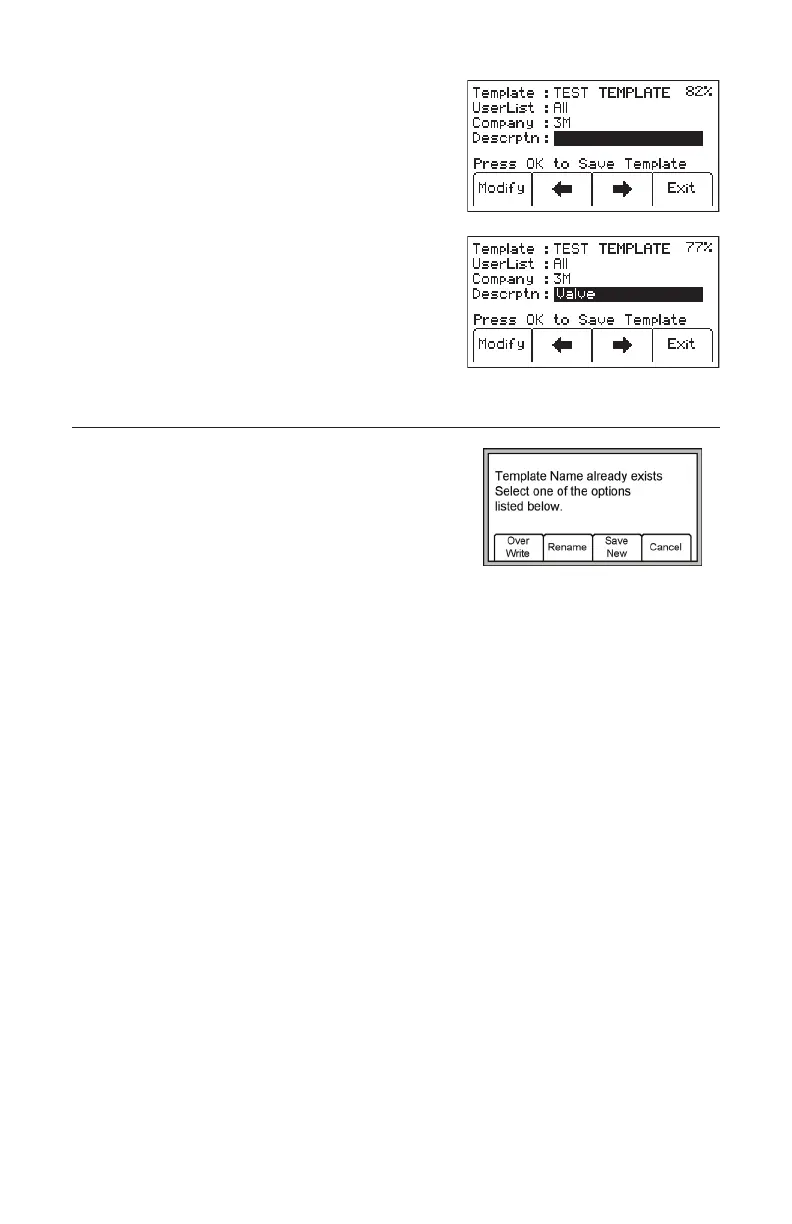

17. Navigate to the next field by pressing the left/
right arrow [SK].
18. Press Modify [SK] to populate the highlighted
field.
Editing Templates
The operator can select an existing template and
make changes to it in the same manner describe in
Creating Templates. The following save screen will
appear.
Over Write: Saves all modifications that have been made to the original template.
Rename: Overwrites the old template with the new name and all modifications. Screen
will return to the template name field. Modify the name of the template and press OK
[5] to save.
Save New: Creates a new template containing all information. Original template remains
unchanged. Screen will return to the template name field. Modify the name of the
template and press OK [5] to save.
Cancel: Clears all modifications made to any unsaved template.
Note: User templates can also be created on a PC using 3M
™
Dynatel
™
PC Tool Kit
software and then downloaded to the receiver via the RS232 port [14] on the unit and
the provided RS232 cable or RS232-to-USB adapter cable.
